Disassembly
27 RS2240003 Rev. 0
To avoid the risk of electrical shock, personal injury or death; disconnect power to oven and discharge capacitors
before following any disassembly procedure.
WARNING

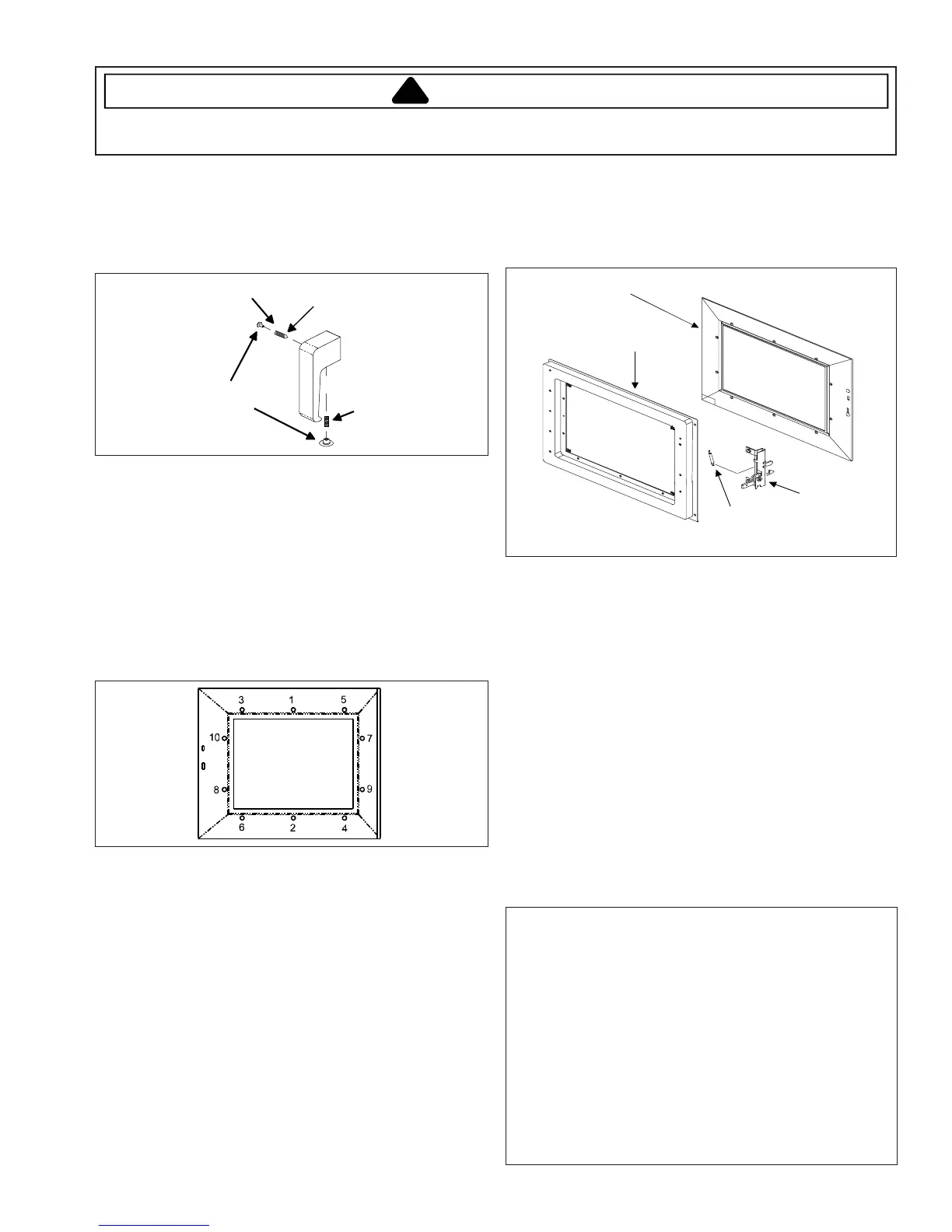

Inner Door Ring Assembly
1. Remove latch handle.
2. Remove outer door assembly.
3. Remove 5 hinge screws securing inner door ring
assembly.
Inner Door / Window Assembly
Door Weldment
Latch
Assemb
Spring
Inner Door Ring Assembly
The door ring assembly consists of the inner door ring,
the inner door panel, and latch assembly. These
components are available only as a complete assembly.
Hinge
1. Remove outer case.
2. Remove door latch handle.
3. Remove outer door assembly.
4. Remove nine hinge mounting screws from hinge
(five on front, 4 on side).
NOTE: Reinstall foam gasket on side of hinge when
reinstalling.
5. When reinstalling hinge mounting screws, keep the
side screws loose and the front screws tight, close
door, press door against oven on the hinge side and
tighten side hinge mounting screws in the sequence
shown below.
Door Handle
Remove door handle by removing plactic plugs to gain
access to set screws. Loosen set screws (3/32 inch
allen screws), one located to the left of the door handle
and one located on the bottom of the door handle.
Pointed tip
Flat t
lastic plugs
NOTE: When replacing door handle, tighten side set
screw first.
NOTE: If set screws are removed, the set screw with
the flat end must be used in the bottom of the
door handle.
Door
1. Remove latch handle.
2. Remove outer door ring assembly from inner door
ring by removing 10 y-drive screws.
NOTE: When reinstalling outer door, tighten screws in
pattern as shown above.
Outer Door
The outer door assembly consists of the outer door,
outer window, and lens retainer. These components are
available only as a complete assembly.
