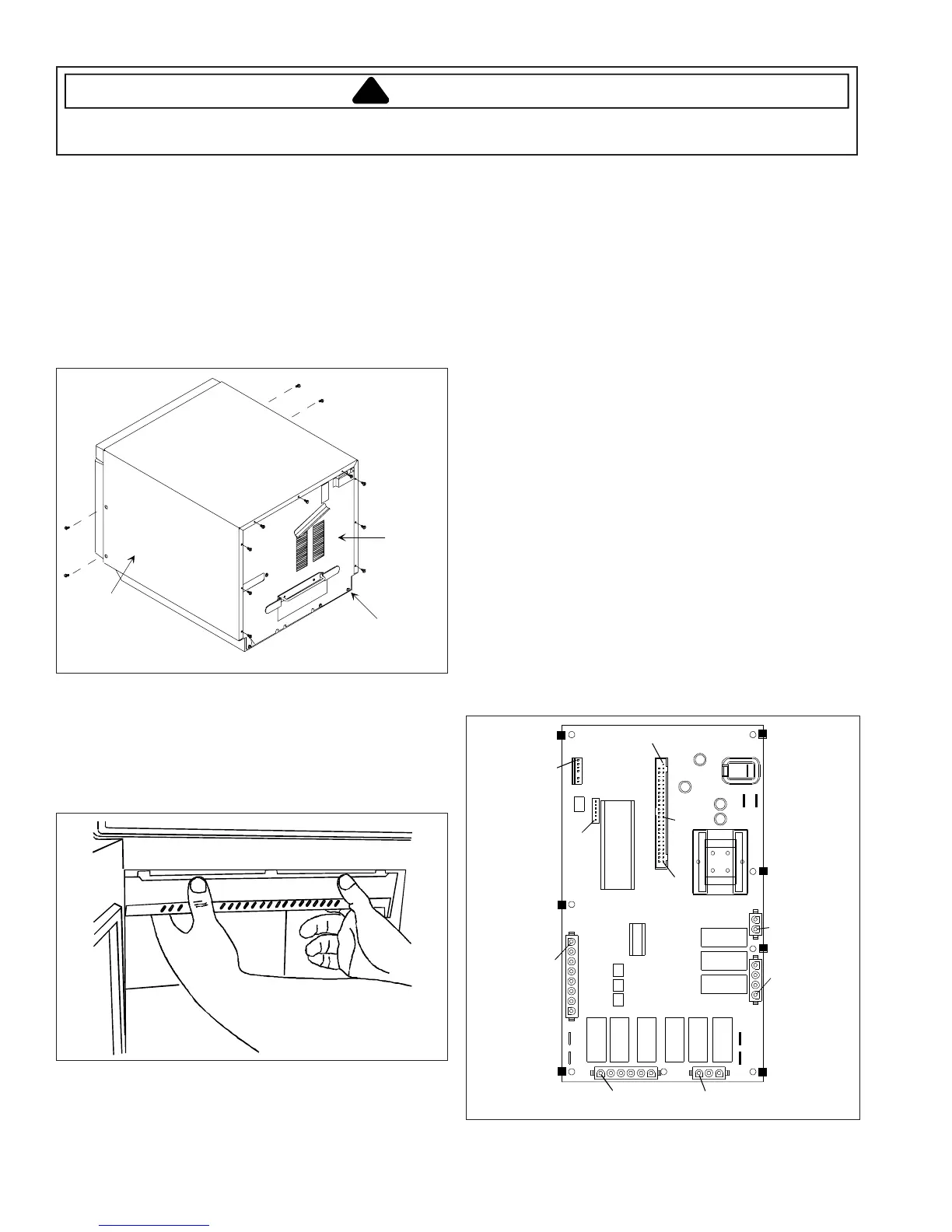

Disassembly
To avoid the risk of electrical shock, personal injury or death; disconnect power to oven and discharge capacitors
before following any disassembly procedure.
RS2240003 Rev. 0 28
!
WARNING
Outer Case
1. Remove screws securing outer case to chassis, see
illustration below.
2. Slide outer case back and lift off.
3. Reassemble outer case in reverse order.
Back Panel
1. Remove outer case.
2. Remove screws securing back panel.
3. Reassemble back panel in reverse order.
O
uter
C
ase
Back
Pane
l
Mountin
g
Screw
Splatter Shield
1. See “Component Location” Figure 2, for location.
2. Place fingers on front of shield, push forward, and
down.
• When removing and replacing splatter shield, be
careful not to bend antenna.
3. Reinstall splatter shield by fitting tabs into slots at top
of oven cavity back. Lift and press front of shield
until shield snaps into place.
Top Touch Panel Assembly
1. See “Component Location” Figure 1, for location.
2. Remove outer case.
3. Disconnect wire connectors at display board.
4. Remove screws securing top touch panel to unit.
5. Remove screws securing display board to top touch
panel assembly.
6. Disconnect touch panel connector from display
board.
7. Reassemble touch panel in reverse order.
Side Touch Panel Assembly
1. See “Component Location” Figure 1, for location.
2. Remove outer case.
3. Disconnect ribbon cable from display board.
4. Remove mounting screws securing side touch panel
to unit.
5. Reassemble touch panel in reverse order.
High Voltage Circuit Board
1. See “Component Location“ Figure 3, for location.
2. Remove outer case.
3. Unplug connectors.
4. Disconnect wires from terminal locations on H.V.
board.
5. Release mounting clips and remove board from
plastic supports.
6. Reassemble high voltage board in reverse order.
Pin 1
E1
E2
E3
J5
J1
J2
E4
E5
J3
J4
E7
E6
J7
J6
J8
Pin 28
P
in 1
Pin 1
P
in 1
Pin 1
Pin 1
Pin 1
Pin 1
Pin 50
Clip
Clip
Clip
Clip
Clip
Clip
Cli
p
NOTE: When reassembling, verify cable connection
with illustration of cable locations.
