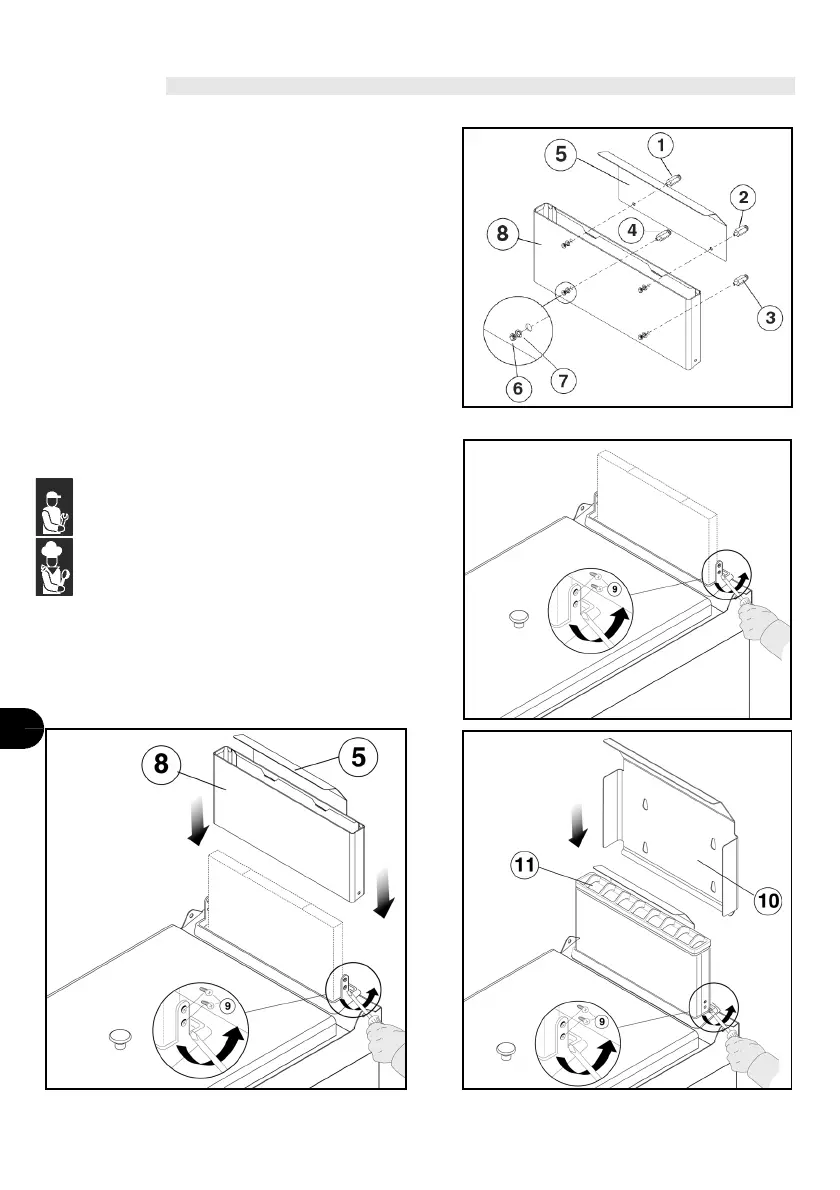

1 - Insert the pivots (1) and (2) both in the holes
of the deflector (5) and in the upper holes of
the flue (8) (see Fig.A).
2 - Fix the pivots (1) and (2) by means of nuts (6)
and washer (7).
3 - Insert the pivots (3) and (4) in the lower holes
of the flue (8).
4 - Fix the pivots (3) and (4) by means of nuts (6)
and washer (7).
5 - Unscrew the screws (9) fixed on the flue (8)
(see Fig.B).
6 - Insert the flue (8) ( see Fig.C).
7 - Screw down the screws (9) to fix the flue
on the appliance (see fig.D).
8 - Fit the heat protection (10) on the flue
( see Fig.D).
9 - Fit the cast iron flue vent (11) at the top of the
flue (see Fig.D).
INSTALLATION OF THE FLUE DEFLECTOR
Fig. A
Fig. B
Fig. C
Fig. D
