45
use and maintenance Area 51
5(029,1*
7+( (;+$867 6,/(1&(5
Carefully read p. 35 (MAINTENANCE).
◆
Position the vehicle on the centre stand.
Before performing the opera-
tions described below, let the en-
gine and the exhaust silencer
cool down until they have reached room
temperature, in order to avoid burns.

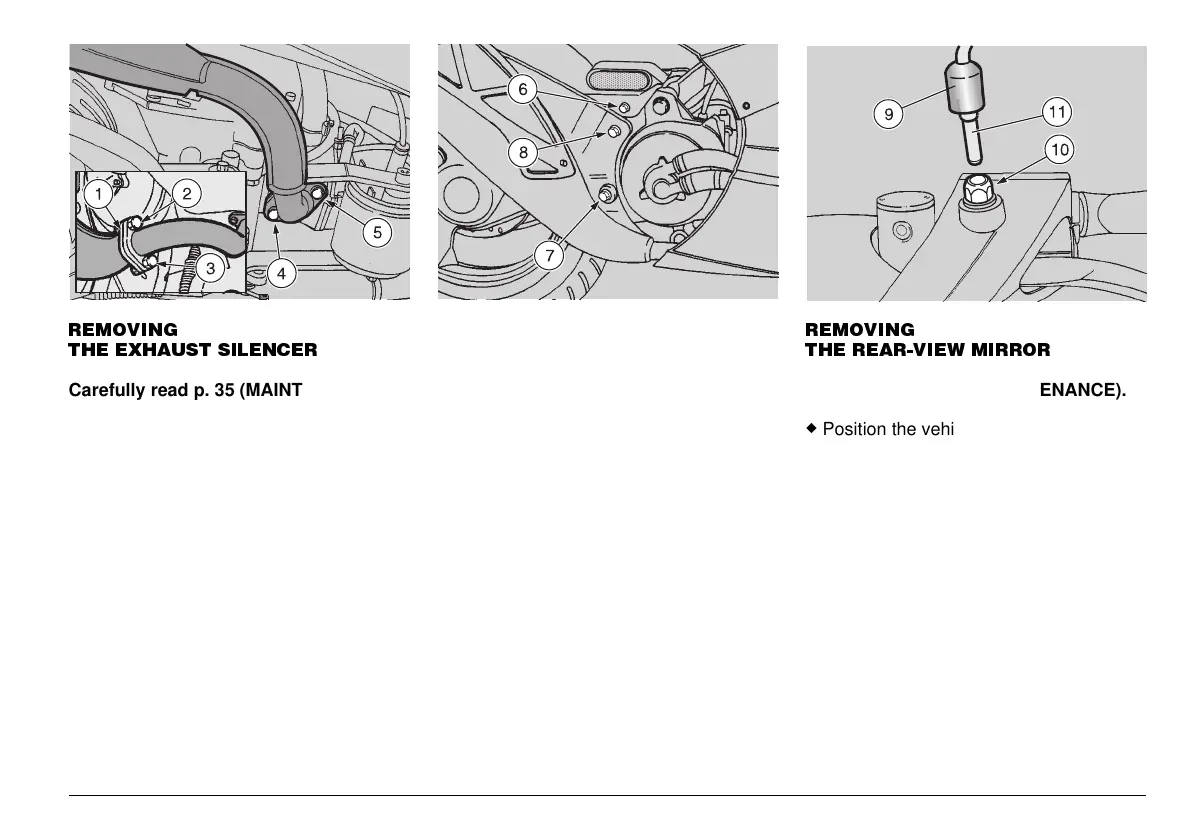

If the additional flange (1) is pro-
vided, DO NOT unscrew the
screws (2) and (3), but follow the
procedure described here below.
◆
Unscrew and remove the screws (4) and
(5).
Screw (4) and (5) driving torque:
12 Nm (1.2 kgm).
◆
Unscrew and remove the mudguard fas-
tening screw (6).
◆
Unscrew and remove the two screws (7)
and (8) that fasten the exhaust silencer
to the engine.
Screw (7) and (8) driving torque:
25 Nm (2.5 kgm).
◆
Remove the exhaust silencer.
Upon reassembly, replace the
gasket between the exhaust
manifold and the silencer with a new
one.
5(029,1*
7+( 5($59,(: 0,552 5
Carefully read p. 35 (MAINTENANCE).
◆
Position the vehicle on the centre stand.
For the countries where the use
of the second rear-view mirror is
prescribed: the following operations re-
fer to a single mirror, but are valid for
both.
◆
Lift the protection element (9).
◆
Loosen the nut (10) by giving it about
one turn.
◆
Withdraw the rear-view mirror (11).
When the rear-view mirror (11)
has been removed, do not tight-
en the nut (10), in order not to
damage the plastic part of the handle-
bar cover.
