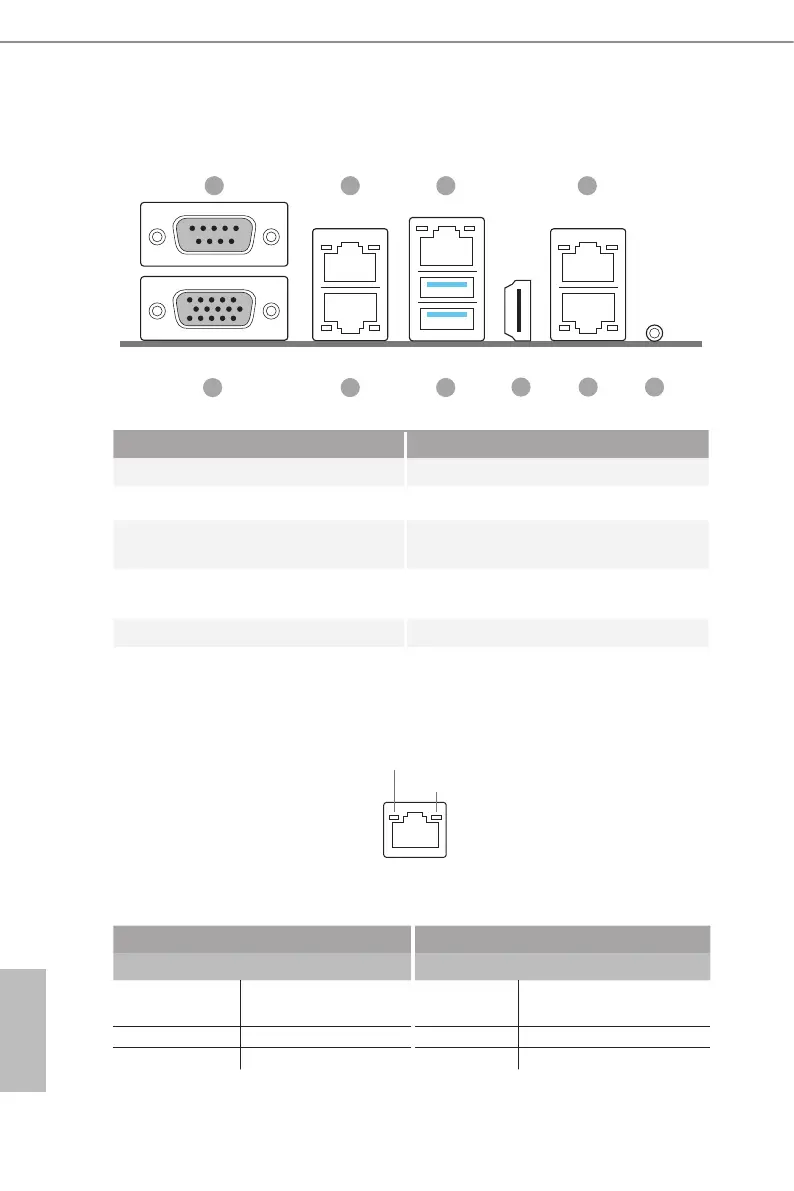

1.6 I/O Panel
5
7
3
2
1
8
6 9
4
10
No. Description No. Description
1 VGA Port (VGA1) 6 LAN RJ-45 Port (IPMI_LAN1)*
2 Serial Port (COM1) 7 HDMI Port
3 1G LAN RJ-45 Port (LAN1) 8
10G LAN RJ-45 Port (LAN3)**
(X570D4U-2L2T / X570D4U-2L2T/BCM only)
4 1G LAN RJ-45 Port (LAN2) 9
10G LAN RJ-45 Port (LAN4)**
(X570D4U-2L2T / X570D4U-2L2T/BCM only)
5 USB 3.2 Gen2 Ports (USB3_1_2) 10 UID Switch (UID1)
*ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
Dedicated IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10M bps connection or no
link
Blinking Yellow Data Activity Yellow 100M bps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
