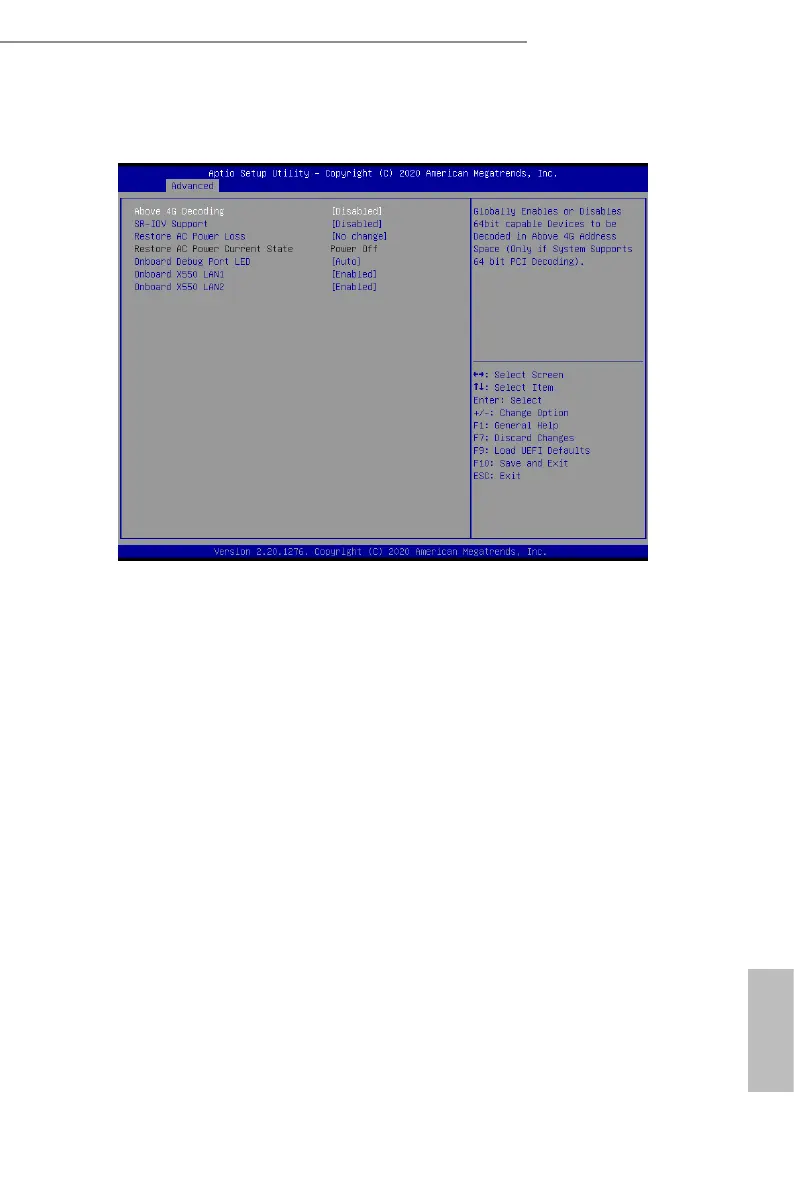

3.3.2 Chipset Conguration
Above 4G Decoding
Globally Enables or Disables 64bit capable Devices to be Decoded in Above 4G Address
Space (Only if System Supports 64 bit PCI Decoding).
SR-IOV Support
If system has SR-IOV capable PCIe Devices, this option Enables or Disables Single Root IO
Virtualization Support.
Restore AC Power Loss
Select the power state aer a power failure. If [Power O] is selected, the power will remain
o when the power recovers. If [Power On] is selected, the system will start to boot up
when the power recovers.
Restore AC Power Current State
is allows you to restore AC Power Current State.
Onboard Debug Port LED
Enable or disable the onboard Dr. Debug LED.
Onboard X550 LAN1
To enable or disable Onabord LAN.
