Asus 4G-N12 User Manual

23

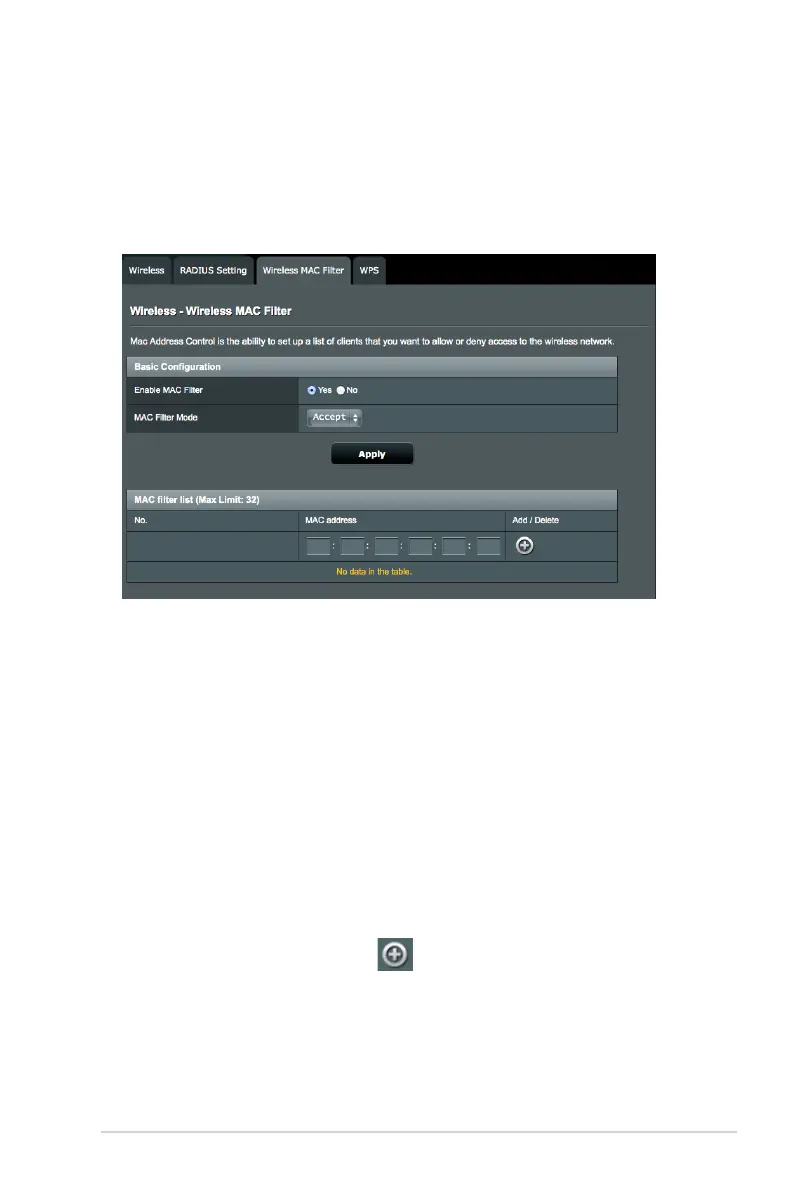

4.1.3 Wireless MAC Filter
Wireless MAC lter provides control over packets transmitted to
a specied MAC (Media Access Control) address on your wireless
network.
To set up the Wireless MAC lter:
1. From the navigation panel, go to Advanced Settings >
Wireless > Wireless MAC Filter tab.
2. In the Enable MAC Filter eld, select Ye s to enable Wireless
MAC lter.
3. In the MAC Filter Mode dropdown list, select either Accept or
Reject.
• SelectAccept to allow devices in the MAC lter list to access
the wireless network.
• SelectReject to prevent devices in the MAC lter list to
access the wireless network.
4. On the MAC lter list, click and key in the MAC address of
the wireless device.
5. Click Apply.

Asus 4G-N12 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Input current	1 A
Rack mounting	-
xDSL connection	No
Bandwidth (first)	2.4 GHz
WLAN data transfer rates supported	1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54, 300 Mbit/s
Ethernet LAN (RJ-45) ports	4
4G standard	LTE
3G standards	HSPA+, UMTS
4G bands supported	800, 1800, 2600 MHz
UMTS bands supported	900, 2100 MHz
Antennas quantity	2
Antenna gain level (max)	2 dBi
Security algorithms	802.1x RADIUS, WPA-PSK, WPA2-PSK, WPA2-RADIUS, WPS
Product color	Black
LED indicators	3G, Data, LAN, Power, WAN
AC input voltage	110 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 90 %
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	125 mm
Width	174.5 mm
Height	29.5 mm
Weight	300 g
