Asus 4G-N12 User Manual

39

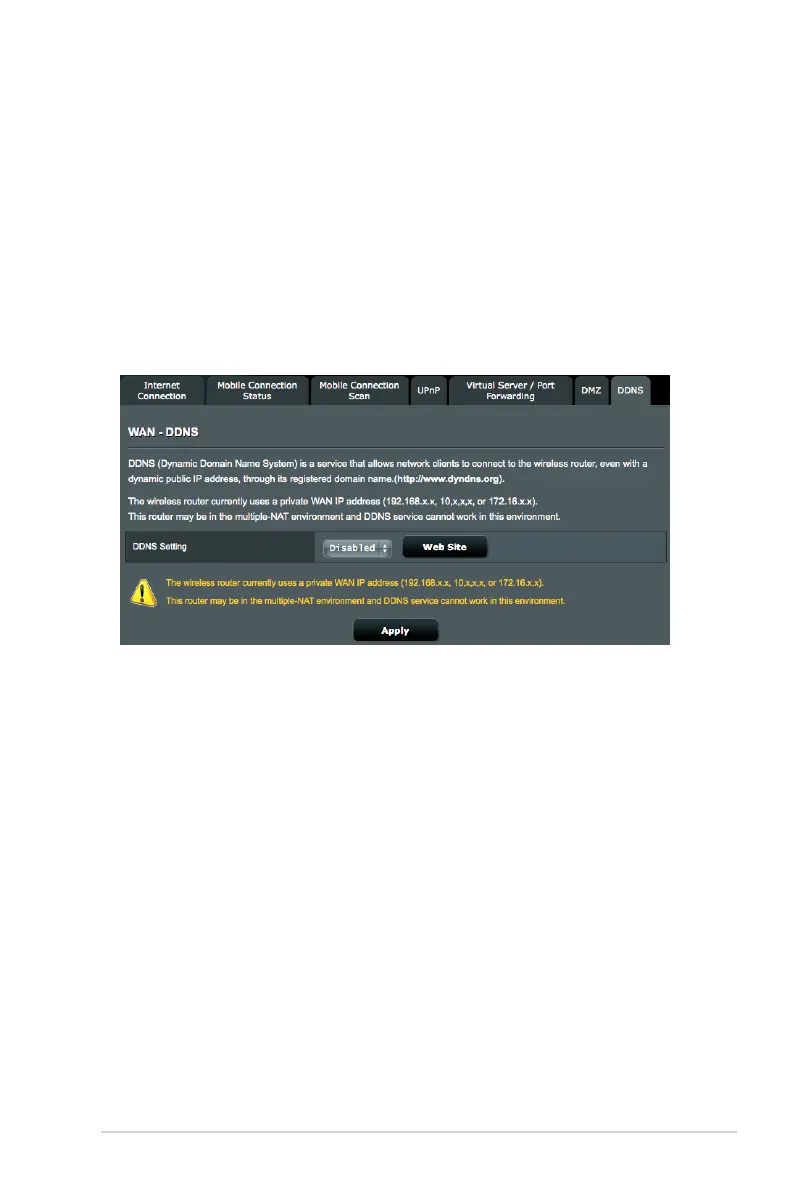

4.3.7 DDNS
Setting up DDNS (Dynamic Domain Name System) allows you
to access the router outside your network through the provided
DDNS service. The DDNS service, which maps a domain name to a
static or dynamic IP address, is powered by DynDNS.org.
With a DDNS connection, you can host a website, an email server,
an FTP site, and other Internet apps in your local area network
even when using dynamic IP addresses for the domain names.
To set up DDNS:
1. Select DDNS Setting from the dropdown list and click Web
Site to go to the DynDNS.org web site.
2. Complete the registration on the DDNS web site.
3. Enter the username, password and domain name of your DDNS
settings.
4. Click Update Dynamic DNS to update your IP address
conguration.
5. When done, click Apply.

Asus 4G-N12 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Input current	1 A
Rack mounting	-
xDSL connection	No
Bandwidth (first)	2.4 GHz
WLAN data transfer rates supported	1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54, 300 Mbit/s
Ethernet LAN (RJ-45) ports	4
4G standard	LTE
3G standards	HSPA+, UMTS
4G bands supported	800, 1800, 2600 MHz
UMTS bands supported	900, 2100 MHz
Antennas quantity	2
Antenna gain level (max)	2 dBi
Security algorithms	802.1x RADIUS, WPA-PSK, WPA2-PSK, WPA2-RADIUS, WPS
Product color	Black
LED indicators	3G, Data, LAN, Power, WAN
AC input voltage	110 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 90 %
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	125 mm
Width	174.5 mm
Height	29.5 mm
Weight	300 g
