Asus 4G-N12 User Manual

35

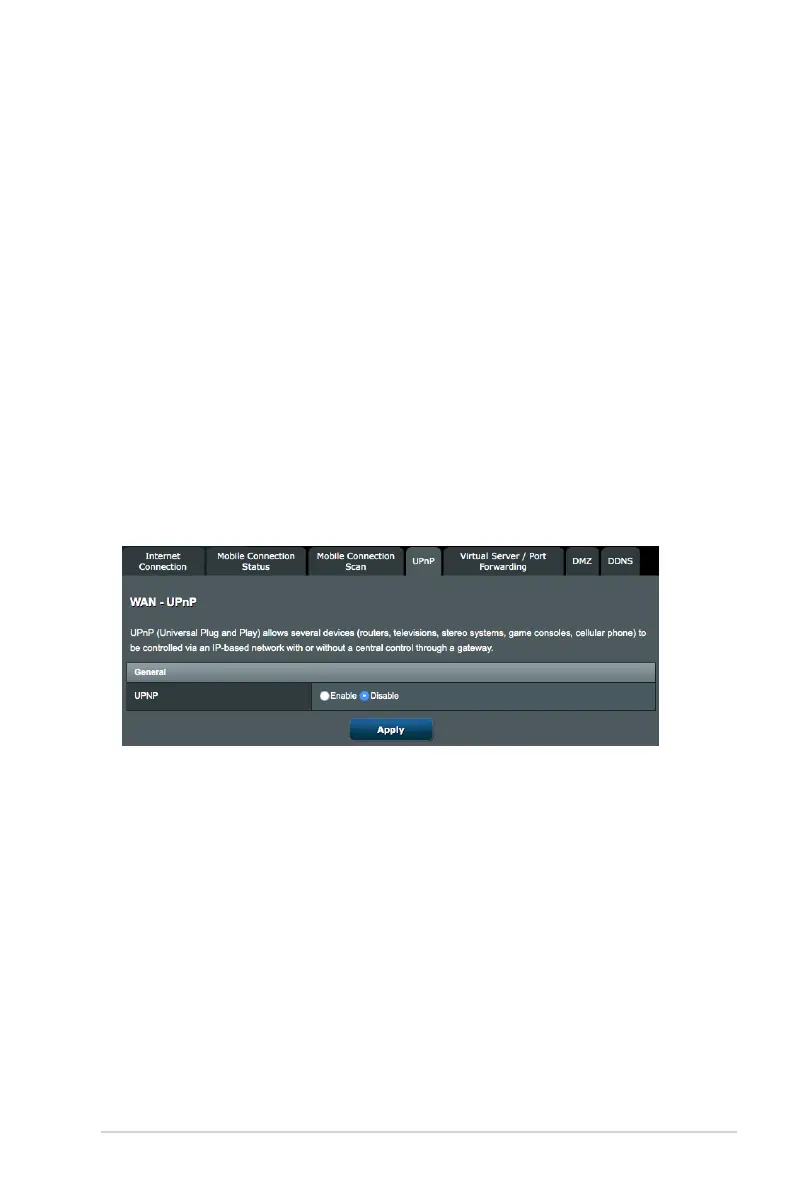

4.3.4 UPnP
UPnP (Universal Plug and Play) allows several devices (such
as routers, televisions, stereo systems, game consoles, and
cellular phones), to be controlled via an IP-based network with
or without a central control through a gateway. UPnP connects
PCs of all form factors, providing a seamless network for remote
conguration and data transfer. Using UPnP, a new network device
is discovered automatically. Once connected to the network,
devices can be remotely congured to support P2P applications,
interactive gaming, video conferencing, and web or proxy servers.
Unlike Port forwarding, which involves manually conguring
port settings, UPnP automatically congures the router to accept
incoming connections and direct requests to a specic PC on the
local network.

Asus 4G-N12 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Input current	1 A
Rack mounting	-
xDSL connection	No
Bandwidth (first)	2.4 GHz
WLAN data transfer rates supported	1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54, 300 Mbit/s
Ethernet LAN (RJ-45) ports	4
4G standard	LTE
3G standards	HSPA+, UMTS
4G bands supported	800, 1800, 2600 MHz
UMTS bands supported	900, 2100 MHz
Antennas quantity	2
Antenna gain level (max)	2 dBi
Security algorithms	802.1x RADIUS, WPA-PSK, WPA2-PSK, WPA2-RADIUS, WPS
Product color	Black
LED indicators	3G, Data, LAN, Power, WAN
AC input voltage	110 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 90 %
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	125 mm
Width	174.5 mm
Height	29.5 mm
Weight	300 g
