Asus 4G-N12 User Manual

51

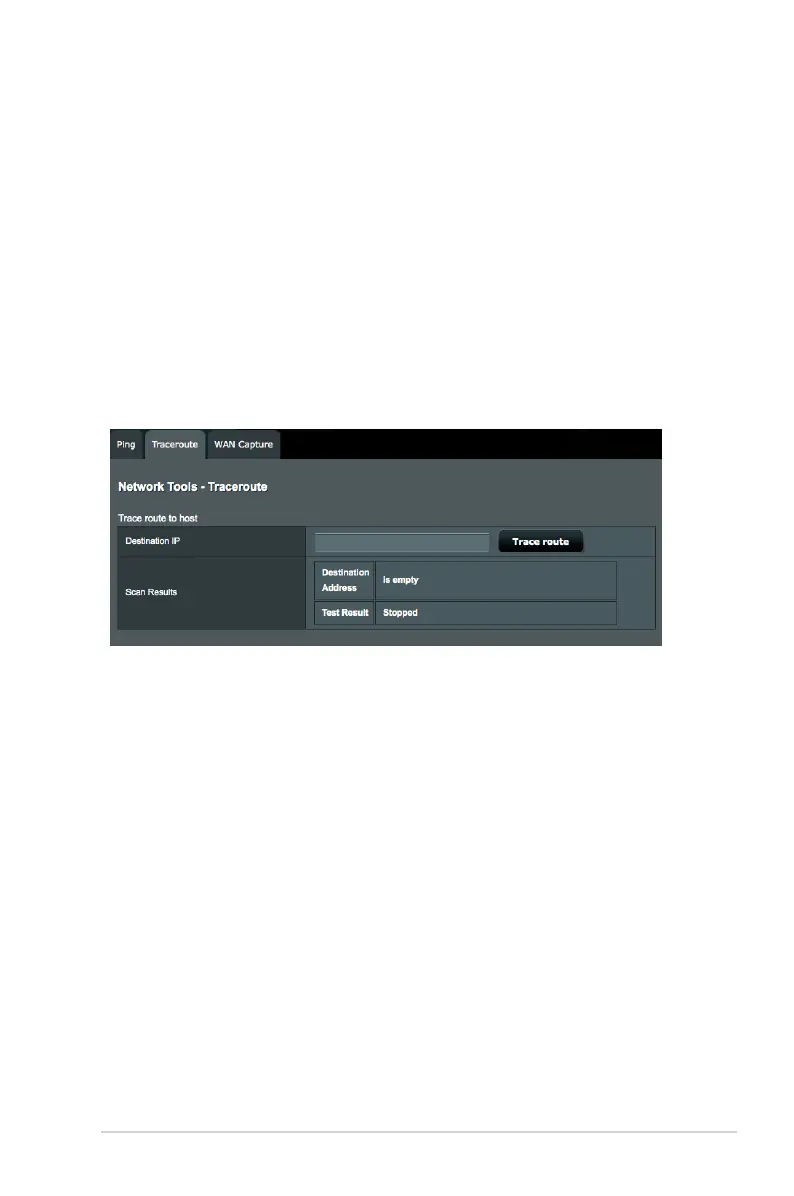

4.7.2 Traceroute
The Traceroute test (also known as trace route or tracert) will
trace the route that test packets take from one server destination
to another. The test results provide a list of hosts or IP addresses
showing the route taken by the test packets starting from the
selected monitoring location to the destination Domain or IP
(such as www.google.com) . Common uses of the Traceroute
test are network troubleshooting and to help identify routing
problems or rewalls that may be blocking access to a web site.

Asus 4G-N12 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Input current	1 A
Rack mounting	-
xDSL connection	No
Bandwidth (first)	2.4 GHz
WLAN data transfer rates supported	1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54, 300 Mbit/s
Ethernet LAN (RJ-45) ports	4
4G standard	LTE
3G standards	HSPA+, UMTS
4G bands supported	800, 1800, 2600 MHz
UMTS bands supported	900, 2100 MHz
Antennas quantity	2
Antenna gain level (max)	2 dBi
Security algorithms	802.1x RADIUS, WPA-PSK, WPA2-PSK, WPA2-RADIUS, WPS
Product color	Black
LED indicators	3G, Data, LAN, Power, WAN
AC input voltage	110 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 90 %
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	125 mm
Width	174.5 mm
Height	29.5 mm
Weight	300 g
