ASUS B150 PRO GAMING

1-3

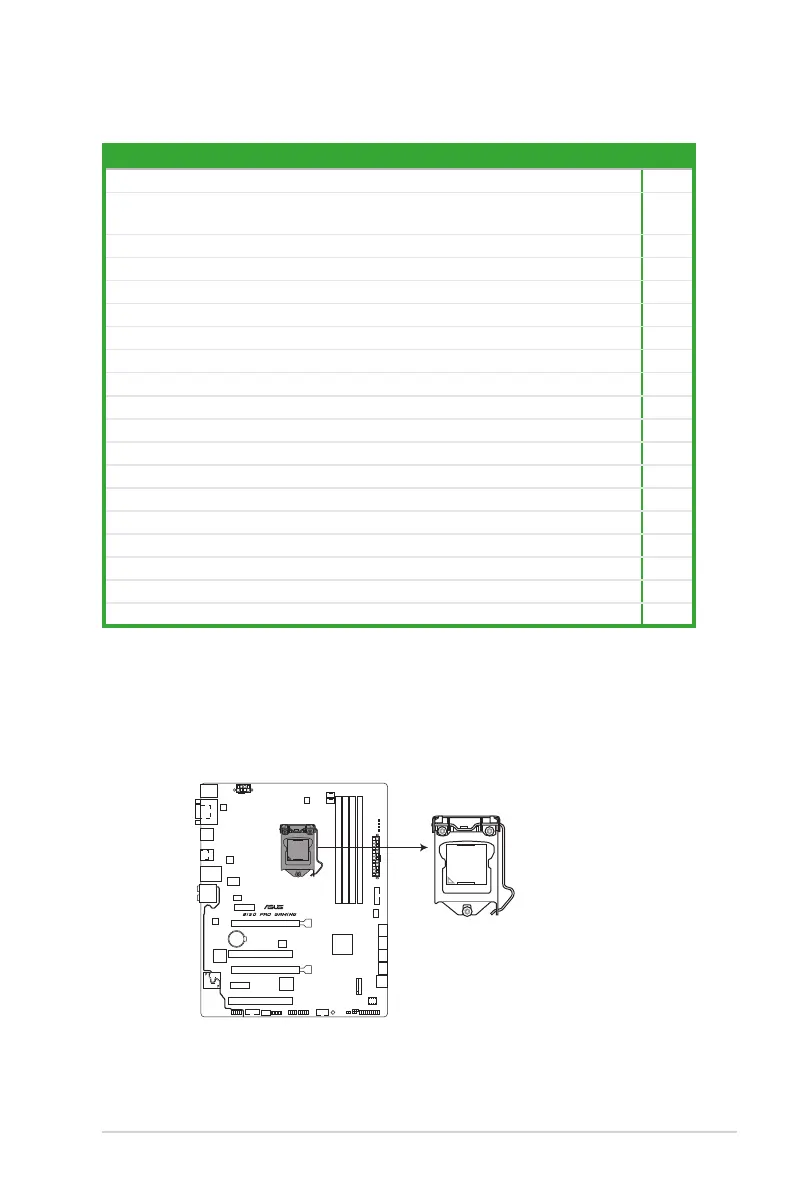

1.2.4 Layout contents

1.3 Central Processing Unit (CPU)

This motherboard comes with a surface mount LGA1151 socket designed for 6th Generation

Intel

Core™ i7 / i5 / i3, Pentium

, and Celeron

processors.

Connectors/Jumpers/Slots/LED Page

ATX power connectors (24-pin EATXPWR, 8-pin ATX12V)

1-20

2. CPU, water pump, and chassis fan connectors (4-pin CPU_FAN, 4-pin W_

PUMP, 4-pin CHA_FAN1~3)

1-19

3. Intel

LGA1151 CPU socket 1-3

4. DDR4 DIMM slots 1-7

5. Q LEDs (BOOT_DEVICE_LED, VGA_LED, DRAM_LED, CPU_LED) 1-25

6. USB 3.0 connector (20-1 pin USB3_12) 1-22

7. Intel

B150 Serial ATA 6.0 Gb/s connector (7-pin SATA6G_1~6) 1-23

8. M.2 Socket 3 1-18

9. CPU Over Voltage jumper (3-pin CPU_OV)

1-15

10. System panel connector (20-5 pin PANEL) 1-24

11. Thermal sensor connector (2-pin T_SENSOR) 1-20

12. Clear RTC RAM (2-pin CLRTC) 1-14

13. Standby Power LED (SB_PWR) 1-25

14. USB 2.0 connectors (10-1 pin USB910, USB1112) 1-18

15. ROG Extension connector (18-1 pin ROG_EXT) 1-21

16. TPM connector (14-1 pin TPM) 1-22

17. Serial port connectors (10-1 pin COM) 1-17

18. Front panel audio connector (10-1 pin AAFP) 1-21

19. SupremeFX LED 1-26

B150 PRO GAMING CPU socket LGA1151

Questions and Answers:

Need help?

Do you have a question about the Asus B150 PRO GAMING and is the answer not in the manual?

General

Non-ECC	Yes
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133 MHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®
USB 2.0 connectors	2
Number of SATA II connectors	0
Number of SATA III connectors	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Supported storage drive interfaces	M.2, SATA III
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	128 Mbit
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Component for	PC
Motherboard chipset	Intel® B150
Audio output channels	7.1 channels
Motherboard form factor	ATX
Parallel processing technology support	2-Way CrossFireX, 4-Way CrossFireX
