Asus B150 PRO GAMING User Manual

2.7 Monitor menu

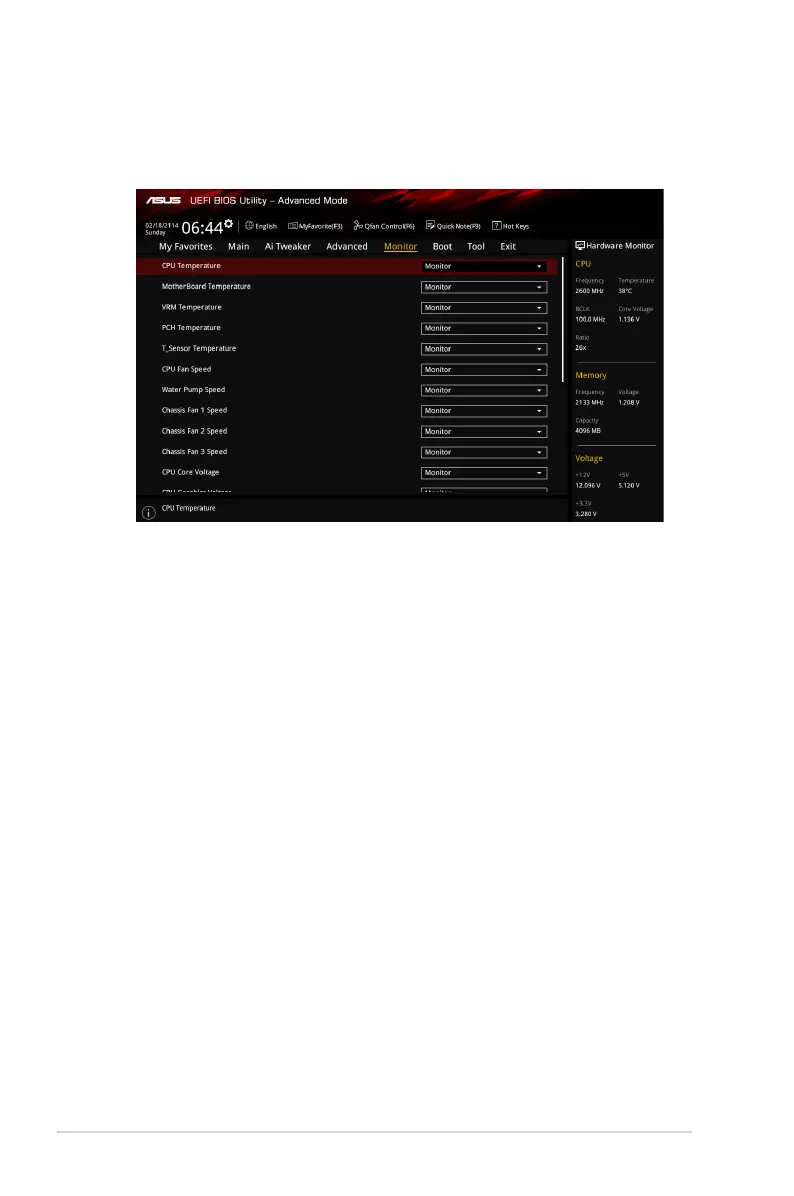

The Monitor menu displays the system temperature/power status, and allows you to change
the fan settings.
Scroll down to display the other BIOS items.
2.7.1 CPU/ MotherBoard Temperature, VRM Temperature,
PCH Temperature, T_Sensor Temperature [xxxºC/
xxxºF]/ [Ignore]
The onboard hardware monitor automatically detects and displays the CPU and motherboard
temperatures. Select [Ignore] if you do not wish to display the detected temperatures.
2.7.2 CPU Fan, Water Pump Speed, Chassis Fan 1/2/3
Speed [xxxx RPM]/ [Ignore]/ [N/A]
The onboard hardware monitor automatically detects and displays the CPU fan, water pump,
and chassis fan 1/2/3 speeds in rotations per minute (RPM). If the fan is not connected to the
motherboard, the eld shows N/A. Select [Ignore] if you do not wish to display the detected
speed.
2.7.3 CPU Core Voltage, CPU Graphics Voltage, 3.3V
Voltage, 5V Voltage, 12V Voltage, PCH Core Voltage,
CPU System Agent Voltage, DRAM Voltage, CPU
Standby Voltage
The onboard hardware monitor automatically detects the voltage output through the onboard
voltage regulators. Select [Ignore] if you do not want to detect this item.
2.7.4 Q-Fan Conguration
The subitems in this menu allows you to congure the Q-Fan features.
Qfan Tuning
Click this item to automatically detect the lowest speed and congure the minimum duty cycle
for each fan.
2-32 Chapter 2: Getting started

Asus B150 PRO GAMING Specifications

General

Non-ECC	Yes
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133 MHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®
USB 2.0 connectors	2
Number of SATA II connectors	0
Number of SATA III connectors	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Supported storage drive interfaces	M.2, SATA III
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	128 Mbit
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Component for	PC
Motherboard chipset	Intel® B150
Audio output channels	7.1 channels
Motherboard form factor	ATX
Parallel processing technology support	2-Way CrossFireX, 4-Way CrossFireX

Weight and Dimensions

Depth	244 mm
Width	305 mm
