Asus DSL-AC88U User Manual

29
Your bandwidth information is available from your ISP.

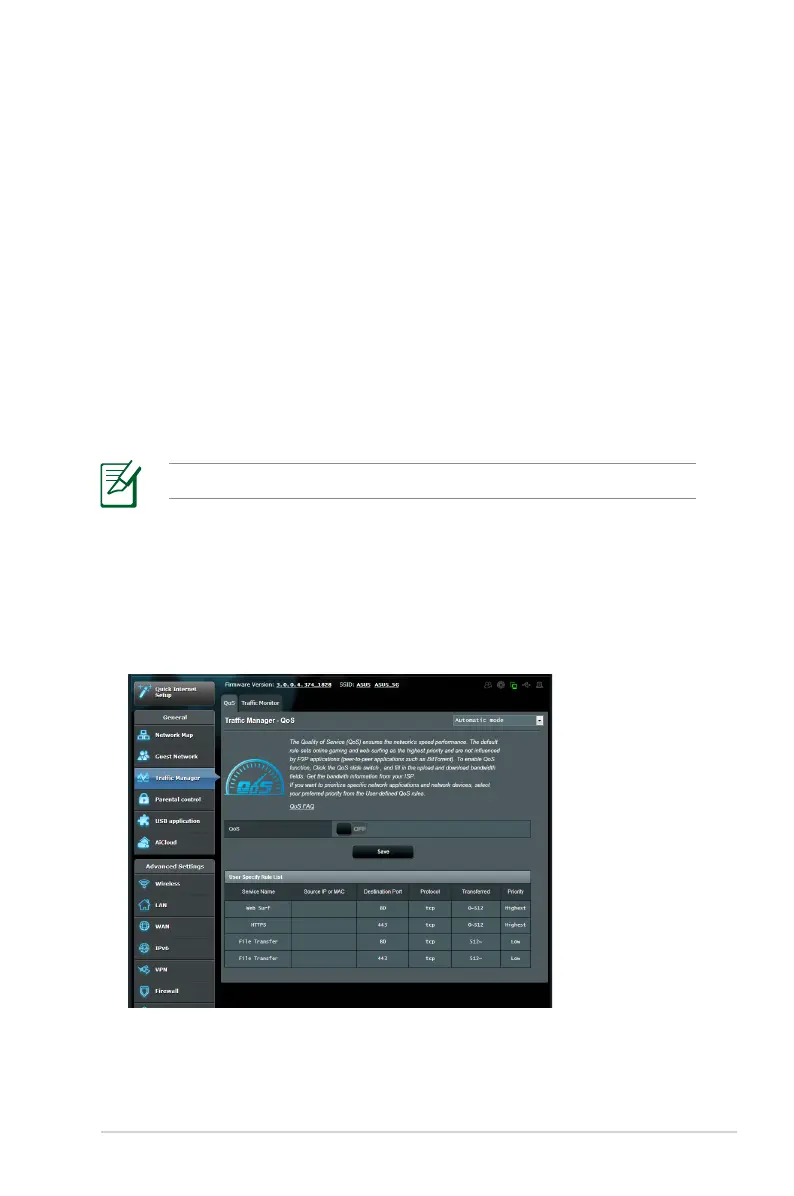

Using the Trac Manager
Managing QoS (Quality of Service) Bandwidth
The Quality of Service feature allows you to set the bandwidth
priority and manage network traffic.
To set up QoS:
1. Click Trac Manager on the left navigation panel and click the
QoS tab.
2. Click ON to enable QoS.
3. Input values for Upload Bandwidth and Download
Bandwidth.
4. Click Save.
5. If you want to prioritize specific network applications and
network services, click User-dened Priority on the upper-
right hand corner.
6. Adjust the values as needed. Click Apply.

Asus DSL-AC88U Specifications

General

Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	3167 Mbit/s
WLAN data transfer rate (first band)	1000 Mbit/s
WLAN data transfer rate (second band)	2167 Mbit/s
VPN support	‧VPN server(PPTP/Open VPN) ‧VPN client(PPTP/L2TP/Open VPN)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
RJ-11 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	5
Security algorithms	WPA-PSK, WPA2-PSK
Antennas quantity	4
AC input voltage	110 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Cables included	AC, DSL, LAN (RJ-45)
Product type	Tabletop router
Product color	Black
LED indicators	DSL, LAN, Power, WLAN
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	180 mm
Width	292 mm
Height	61 mm
Weight	795 g
