Asus Eee PC 4G User Manual

Disassembly procedure
2 - 3

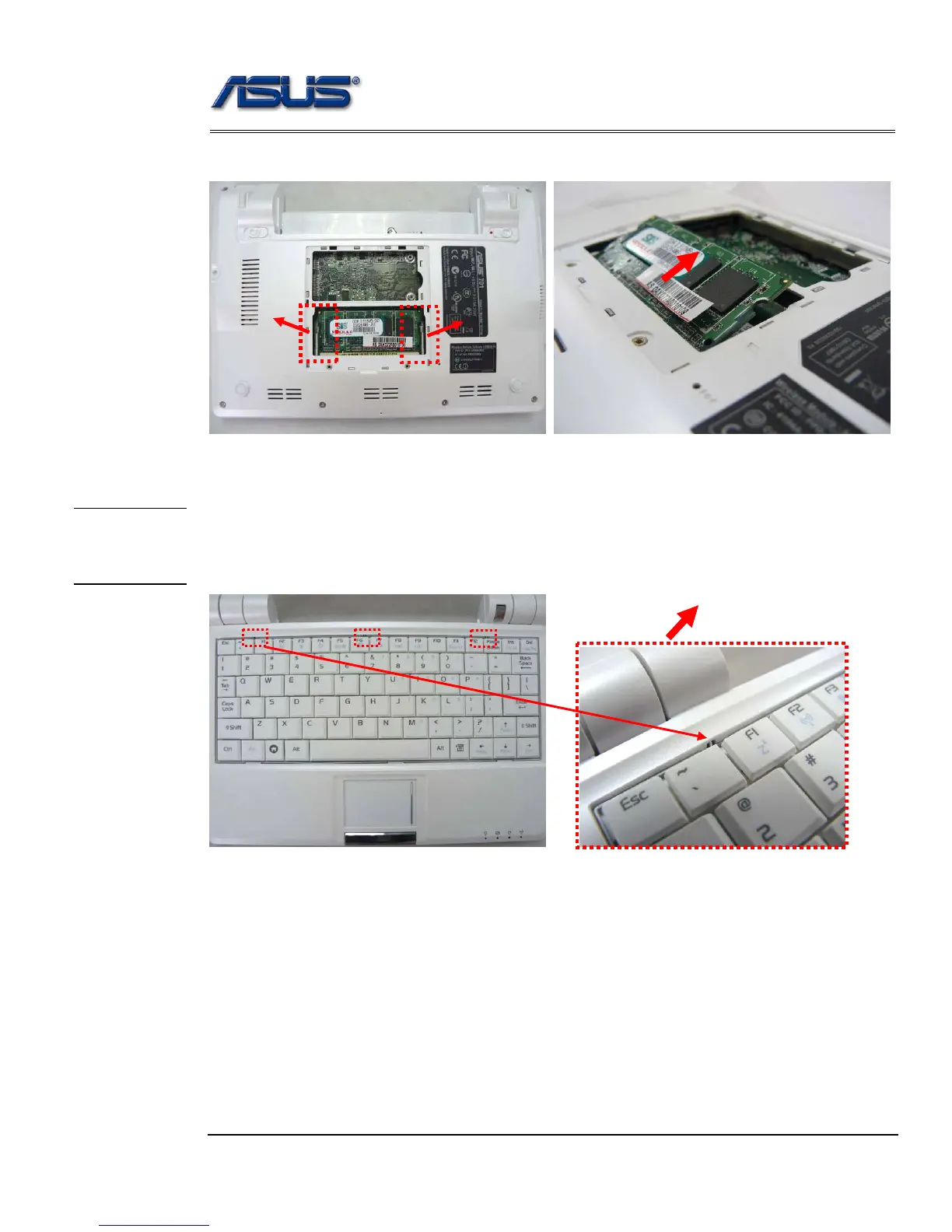

2. Softly open the two latches to pop the memory module up at 45 degree angles and then remove
the memory at that angle.
Keyboard Module
The illustration of below shows how to remove the keyboard
Removing Keyboard
1. Turn over the NB and push the 3 latches (F1; F6;Pause) on keyboard module to lift the keyboard
plate.
KEYBOARD
MODULE
REMOVAL

Asus Eee PC 4G Specifications

General

Processor family	Intel® Celeron® M
Processor frequency	0.9 GHz
Processor manufacturer	Intel
Internal memory	0.5 GB
Memory clock speed	667 MHz
Internal memory type	DDR2-SDRAM
SSD capacity	4 GB
Card reader integrated	Yes
HD type	Not supported
Display diagonal	7 \
Display resolution	800 x 480 pixels
Native aspect ratio	5:4
Graphics card	GMA 900
Wireless technology	802.11 b/g
Audio system	HD Audio
Front camera resolution (numeric)	0.3 MP
Charging port type	DC-in jack
USB 2.0 ports quantity	3
Networking features	Fast Ethernet, WLAN
Operating system installed	Linux
Product type	Netbook
Product color	White
Battery capacity	5200 mAh
Battery life (max)	3.5 h
Number of battery cells	4
Pointing device	Touchpad

Weight and Dimensions

Depth	165 mm
Width	225 mm
Height	35 mm
Weight	920 g
