Asus H110M-D D3 User Manual

ASUS H110M-D D3
1-3

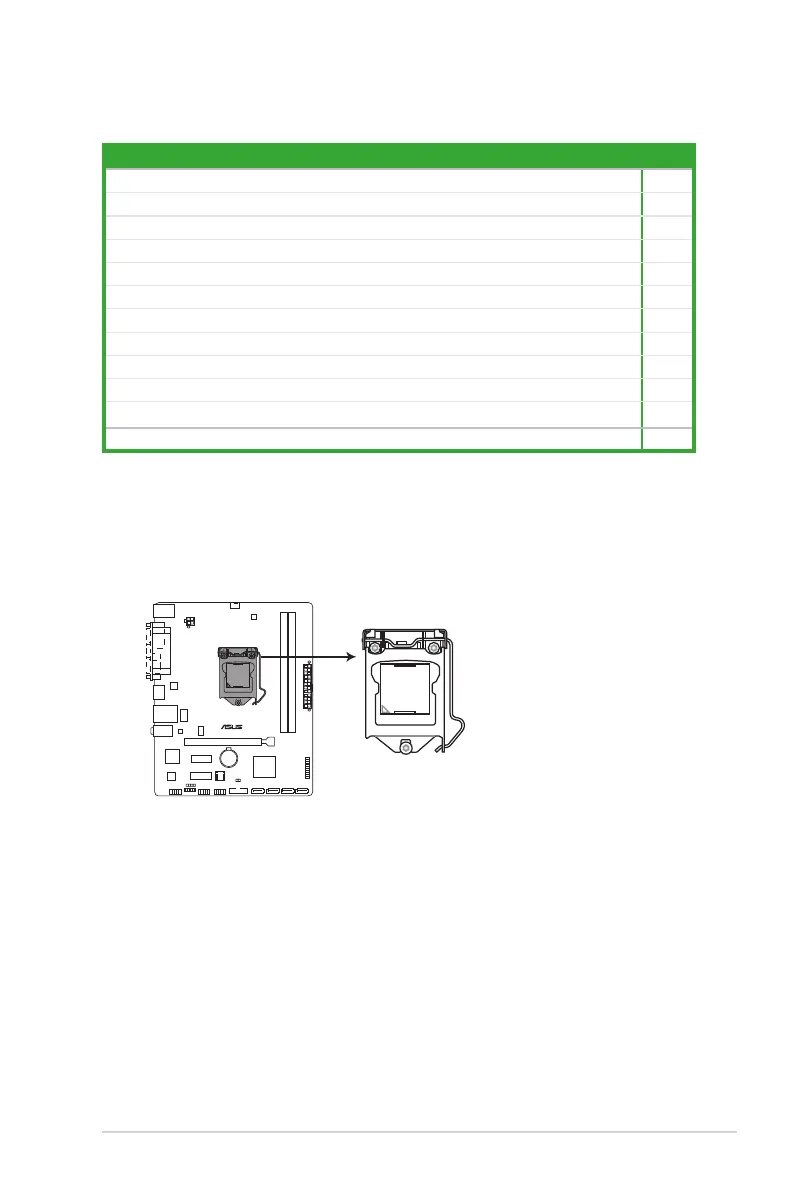

1.2.4 Layout contents
1.3 Central Processing Unit (CPU)
ThismotherboardcomeswithasurfacemountLGA1151socketdesignedfor6thGeneration
Intel
®
Core™i7/i5/i3,Pentium
®
,andCeleron
®
processors.
Connectors/Jumpers/Slots/LED Page
1.
ATXpowerconnectors(24-pinEATXPWR,4-pinATX12V)
1-14
2.
CPUandchassisfanconnectors(4-pinCPU_FAN,4-pinCHA_FAN)
1-18
3.
Intel
®
LGA1151CPUsocket
1-3
4. DDR3DIMMslots 1-7
5. Systempanelconnector(20-3pinPANEL) 1-19
6. Intel
®
H110SerialATA6.0Gb/sconnector(7-pinSATA6G_1~4) 1-16
7. USB3.0connectors(20-1pinUSB3_12)
1-16
8. ClearRTCRAM(2-pinCLRTC) 1-11
9. USB2.0connectors(USB56,USB910) 1-15
10. TPMconnector(14-1pinTPM) 1-18
11. Frontpanelaudioconnector(10-1pinAAFP)
1-17
12. Digitalaudioconnector(4-1pinSPDIF_OUT) 1-17
H110M-D D3
H110M-D D3 CPU socket LGA1151

Asus H110M-D D3 Specifications

General

Form Factor	Micro ATX
Chipset	Intel H110
Socket	LGA 1151
Memory Type	DDR3
Memory Slots	2
Max Memory	32GB
PCIe 3.0 x16 Slots	1
PCIe 2.0 x1 Slots	2
SATA 6Gb/s Ports	4
USB 3.0 Ports	2
USB 2.0 Ports	6
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Memory Standard	DDR3 1600/1333 MHz
LAN	Realtek RTL8111H
Video Outputs	DVI-D, VGA
