Asus H110M-D D3 User Manual

1-12
Chapter 1: Product introduction
1.7 Connectors

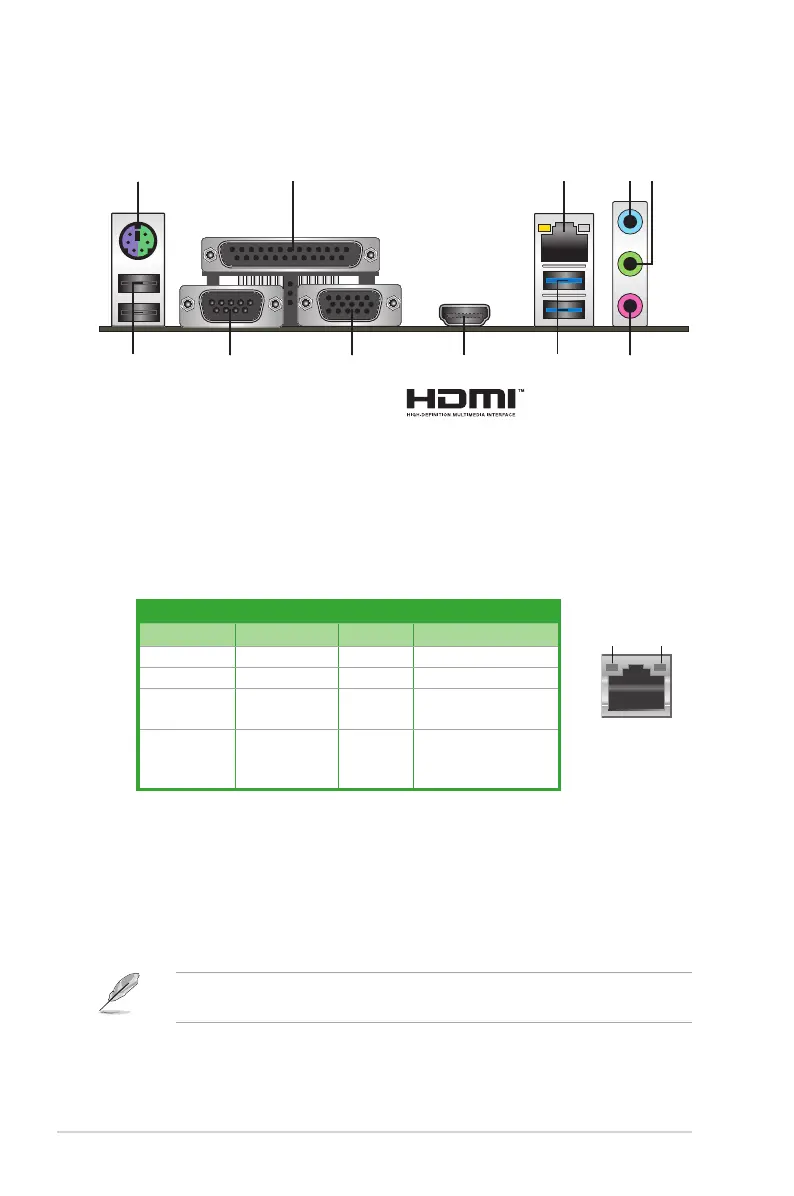

1.7.1 Rear panel connectors
4 53
678
2
910
1
11
4. Line In port (light blue).Thisportconnectstothetape,CD,DVDplayer,orother
audio sources.
5. Line Out port (lime).Thisportconnectstoaheadphoneoraspeaker.Inthe4.1,5.1
and7.1-channelcongurations,thefunctionofthisportbecomesFrontSpeakerOut.
6. Microphone port (pink). This port connects to a microphone.
Refertotheaudiocongurationtableforthefunctionoftheaudioportsin2.1,4.1,5.1,or
7.1-channelconguration.
1. PS/2 mouse/keyboard combo port. This port is for a PS/2 mouse/keyboard.
2. Parallel port.This25-pinportconnectsaparallelprinter,ascanner,orotherdevices.
3. LAN (RJ-45) port.ThisportallowsGigabitconnectiontoaLocalAreaNetwork(LAN)
through a network hub.
LAN port
Speed
LED
Activity Link
LED
Activity/Link LED Speed LED
Status Description Status Description
Off Nolink OFF 10Mbpsconnection
Orange Linked ORANGE 100Mbpsconnection
Orange
(Blinking)
Dataactivity GREEN 1Gbps connection
Orange
(Blinkingthen
steady)
Readyto
wake up from
S5mode
_ _
LAN port LED indications

Asus H110M-D D3 Specifications

General

Form Factor	Micro ATX
Chipset	Intel H110
Socket	LGA 1151
Memory Type	DDR3
Memory Slots	2
Max Memory	32GB
PCIe 3.0 x16 Slots	1
PCIe 2.0 x1 Slots	2
SATA 6Gb/s Ports	4
USB 3.0 Ports	2
USB 2.0 Ports	6
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Memory Standard	DDR3 1600/1333 MHz
LAN	Realtek RTL8111H
Video Outputs	DVI-D, VGA
