Chapter 1: Product introduction

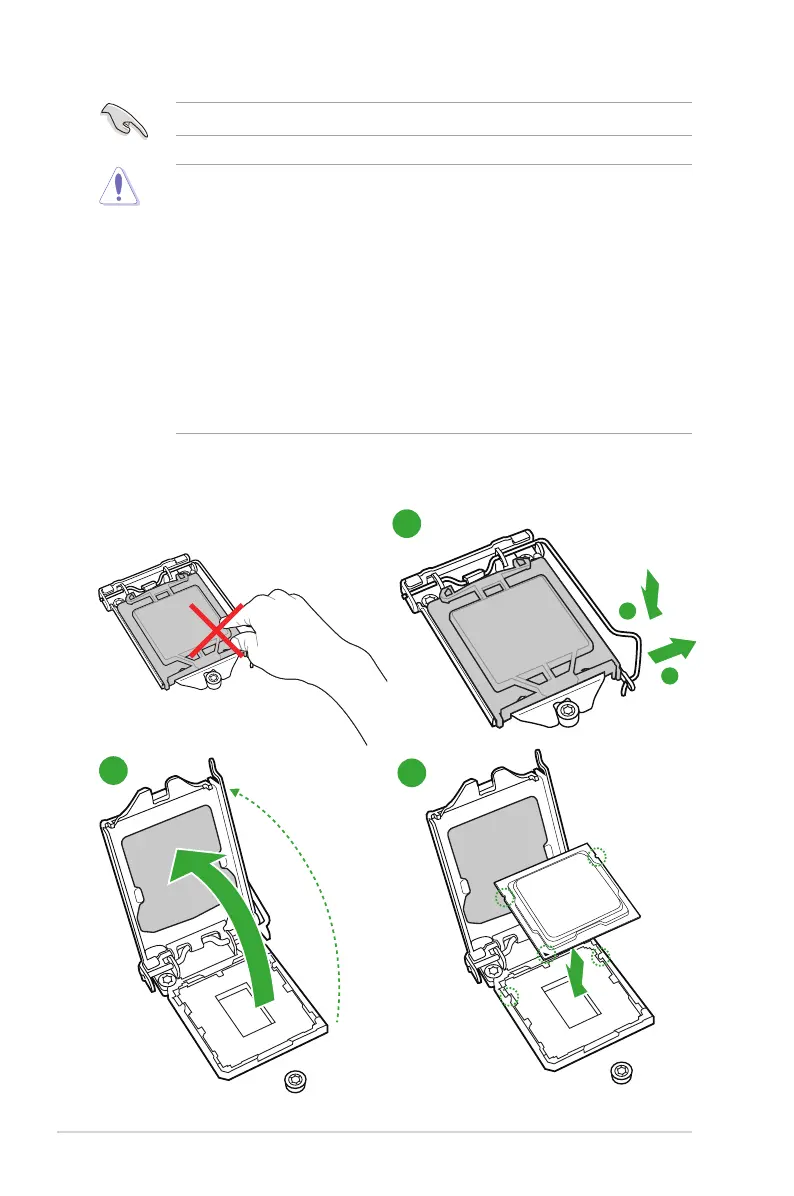

1.3.1 Installing the CPU
1
2
3
A
B
UnplugallpowercablesbeforeinstallingtheCPU.
• EnsurethatyouinstallthecorrectCPUdesignedfortheLGA1151socketonly.DO
NOTinstallaCPUdesignedforLGA1150,LGA1155andLGA1156socketsonthe
LGA1151socket.
• Uponpurchaseofthemotherboard,ensurethatthePnPcapisonthesocketand
the socket contacts are not bent. Contact your retailer immediately if the PnP cap
ismissing,orifyouseeanydamagetothePnPcap/socketcontacts/motherboard
components.
• Keepthecapafterinstallingthemotherboard.ASUSwillprocessReturnMerchandise
Authorization(RMA)requestsonlyifthemotherboardcomeswiththecaponthe
LGA1151socket.
• Theproductwarrantydoesnotcoverdamagetothesocketcontactsresultingfrom
incorrectCPUinstallation/removal,ormisplacement/loss/incorrectremovalofthePnP
cap.

Asus H110M-D D3 Specifications

General

Form Factor	Micro ATX
Chipset	Intel H110
Socket	LGA 1151
Memory Type	DDR3
Memory Slots	2
Max Memory	32GB
PCIe 3.0 x16 Slots	1
PCIe 2.0 x1 Slots	2
SATA 6Gb/s Ports	4
USB 3.0 Ports	2
USB 2.0 Ports	6
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Memory Standard	DDR3 1600/1333 MHz
LAN	Realtek RTL8111H
Video Outputs	DVI-D, VGA
