Asus H81M-CT User Manual

ASUS H81M-CT
1-3

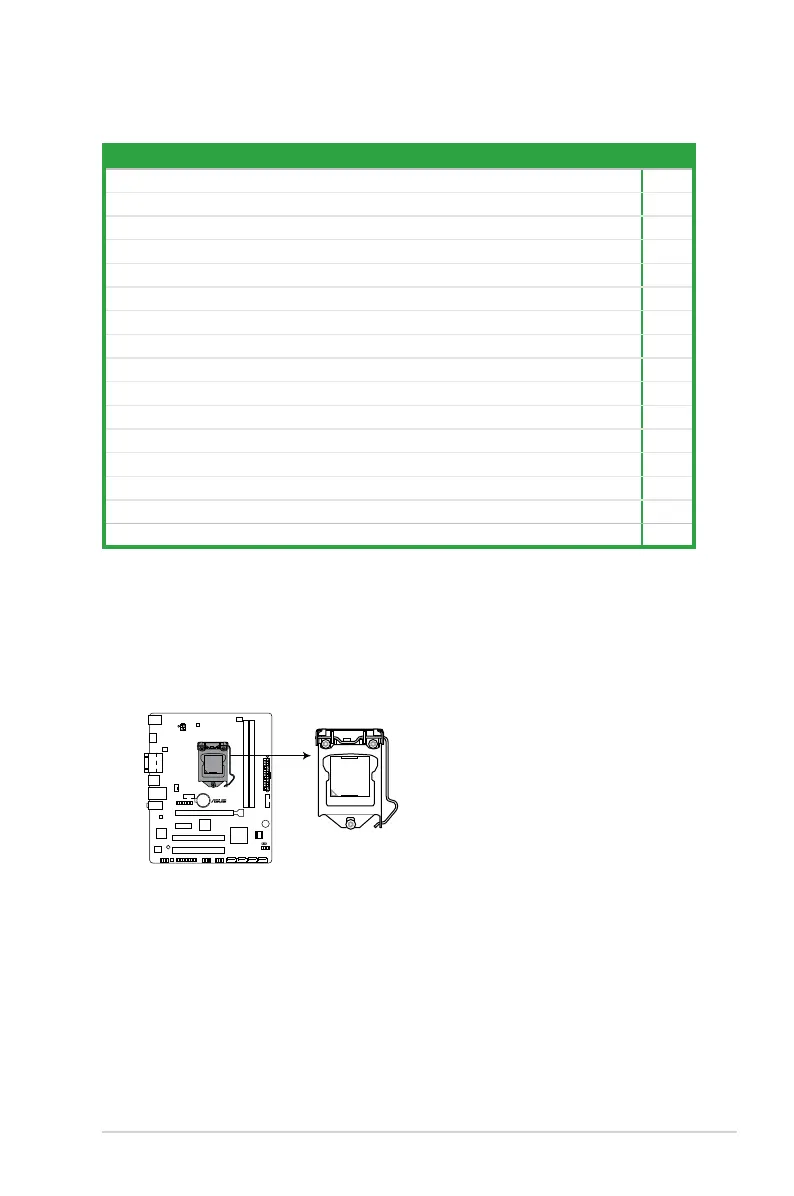

1.2.4 Layout contents
Connectors/Jumpers/Slots/LED Page
1.
CPUandchassisfanconnectors(4-pinCPU_FAN,4-pinCHA_FAN)
2. ATXpowerconnectors(24-pinATXPWR,4-pinATX12V)
3.
Serialportconnectors(10-1pinCOM2)
4. Intel
®
LGA1150CPUsocket
5. DDR3DIMMslots
6.
USB3.0connector(20-1pinUSB3_12)
7.
ClearRTCRAM(3-pinCLRTC)
8.
Systempanelconnector(10-1pinF_PANEL)
9.
Intel
®
H81SerialATA3.0Gb/sconnector(7-pinSATA3G_1~2)
10.
Intel
®
H81SerialATA6.0Gb/sconnector(7-pinSATA6G_1~2)
11.
USB2.0connectors(10-1pinUSB910,USB1112)
12.
LPTconnector(26-1pinLPT)
13.
Monooutheader(2-pinMONO_OUT)
14.
Frontpanelaudioconnector(10-1pinAAFP)
15.
OnboardLED(SB_PWR)
16.
TPMheader(20-1pinTPM)
1.3 Central Processing Unit (CPU)
ThismotherboardcomeswithasurfacemountLGA1150socketdesignedfortheIntel
®
4th
generationCore™i7/Core™i5/Core™i3,Pentium
®
,Celeron
®
processors.
H81M-CT
H81M-CT CPU socket LGA1150

Asus H81M-CT Specifications

General

Form Factor	Micro ATX
Chipset	Intel H81
Socket	LGA 1150
Memory Slots	2
Maximum Memory	16GB
Memory Type	DDR3
PCIe x16 Slots	1
PCIe x1 Slots	2
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
USB Ports	2 x USB 3.0, 8 x USB 2.0
LAN	Realtek 8111G
Video Outputs	VGA, DVI
