Chapter 2: Getting started
2.7 Monitor menu

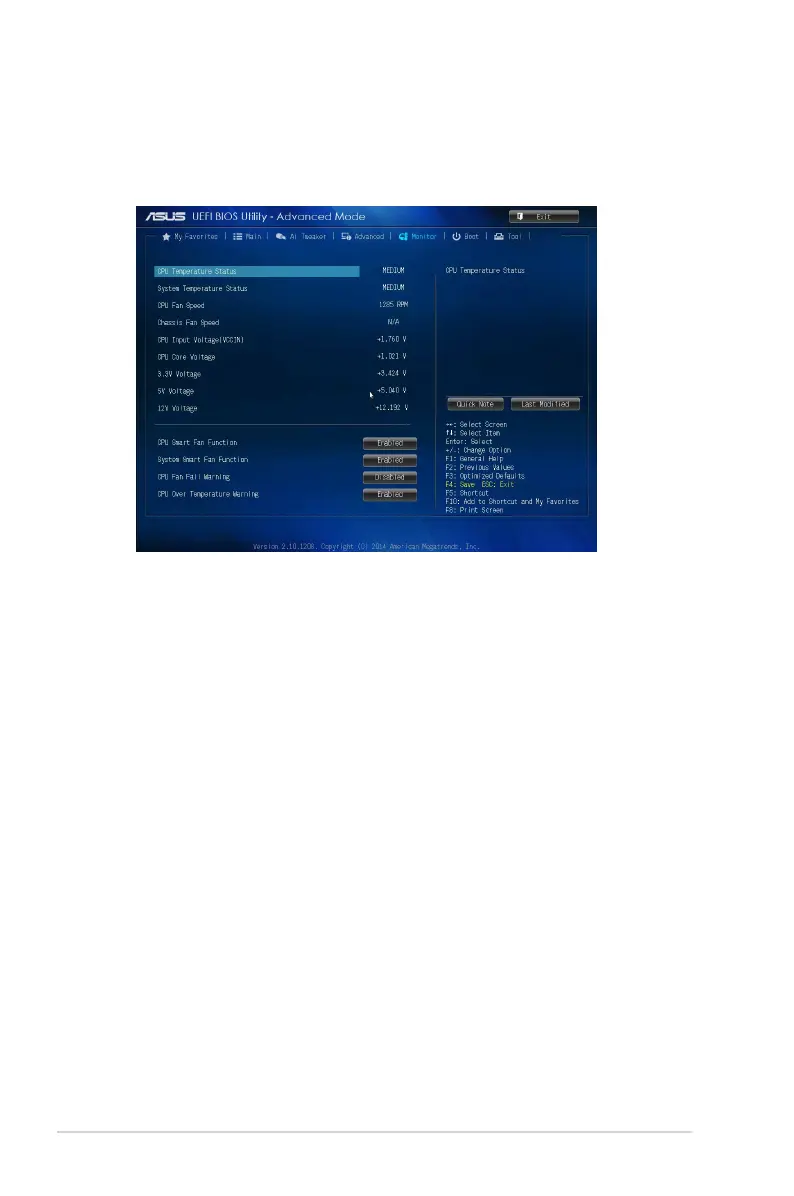

The Monitor menu displays the system temperature/power status, and allows you to change
the fan settings.
Scroll down to display the other items.
2.7.1 CPU / System Temperature Status
The onboard hardware monitor automatically detects and displays the CPU/system
temperature status. Select Ignore if you do not wish to display the cpu/system temperature
status.
2.7.2 CPU / Chassis Fan Speed [xxxx RPM] or [Ignore] /
[N/A]
The onboard hardware monitor automatically detects and displays the CPU / chassis fan
speeds in rotations per minute (RPM). If the fan is not connected to the motherboard, the eld
shows N/A. Select Ignore if you do not wish to display the detected speed.
2.7.3 CPU Input Voltage (VCCIN), 3.3V Voltage, 5V Voltage,
12V Voltage
The onboard hardware monitor automatically detects the voltage output through the onboard
voltage regulators. Select Ignore if you do not want to detect this item.
2.7.4 CPU / System Smart Fan Function
Allows you to enable or disable the Smart Fan function. Conguration options: [Disabled]
[Enabled]
2.7.5 CPU Fan Fail Warning
Allows you to enable or disable the CPU fan fail warning function. Conguration options:
[Disabled] [Enabled]

Asus H81M-CT Specifications

General

Form Factor	Micro ATX
Chipset	Intel H81
Socket	LGA 1150
Memory Slots	2
Maximum Memory	16GB
Memory Type	DDR3
PCIe x16 Slots	1
PCIe x1 Slots	2
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
USB Ports	2 x USB 3.0, 8 x USB 2.0
LAN	Realtek 8111G
Video Outputs	VGA, DVI
