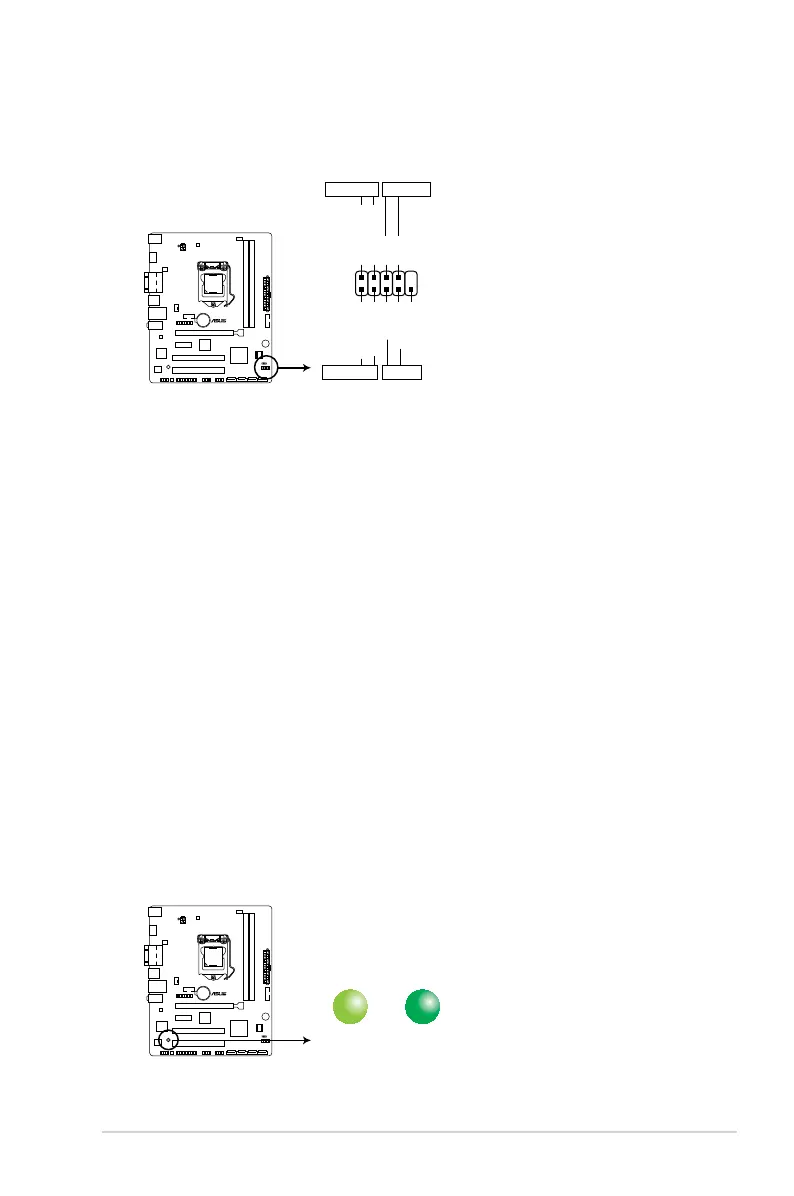

12. System panel connector (10-1 pin PANEL)
Thisconnectorsupportsseveralchassis-mountedfunctions.
• SystempowerLED(2-pinPWR_LED)
This2-pinconnectorisforthesystempowerLED.ConnectthechassispowerLED
cabletothisconnector.ThesystempowerLEDlightsupwhenyouturnonthesystem
power,andblinkswhenthesystemisinsleepmode.
• HarddiskdriveactivityLED(2-pinHDD_LED)
This2-pinconnectorisfortheHDDActivityLED.ConnecttheHDDActivityLEDcable
tothisconnector.TheHDDLEDlightsuporasheswhendataisreadfromorwritten
totheHDD.
• ATXpowerbutton/soft-offbutton(2-pinPWR_BTN)
This connector is for the system power button.
• Resetbutton(2-pinRESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without
turning off the system power.
H81M-CT
PIN 1
PWR BTN
PWR_LED+ PWR_LED- PWR GND
HDD_LED+
HDD_LED-
Ground
HWRST#
(NC)
F_PANEL
+PWR LED
+HDD_LED RESET
H81M-CT System panel connector
1.8 Onboard LEDs
1. Standby Power LED
ThemotherboardcomeswithastandbypowerLEDthatlightsuptoindicatethatthe
systemisON,insleepmode,orinsoft-offmode.Thisisareminderthatyoushould
shutdownthesystemandunplugthepowercablebeforeremovingorplugginginany
motherboardcomponent.TheillustrationbelowshowsthelocationoftheonboardLED.
SB_PWR
ON
Standby Power
Powered Off
OFF
H81M-CT
H81M-CT Onboard LED

Asus H81M-CT Specifications

General

Form Factor	Micro ATX
Chipset	Intel H81
Socket	LGA 1150
Memory Slots	2
Maximum Memory	16GB
Memory Type	DDR3
PCIe x16 Slots	1
PCIe x1 Slots	2
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
USB Ports	2 x USB 3.0, 8 x USB 2.0
LAN	Realtek 8111G
Video Outputs	VGA, DVI
