ASUS H81M-K
1-7
1.4 System memory
1.4.1 Overview
This motherboard comes with two Double Data Rate 3 (DDR3) Dual Inline Memory Module
(DIMM) sockets. A DDR3 module is notched differently from a DDR or DDR2 module. DO
NOT install a DDR or DDR2 memory module to the DDR3 slot.
Channel Sockets
Channel A DIMM_A1
Channel B DIMM_B1
H81M-K
H81M-K 240-pin DDR3 DIMM sockets
DIMM_A1 DIMM_B1
1.4.2 Memory congurations
You may install 1GB, 2GB, 4GB, and 8GB unbuffered non-ECC DDR3 DIMMs into the DIMM
sockets.
A
B
B
A

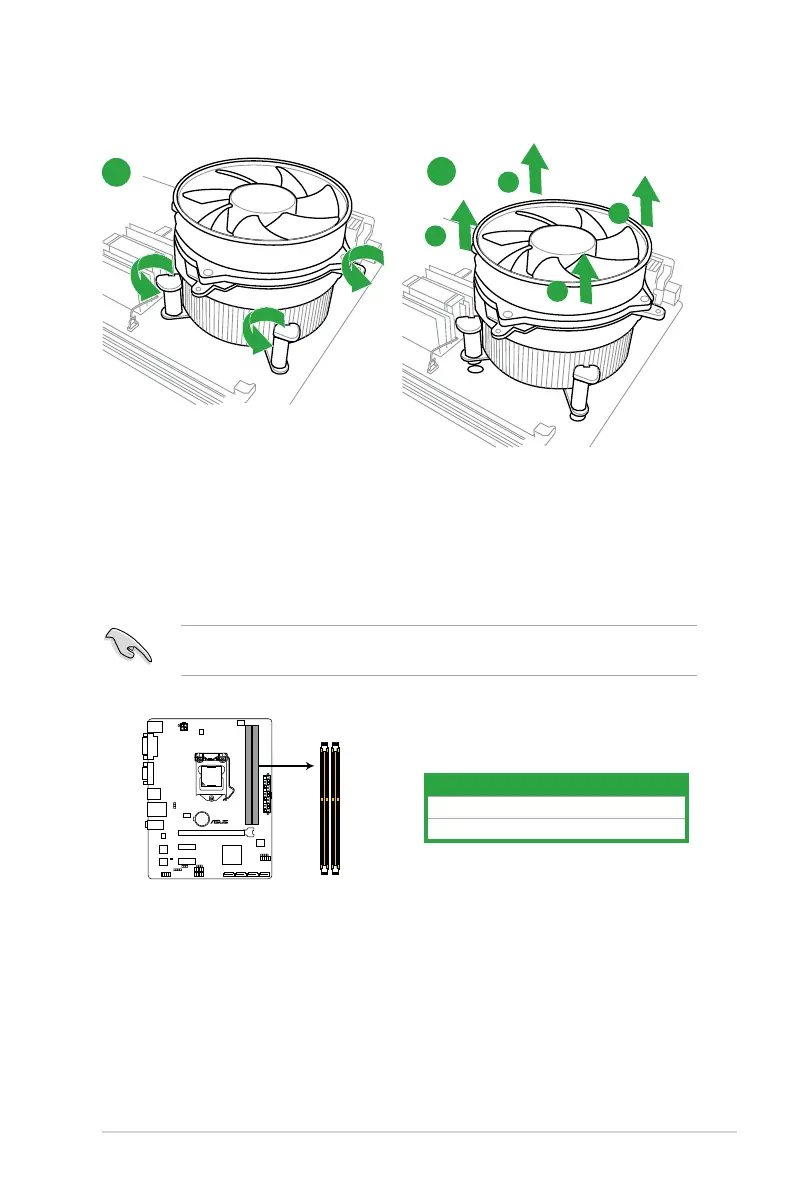

To uninstall the CPU heatsink and fan assembly
2
1
According to Intel
®
CPU spec, DIMM voltage below 1.65V is recommended to protect the
CPU.

Asus H81M-K Specifications

General

Non-ECC	Yes
Flash memory	64 MB
Memory channels	Dual-channel
Memory slots type	DIMM
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	4
Number of EATX power connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
Supported storage drive interfaces	SATA
USB 2.0 ports quantity	2
LAN controller	Realtek 8111G
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC887
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H81
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Maximum resolution	1920 x 1200 pixels
Maximum graphics card memory	1024 MB
Parallel processing technology support	Not supported
BIOS type	UEFI AMI

Weight and Dimensions

Depth	175 mm
Width	226 mm
