Asus H81M-K User Manual

2-9
ASUS H81M-K
2.3 Main menu

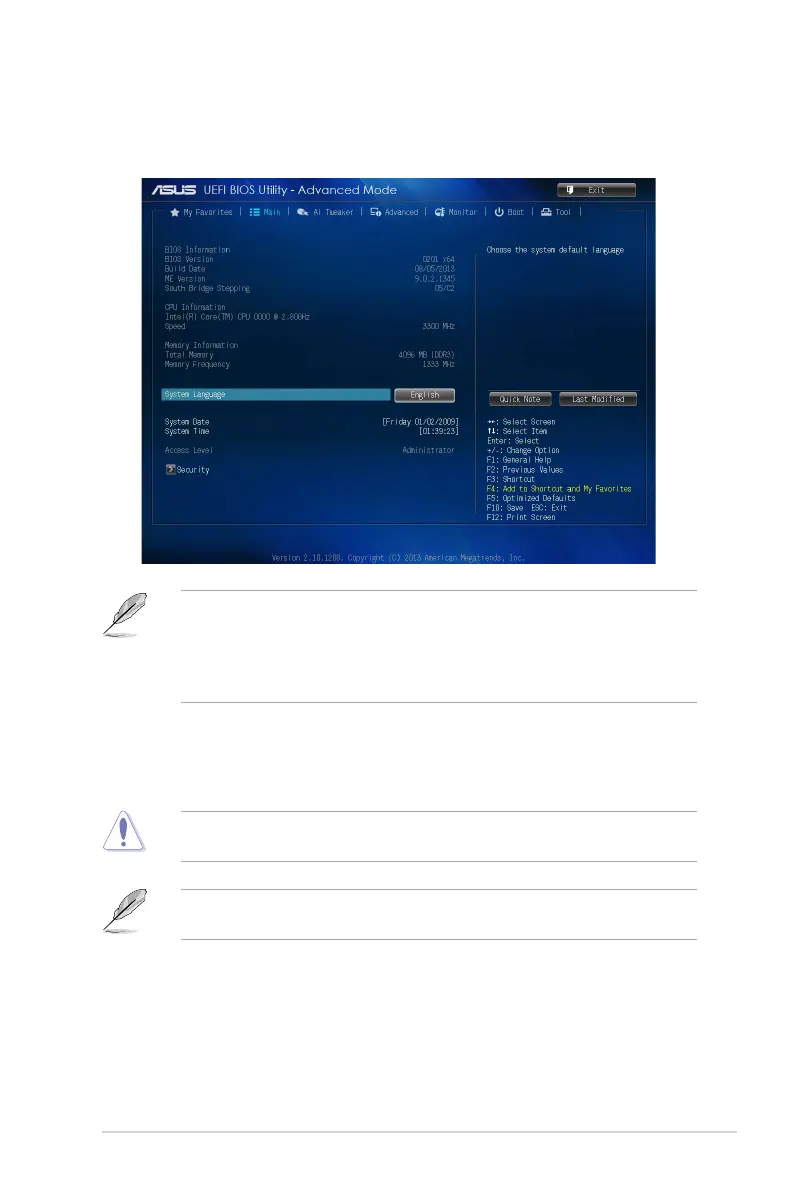

The Main menu screen appears when you enter the Advanced Mode of the BIOS Setup
program. The Main menu provides you an overview of the basic system information, and
allows you to set the system date, time, language, and security settings.
• If you have forgotten your BIOS password, erase the CMOS Real Time Clock (RTC)
RAM to clear the BIOS password. See section 1.6 Jumpers for information on how to
erase the RTC RAM.
• The
Administrator or User Password items on top of the screen show the default
Not Installed. After you set a password, these items show Installed.
2.4 Ai Tweaker menu
The Ai Tweaker menu items allow you to congure overclocking-related items.
Be cautious when changing the settings of the Ai Tweaker menu items. Incorrect eld
values can cause the system to malfunction.
The conguration options for this section vary depending on the CPU and DIMM model you
installed on the motherboard.

Asus H81M-K Specifications

General

Non-ECC	Yes
Flash memory	64 MB
Memory channels	Dual-channel
Memory slots type	DIMM
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	4
Number of EATX power connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
Supported storage drive interfaces	SATA
USB 2.0 ports quantity	2
LAN controller	Realtek 8111G
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC887
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H81
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Maximum resolution	1920 x 1200 pixels
Maximum graphics card memory	1024 MB
Parallel processing technology support	Not supported
BIOS type	UEFI AMI

Weight and Dimensions

Depth	175 mm
Width	226 mm
