2.1 Managing and updating your BIOS
Save a copy of the original motherboard BIOS le to a USB ash disk in case you need to
restore the BIOS in the future. Copy the original motherboard BIOS using the ASUS Update
utility.
2.1.1 EZ Update
EZ Update is a utility that allows you to automatically update your motherboard’s softwares,
drivers and the BIOS version easily. With this utlity, you can also manually update the saved
BIOS and select a boot logo when the system goes into POST.

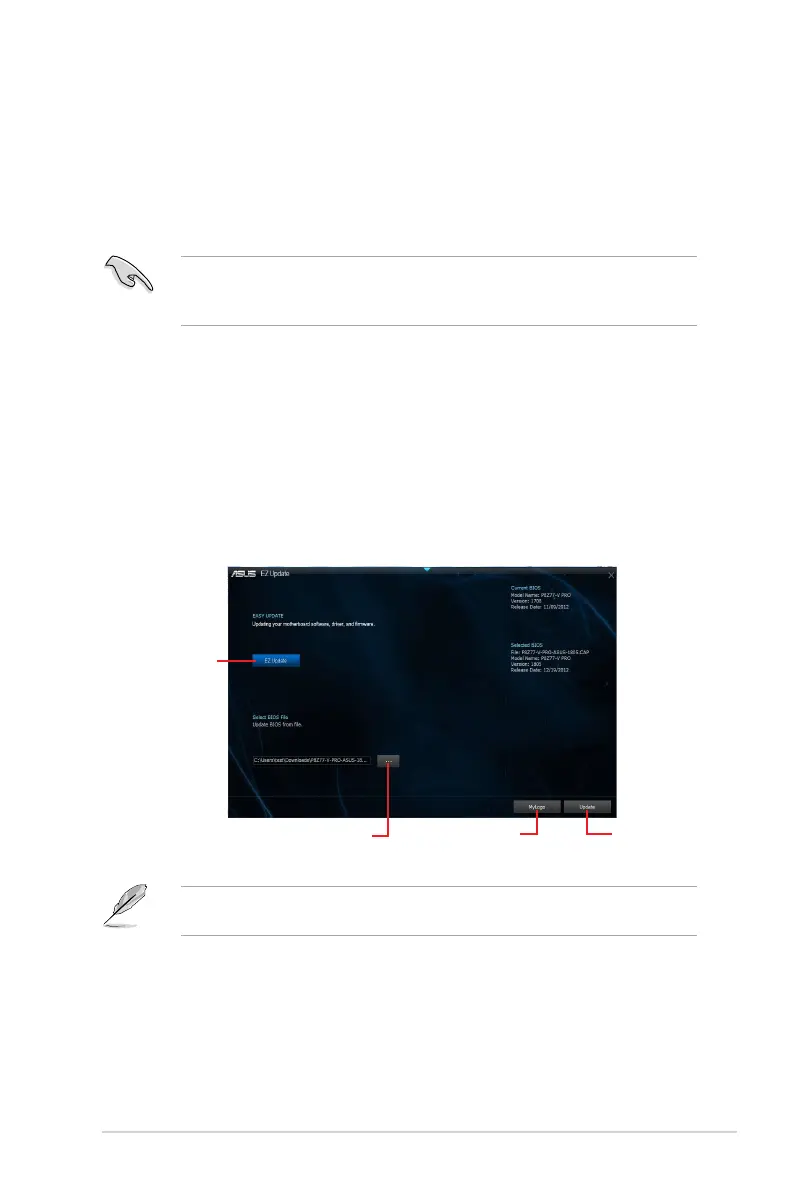

To launch EZ Update, click EZ Update on the AI Suite 3 main menu bar.
Click to automatically
update your
motherboard’s
driver, software and
rmware
Click to nd and
select the BIOS
from le
Click to select a
boot logo
Click to update
the BIOS
EZ Update requires an Internet connection either through a network or an ISP (Internet
Service Provider).

Asus H81M-K Specifications

General

Non-ECC	Yes
Flash memory	64 MB
Memory channels	Dual-channel
Memory slots type	DIMM
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	4
Number of EATX power connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
Supported storage drive interfaces	SATA
USB 2.0 ports quantity	2
LAN controller	Realtek 8111G
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC887
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H81
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Maximum resolution	1920 x 1200 pixels
Maximum graphics card memory	1024 MB
Parallel processing technology support	Not supported
BIOS type	UEFI AMI

Weight and Dimensions

Depth	175 mm
Width	226 mm
