Asus K8AE-LM User Manual

66
66
6
ASUS K8AE-LMASUS K8AE-LM
ASUS K8AE-LMASUS K8AE-LM
ASUS K8AE-LM
3.33.3
3.33.3
3.3
Removing a DDR DIMMRemoving a DDR DIMM
Removing a DDR DIMMRemoving a DDR DIMM
Removing a DDR DIMM

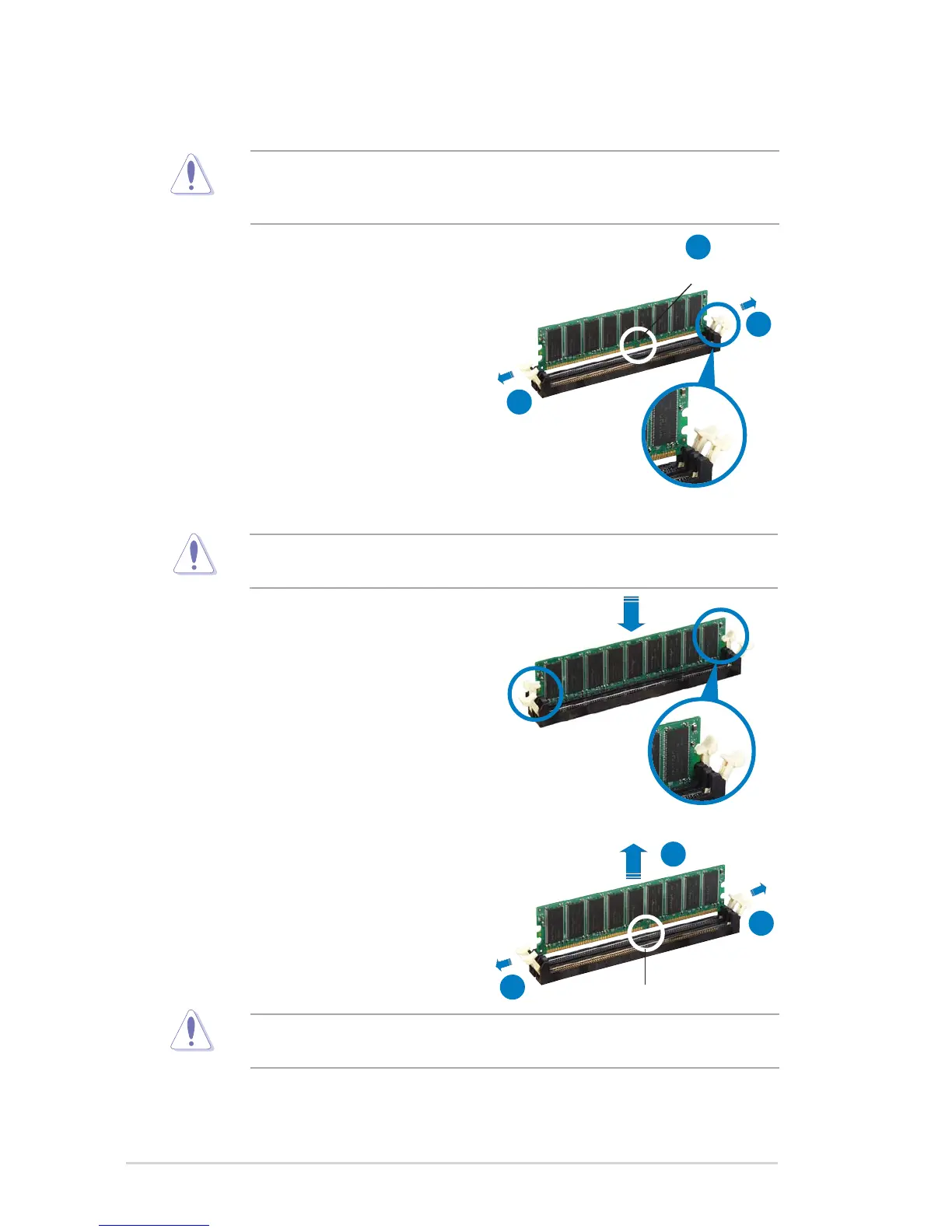

To remove a DIMM:
1. Simultaneously press the
retaining clips outward to unlock
the DIMM.
2. Remove the DIMM from the socket.
Support the DIMM lightly with your fingers when pressing the retaining
clips. The DIMM might get damaged when it flips out with extra force.
3.23.2
3.23.2
3.2
Installing a DDR DIMMInstalling a DDR DIMM
Installing a DDR DIMMInstalling a DDR DIMM
Installing a DDR DIMM
3. Firmly insert the DIMM into the
socket until the retaining clips
snap back in place and the DIMM
is properly seated.
To install a DIMM:
1. Unlock a DIMM socket by
pressing the retaining clips
outward.
2. Align a DIMM on the socket such
that the notch on the DIMM
matches the break on the
socket.
Locked retaining clipLocked retaining clip
Locked retaining clipLocked retaining clip
Locked retaining clip
Make sure to unplug the power supply before adding or removing DIMMs
or other system components. Failure to do so may cause severe damage
to both the motherboard and the components.
A DDR DIMM is keyed with a notch so that it fits in only one direction.
DO NOT force a DIMM into a socket to avoid damaging the DIMM.
Unlocked retaining clipUnlocked retaining clip
Unlocked retaining clipUnlocked retaining clip
Unlocked retaining clip
DDR DIMM notchDDR DIMM notch
DDR DIMM notchDDR DIMM notch
DDR DIMM notch
1
2
1
DDR DIMM notchDDR DIMM notch
DDR DIMM notchDDR DIMM notch
DDR DIMM notch
1
2
1

Asus K8AE-LM Specifications

General

Brand	Asus
Model	K8AE-LM
Category	Motherboard
Language	English
