5. Jumpers
5.15.1
5.15.1
5.1
Clear RTC RAM (3-pin CLRRTC)Clear RTC RAM (3-pin CLRRTC)
Clear RTC RAM (3-pin CLRRTC)Clear RTC RAM (3-pin CLRRTC)
Clear RTC RAM (3-pin CLRRTC)
This jumper allows you to clear the Real Time Clock (RTC) RAM in
CMOS. You can clear the CMOS memory of date, time, and system
setup parameters by erasing the CMOS RTC RAM data. The onboard
button cell battery powers the RAM data in CMOS, which include
system setup information such as system passwords.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Remove the onboard battery.
3. Move the jumper cap from pins 2-3 (Normal) to pins 1-2 (Clear
CMOS). Keep the cap on pins 1-2 for about 5~10 seconds, then
move the cap back to pins 2-3.
4. Reinstall the battery.
5. Plug the power cord and turn ON the computer.
6. Hold down the <F1> key during the boot process and enter BIOS
setup to re-enter data.
Except when clearing the RTC RAM, never remove the cap from the
default position. Removing the cap will cause system boot failure!

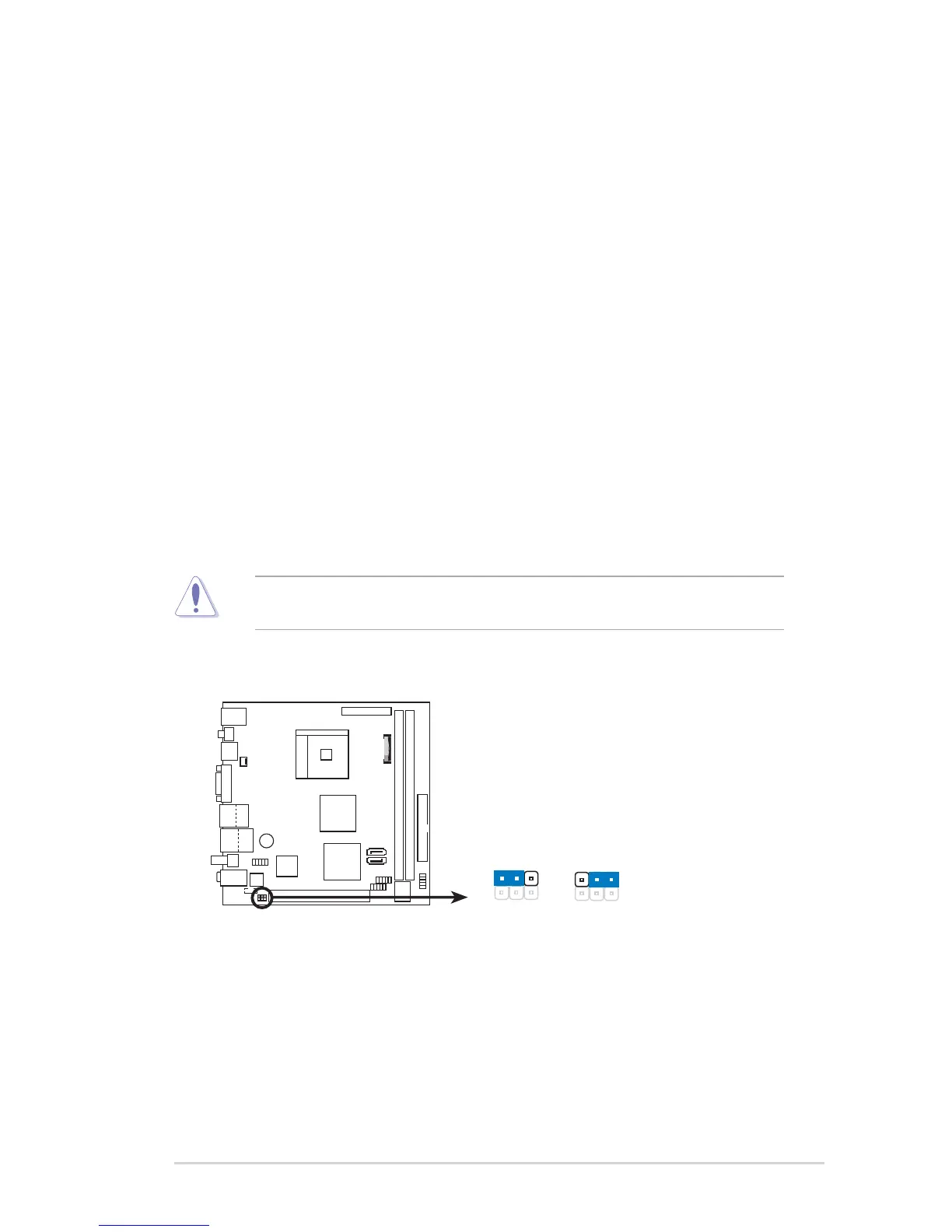

K8AE-LM
K8AE-LM Clear RTC RAM
CLRRTC
NormalClear CMOS
(Default)
12 23
