Asus K8AE-LM User Manual

44
44
4
ASUS K8AE-LMASUS K8AE-LM
ASUS K8AE-LMASUS K8AE-LM
ASUS K8AE-LM
3. System memory
3.13.1
3.13.1
3.1
Memory configurationsMemory configurations
Memory configurationsMemory configurations
Memory configurations
You may install 128 MB, 256 MB, 512 MB, and 1 GB DDR SDRAM DIMMs
into the DIMM sockets using the memory configurations in this section.
Important notes on memory configurationsImportant notes on memory configurations
Important notes on memory configurationsImportant notes on memory configurations
Important notes on memory configurations
• Installing DDR DIMMs other than the recommended configurations
may cause memory sizing error or system boot failure. Use any of
the recommended configurations on the next page.
• Install only
identical identical
identical identical
identical (the same type and size) DDR DIMM pairs
using the recommended configurations.
• Make sure that the memory frequency matches the CPU FSB
(Front Side Bus). Refer to the Memory frequency/CPU FSB
synchronization table on the next page.
• This motherboard does not support double-sided 16-bit DDR DIMMs.
• Do not create a three-DIMM configuration in dual-channel mode. The
third DIMM is ignored in the dual-channel operation.
The motherboard comes with four Double Data Rate (DDR) Dual Inline
Memory Module (DIMM) sockets.

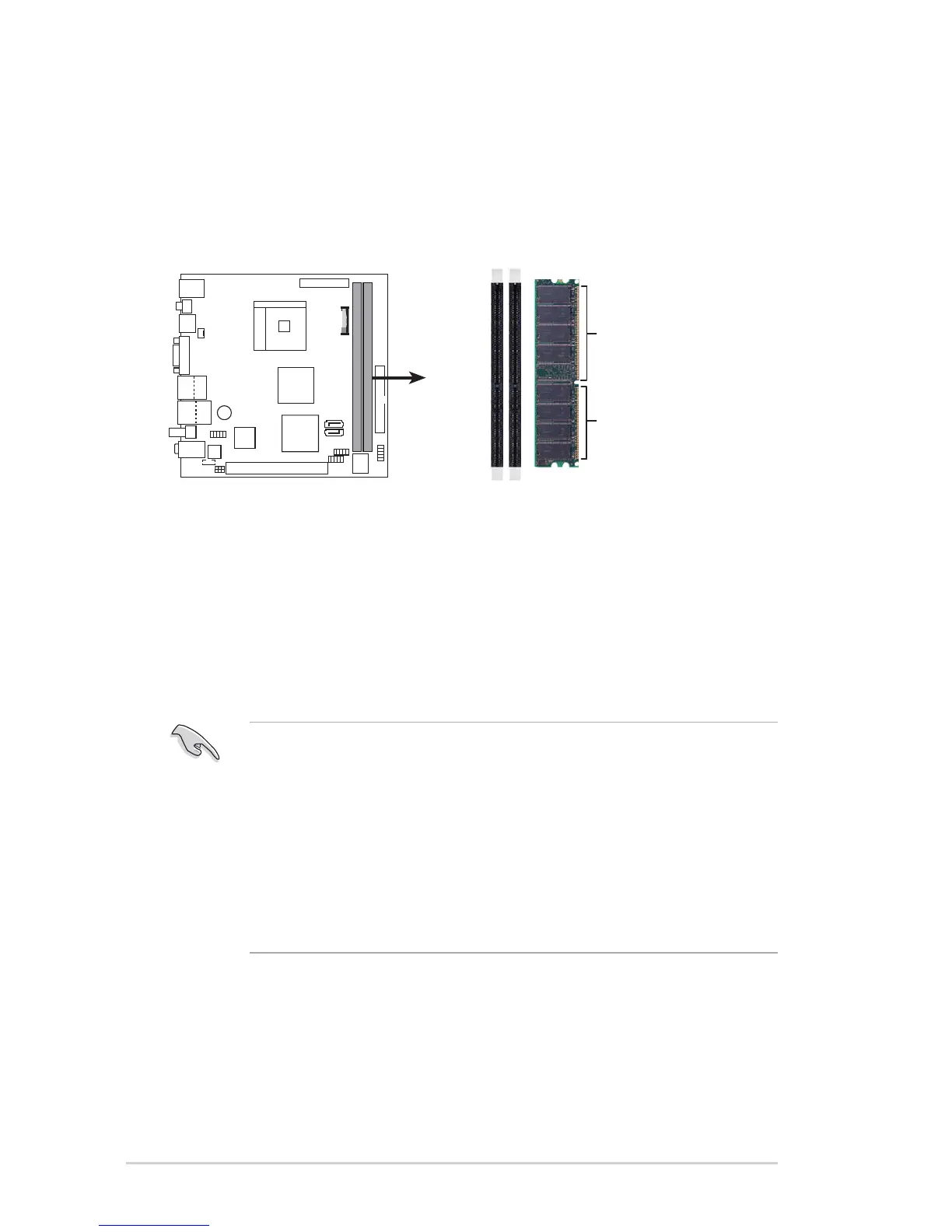

The following figure illustrates the location of the DDR DIMM sockets.
K8AE-LM
K8AE-LM 184-pin DDR DIMM sockets
80 Pins 104 Pins
DIMM1 DIMM2
