ASUS K8AE-LMASUS K8AE-LM
ASUS K8AE-LMASUS K8AE-LM
ASUS K8AE-LM
1313
1313
13
Pin 20 on the IDE connector is removed to match the covered hole
on the Ultra DMA cable connector. This prevents incorrect insertion
when you connect the IDE cable.
Use the 80-conductor IDE cable for Ultra DMA 100/66 IDE devices.
6.26.2
6.26.2
6.2
Internal connectorsInternal connectors
Internal connectorsInternal connectors
Internal connectors
This section describes and illustrates the internal connectors on the
motherboard.
1.1.
1.1.
1.
IDE connector (40-1 pin IDE1)IDE connector (40-1 pin IDE1)
IDE connector (40-1 pin IDE1)IDE connector (40-1 pin IDE1)
IDE connector (40-1 pin IDE1)
This connector is for an Ultra DMA 100/66 signal cable. The Ultra
DMA 100/66 signal cable has three connectors: a blue connector for
the primary IDE connector on the motherboard, a black connector for
an Ultra DMA 100/66 IDE slave device (optical drive/hard disk drive),
and a gray connector for an Ultra DMA 100/66 IDE master device (hard
disk drive). If you install two hard disk drives, you must configure the
second drive as a slave device by setting its jumper accordingly. Refer
to the hard disk documentation for the jumper settings.

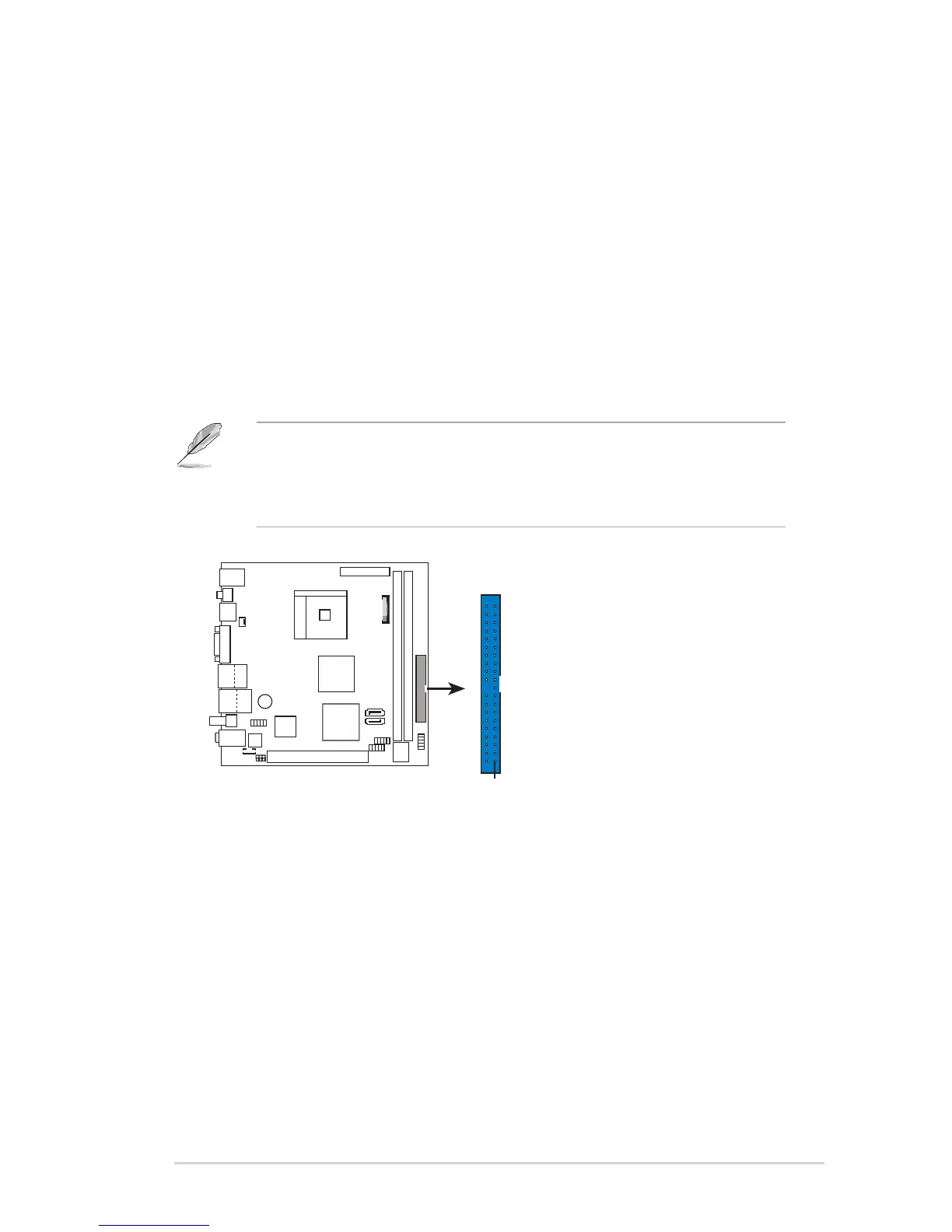

K8AE-LM
K8AE-LM IDE connector
NOTE: Orient the red markings
(usually zigzag) on the IDE
ribbon cable to PIN 1.
IDE1
PIN 1
