Channel Sockets
Channel A DIMM_A1 and DIMM_A2
Channel B DIMM_B1 and DIMM_B2
2.4 System memory
2.4.1 Overview
The motherboard comes with four Double Data Rate 2 (DDR2) Dual Inline Memory
Modules (DIMM) sockets.
A DDR2 module has the same physical dimensions as a DDR DIMM but has a
240-pin footprint compared to the 184-pin DDR DIMM. DDR2 DIMMs are notched
differently to prevent installation on a DDR DIMM socket.

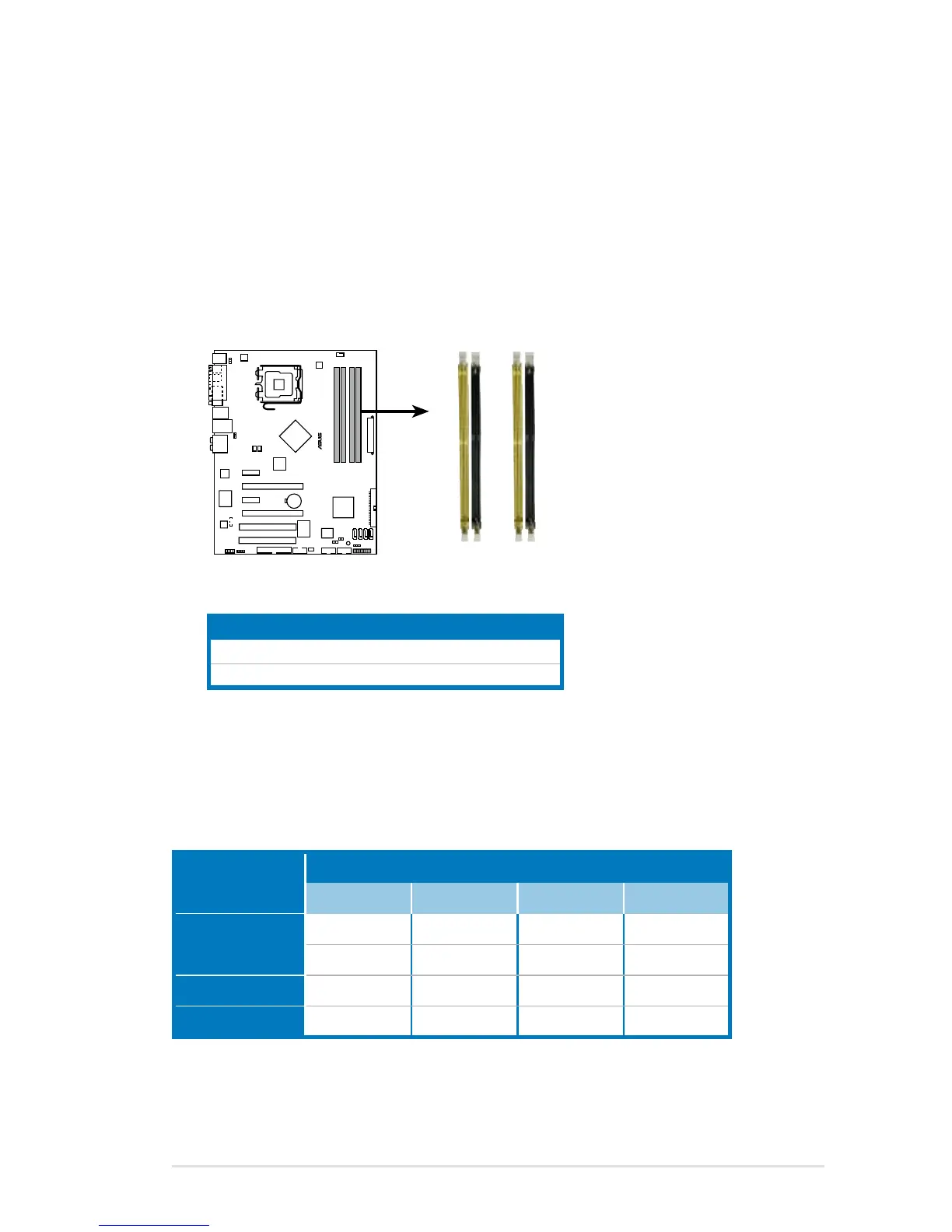

The gure illustrates the location of the DDR2 DIMM sockets:
P5N-D
®
P5N-D 240-pin DDR2 DIMM sockets
DIMM_A2 DIMM_A1 DIMM_B2 DIMM_B1
2.4.2 Memory congurations
You may install 512 MB, 1 GB, and 2 GB unbuffered non-ECC DDR2 DIMMs into
the DIMM sockets.
Mode
Sockets
DIMM_A1 DIMM_B1 DIMM_A2 DIMM_B2
Single-Channel
- Populated -
Populated - - -
Dual-channel (1) Populated Populated - -
Dual-channel (2) Populated Populated Populated Populated
