2-36 Chapter 2: Hardware information
2.7.3 Installing the optional fan
Install the optional fan only if you are using a passive cooler or a water cooler.
Installing the optional fan with an active CPU cooler will interfere with the airow
and destabilize the system.

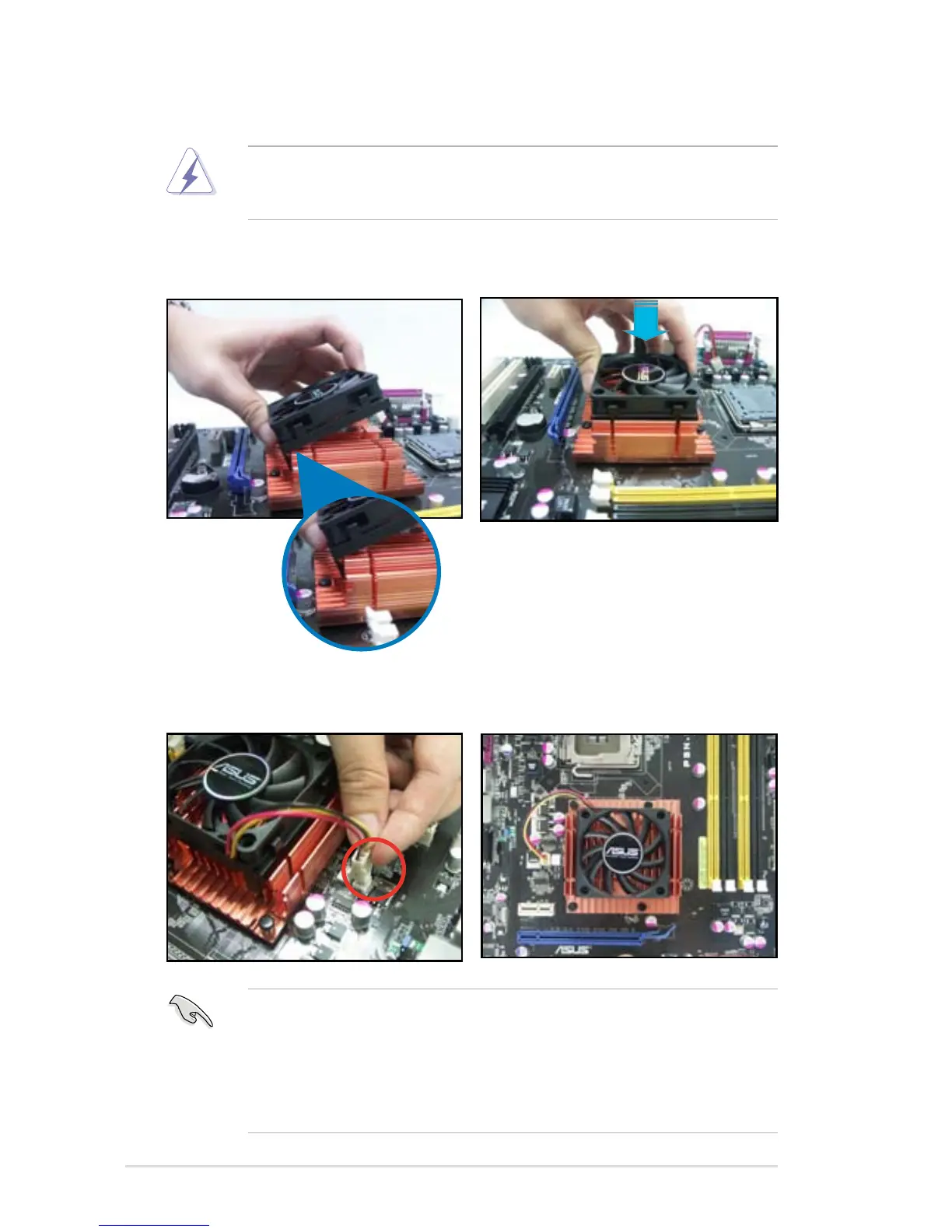

1. Fit the fan to the grooved edge of
the heatsink.
2. Carefully push down the fan until
it snugly ts the heatsink.
3. Connect the fan cable to the
CHA_FAN connector.
4. The photo shows the fan installed
on the motherboard.
• Plug the optional fan cable only to the CHA_FAN1 connector on the
motherboard to minimize the fan speed for quiet fan operation.
• Make sure the optional fan is installed correctly to prevent damage to the
fan and motherboard components.
• We strongly recommend that you install the optional fan when using a
passive cooler or a water cooler.
