Asus P8B75-M LX User Manual

ASUS P8B75-M LX 1-7

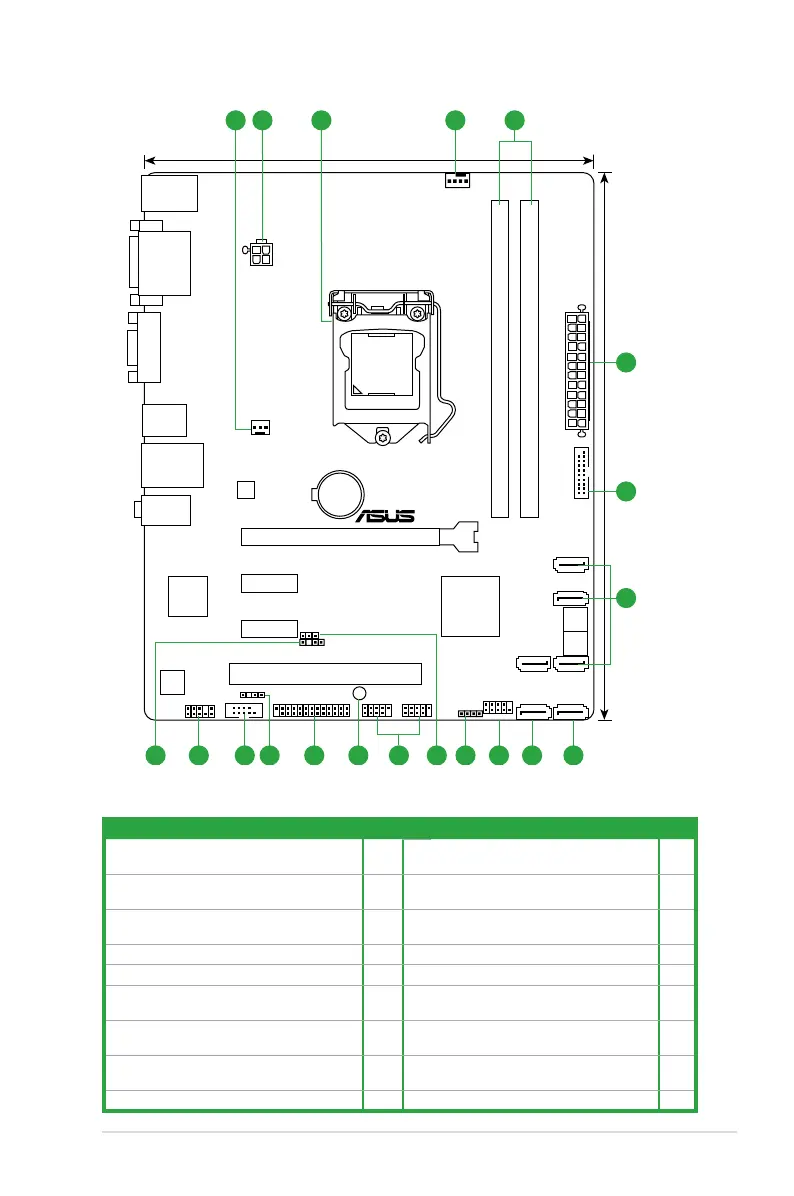

1.5.3 Motherboard layout
1.5.4 Layout contents
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1. CPU and chassis fan connectors (4-pin
CPU_FAN, 3-pin CHA_FAN)
1-27 10. Clear RTC RAM (3-pin CLRTC) 1-22
2. ATX power connectors (24-pin EATXPWR,
4-pin ATX12V)
1-26 11. USB 2.0 connectors (10-1 pin USB56,
USB78)
1-30
3. Intel
®
LGA1155 CPU socket 1-8 12. Onboard LED (SB_PWR) 1-31
4. DDR3 DIMM slots 1-13 13. LPT connector (26-1 pin LPT) 1-27
5. USB 3.0 connector (20-1 pin USB3_34) 1-30 14 Digital audio connector (4-1 pin SPDIF_OUT) 1-25
6. Intel
®
B75 Serial ATA 3.0Gb/s connectors
(7-pin SATA3G_1~5 [blue])
1-29 15. Serial port connector (10-1 pin COM1) 1-26
7. Intel
®
B75 Serial ATA 6.0Gb/s connectors
(7-pin SATA6G_1 [gray])
1-29 16. Front panel audio connector (10-1 pin AAFP) 1-25
8. System panel connector (10-1 pin F_PANEL) 1-28 17. Chassis intrusion connector (4-1 pin
CHASSIS)
1-31
9. Speaker connector (4-pin SPEAKER) 1-28
P8B75-M LX
PCIEX16_1
PCIEX1_1
PCIEX1_2
PCI1
AAFP
EATXPWR
CPU_FAN
CHA_FAN
Lithium Cell
CMOS Power
Super
I/O
VIA
VT1708S
KBMS_USB34
8Mb
BIOS
8Mb
BIOS
SB_PWR
CLRTC
19.8cm(7.8in)
24.4cm(9.6in)
Intel
®
B75
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module)
SATA3G_1
SATA3G_2
SATA3G_3SATA3G_4
SATA6G_1SATA3G_5
AUDIO
USB3_12
LAN_USB12
SPDIF_OUT
LPT
LGA1155
USB3_34
F_PANEL
SPEAKER
USB56USB78
COM1
CHASSIS
RTL
8111F
ATX12V
VGA
DVI
1 12 3 4
611 79 8121315 1416 1017
2
5
6

Asus P8B75-M LX Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2000, 2133, 2200 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron® G
Number of SATA II connectors	5
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	4
Audio chip	VIA VT1708S
Component for	PC
Power source type	ATX
Motherboard chipset	Intel B75
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA II, SATA III
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1024 MB
Parallel processing technology support	LucidLogix Virtu
PCI Express slots version	2.0, 3.0
Cables included	SATA
LAN controller	Realtek RTL8111F
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	2.0a
BIOS memory size	128 Mbit

Weight and Dimensions

Depth	198 mm
Width	244 mm
