Chapter 2: BIOS information2-16
Be cautious when changing the settings of the Advanced menu items. Incorrect eld values
can cause the system to malfunction.
2.5 Advanced menu
The Advanced menu items allow you to change the settings for the CPU and other system
devices.
Main
Ai Tweaker
Advanced Monitor Boot Tool
Exit
Trusted Computing (TPM) settings

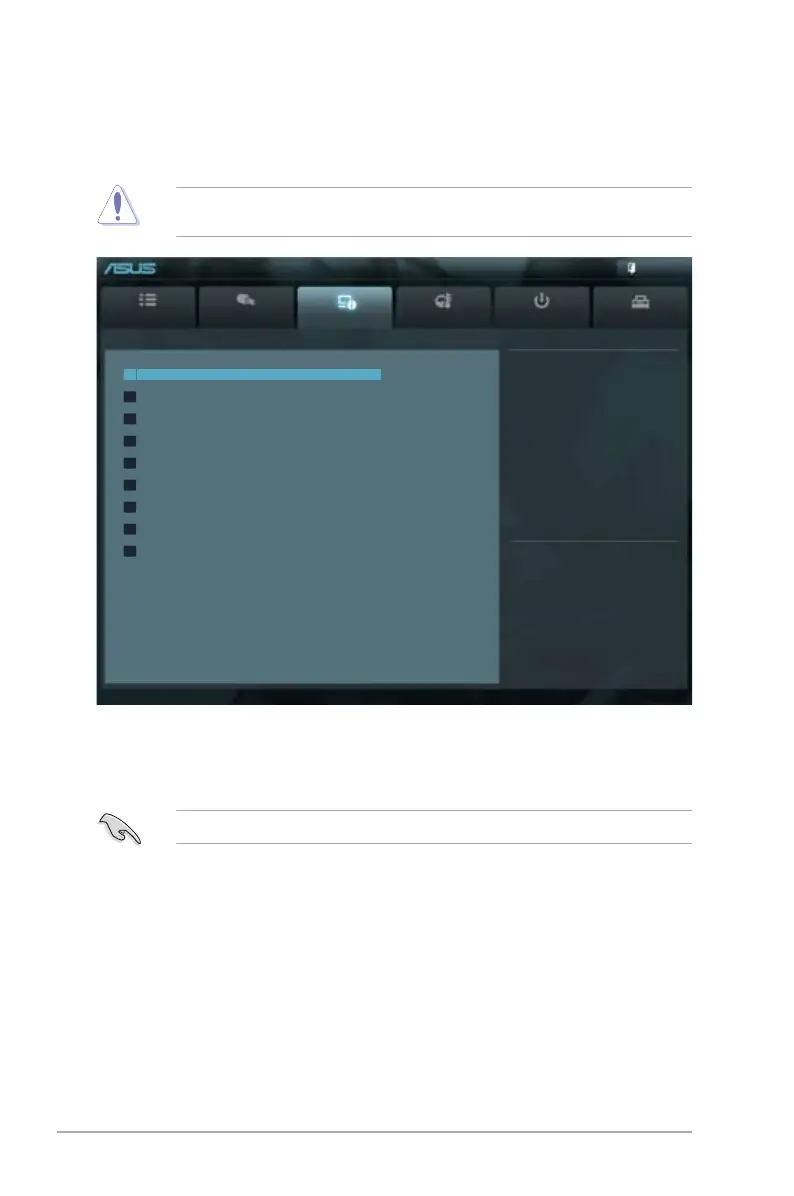

UEFI BIOS Utility - Advanced Mode
Version 2.10.1208. Copyright (C) 2012 American Megatrends, Inc.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Shortcut
F5: Optimized Defaults
F6: ASUS Ratio Boost
F10: Save ESC: Exit
F12: Print Screen
> CPU Conguration
> PCH Conguration
> SATA Conguration
> System Agent Conguration
> AMT Conguration
> USB Conguration
> Onboard Devices Conguration
> APM
> Network Stack
2.5.1 CPU Conguration
The items in this menu show the CPU-related information that the BIOS automatically
detects.
The items shown in submenu may be different due to the CPU you installed.
Intel Adaptive Thermal Monitor [Enabled]
[Enabled] Enables the overheated CPU to throttle its clock speed to cool down.
[Disabled] Disables the CPU thermal monitor function.
Active Processor Cores [All]
Allows you to choose the number of CPU cores to activate in each processor package.
Conguration options: [All] [1] [2] [3]
Limit CPUID Maximum [Disabled]
[Enabled] Allows legacy operating systems to boot even without support for CPUs
with extended CPUID functions.
[Disabled] Disables this function.

Asus P8B75-M LX Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2000, 2133, 2200 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron® G
Number of SATA II connectors	5
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	4
Audio chip	VIA VT1708S
Component for	PC
Power source type	ATX
Motherboard chipset	Intel B75
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA II, SATA III
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1024 MB
Parallel processing technology support	LucidLogix Virtu
PCI Express slots version	2.0, 3.0
Cables included	SATA
LAN controller	Realtek RTL8111F
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	2.0a
BIOS memory size	128 Mbit

Weight and Dimensions

Depth	198 mm
Width	244 mm
