Chapter 2: BIOS information2-12

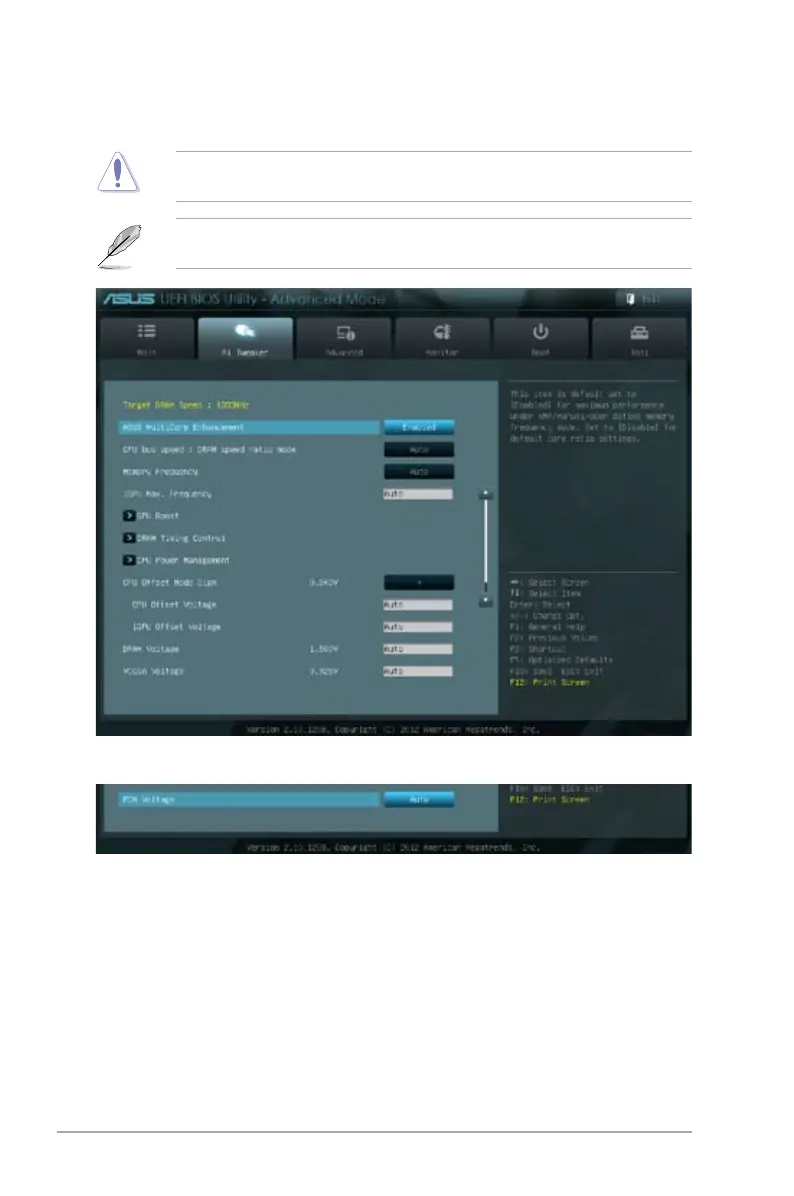

2.4 Ai Tweaker menu
The Ai Tweaker menu items allow you to congure overclocking-related items.
Be cautious when changing the settings of the Ai Tweaker menu items. Incorrect eld
values can cause the system to malfunction.
The conguration options for this section vary depending on the CPU and DIMM model you
installed on the motherboard.
Target DRAM Speed : xxxxMHz
Displays the current DRAM speed.
2.4.1 ASUS MultiCore Enhancement [Enabled].
[Enabled] Sets to [Enabled] for maximum performance under XMP/Manual/User-
dened memory frequency mode.
[Disabled] Set to [Disabled] for default core ratio settings.
2.4.2 CPU bus speed: DRAM speed ratio mode [Auto]
Allows you to set the CPU bus speed to DRAM speed ratio mode. Conguration options:
[Auto] [100:100] [100:133]
Scroll down to display the following items:

Asus P8B75-M LX Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2000, 2133, 2200 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron® G
Number of SATA II connectors	5
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	4
Audio chip	VIA VT1708S
Component for	PC
Power source type	ATX
Motherboard chipset	Intel B75
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA II, SATA III
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1024 MB
Parallel processing technology support	LucidLogix Virtu
PCI Express slots version	2.0, 3.0
Cables included	SATA
LAN controller	Realtek RTL8111F
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	2.0a
BIOS memory size	128 Mbit

Weight and Dimensions

Depth	198 mm
Width	244 mm
