Asus P8B75-M LX User Manual

1-28 Chapter 1: Product introduction

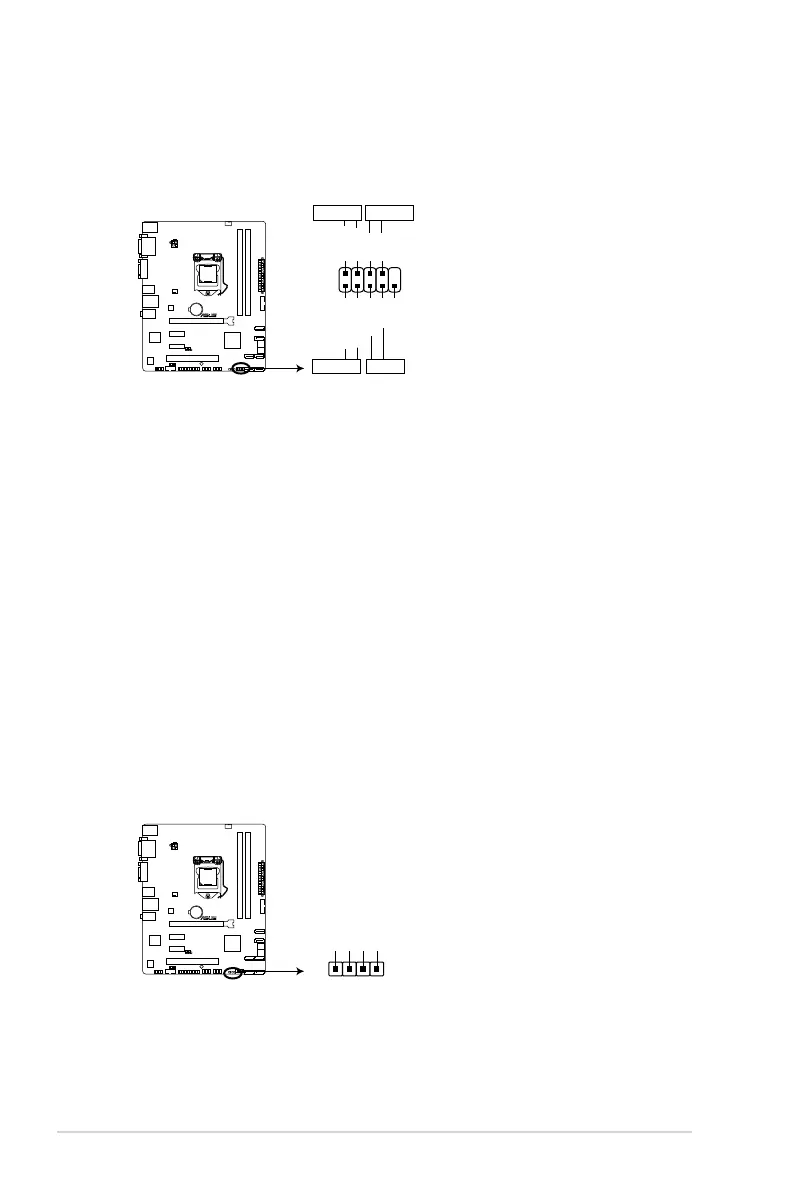

7. System panel connector (10-1 pin F_PANEL)
This connector supports several chassis-mounted functions.
• System power LED (2-pin PLED)
This 2-pin connector is for the system power LED. Connect the chassis power LED
cable to this connector. The system power LED lights up when you turn on the system
power, and blinks when the system is in sleep mode.
• Hard disk drive activity LED (2-pin +HDLED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable
to this connector. The IDE LED lights up or ashes when data is read from or written to
the HDD.
• ATX power button/soft-off button (2-pin PWRBTN)
This 2-pin connector is for the system power button.
• Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without
turning off the system power.
8. Speaker connector (4-pin SPEAKER)
The 4-pin connector is for the chassis-mounted system warning speaker. The speaker
allows you to hear system beeps and warnings.
P8B75-M LX
P8B75-M LX System panel connector
PIN 1
PWR BTN
PLED+ PLED- PWR GND
HD_LED+
HD_LED-
Ground
Reset
F_PANEL
PWR LED
+HD_LED RESET
P8B75-M LX
P8B75-M LX Speaker Out Connector
+5V GND GND Speaker Out
SPEAKER
PIN 1

Asus P8B75-M LX Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2000, 2133, 2200 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron® G
Number of SATA II connectors	5
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	4
Audio chip	VIA VT1708S
Component for	PC
Power source type	ATX
Motherboard chipset	Intel B75
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA II, SATA III
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1024 MB
Parallel processing technology support	LucidLogix Virtu
PCI Express slots version	2.0, 3.0
Cables included	SATA
LAN controller	Realtek RTL8111F
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	2.0a
BIOS memory size	128 Mbit

Weight and Dimensions

Depth	198 mm
Width	244 mm
