ASUS P8H67-M EVO 3-17
Chapter 3
3.5.5 SATA Conguration
While entering Setup, the BIOS automatically detects the presence of SATA devices. The
SATA Port items show Not Present if no SATA device is installed to the corresponding SATA
port.
SATA Mode [IDE Mode]
Allows you to set the SATA conguration.
[Disabled] Disables the SATA function.
[IDE Mode] Set to [IDE Mode] when you want to use the Serial ATA hard disk drives as
Parallel ATA physical storage devices.
[AHCI Mode] Set to [AHCI Mode] when you want the SATA hard disk drives to use the
AHCI (Advanced Host Controller Interface). The AHCI allows the onboard
storage driver to enable advanced Serial ATA features that increases
storage performance on random workloads by allowing the drive to
internally optimize the order of commands.
[RAID Mode] Set to [RAID Mode] when you want to create a RAID conguration from the
SATA hard disk drives.
Serial-ATA Controller 0/1 [Enhanced]
Allows you to choose the mode of Serial-ATA Controller 0/1.
Conguration options: [Disabled] [Enhanced] [Compatible]
S.M.A.R.T. Status Check [Enabled]
S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a monitor system. When
read/write of your hard disk errors occur, this feature allows the hard disk to report warning
messages during the POST.
Conguration options: [Enabled] [Disabled]
Main
Ai Tweaker
Advanced Monitor Boot Tool
Exit

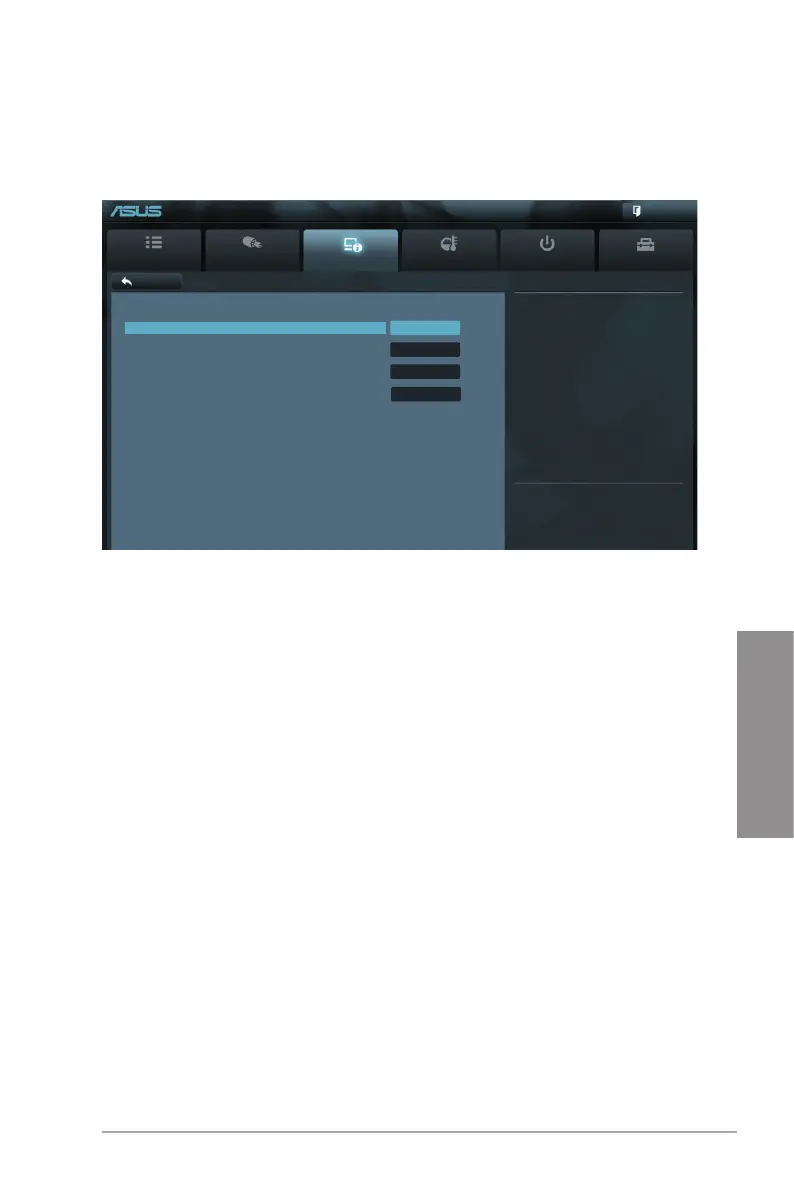

(1) IDE Mode. (2) AHCI Mode. (3)
RAID Mode.
Back Advanced\ SATA Conguration >
EFI BIOS Utility - Advanced Mode
SATA Conguration
SATA Mode IDE Mode
Serial-ATA Controller 0 Enhanced
Serial-ATA Controller 0 Enhanced
S.M.A.R.T. Status Check Enabled
SATA6G_1 (Gray) Not Present
SATA6G_2 (Gray) Not Present
SATA3G_3 (Blue) FUJITSU MHV2200BT PL (200.0GB)
SATA3G_4 (Blue) ATAPI DVD D DH16D2S ATAPI
SATA3G_5 (Blue) Not Present
SATA3G_6 (Blue) Not Present
