Asus P8Z68-V LX User Manual

ASUS P8Z68-V LX 1-11

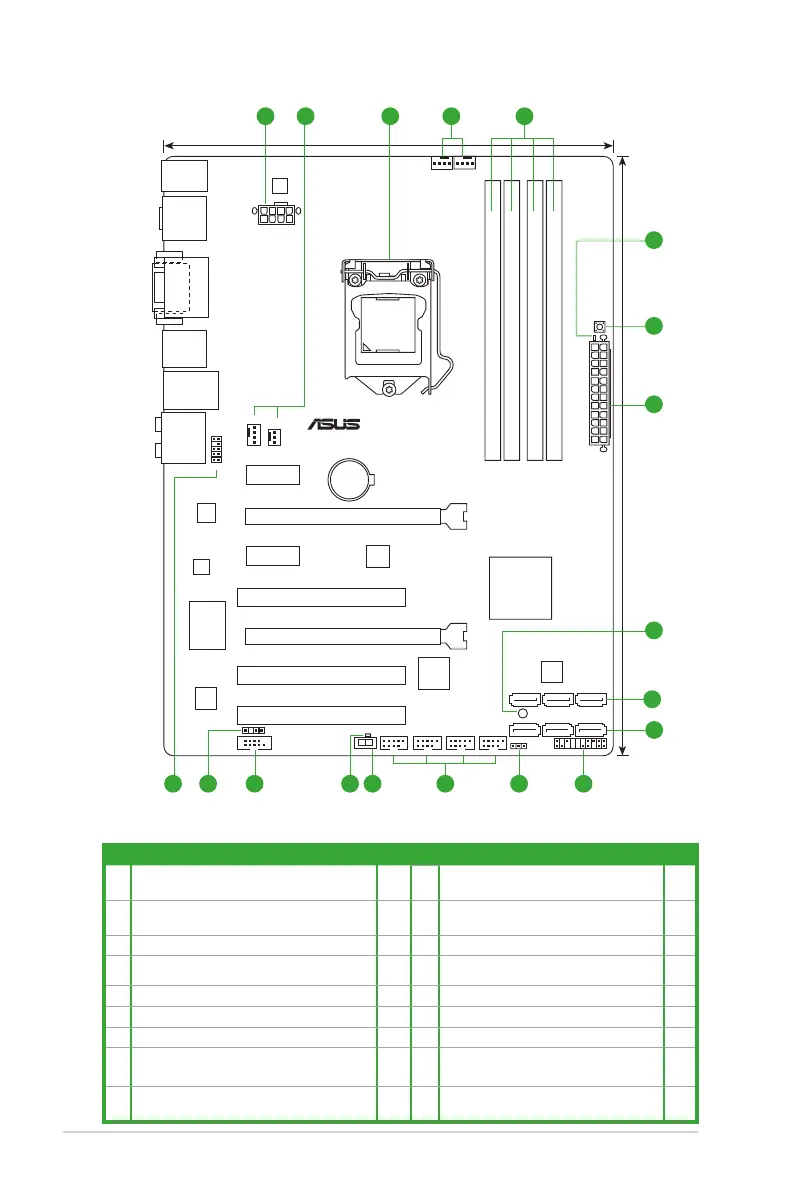

1.5.3 Motherboard layout
1.5.4 Layout contents
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1.
ATX power connectors
(24-pin EATXPWR, 8-pin EATX12V)
1-33 10 System panel connector (20-8 pin PANEL) 1-34
2.
CPU, Chassis and power fan connectors (4-pin
CPU_FAN, 4-pin CHA_FAN1/2, 3-pin PWR_FAN)
1-32 11. Clear RTC RAM (3-pin CLRTC) 1-26
3. Intel
®
CPU socket 1-12 12 USB connectors (10-1 pin USB5~12) 1-32
4. DDR3 DIMM sockets 1-17
.
13.
TPU switch 1-36
5. DRAM LED 1-37 14 TPU LED (ELED 730) 1-37
6. MemOK! switch 1-35 15. Serial port connectors (10-1 pin COM1) 1-29
7. Onboard LED (SB_PWR) 1-36 16. Digital audio connector (4-1 pin SPDIF_OUT) 1-30
8.
Intel
®
Z68 Serial ATA 3.0 Gb/s connectors
(7-pin SATA3G_1–4 [blue])
1-30 17. Front panel audio connector (10-1 pin AAFP) 1-29
9.
Intel
®
Z68 Serial ATA 6.0 Gb/s connectors
(7-pin SATA6G_1/2 [gray])
1-31
P8Z68-V LX
PCIEX16_1
PCIEX16_2
PCIEX1_2
PCIEX1_1
PCI1
PCI2
PCI3
USB56USB78USB910USB1112
PANEL
SPDIF_OUT
AAFP
CPU_FAN
CHA_FAN2
CHA_FAN1
PWR_FAN
Lithium Cell
CMOS Power
Super
I/O
ALC
887
EPU
RTL
8111E
TPU
COM1
64Mb
BIOS
SB_PWR
CLRTC
22.9cm(9.0in)
30.5cm(12.0in)
Intel
®
Z68
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_A2 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module) DDR3 DIMM_B2 (64bit, 240-pin module)
USB3_12
ASM
1083
ASM
1042
SATA3G_2 SATA3G_3 SATA3G_4
SATA3G_1
SATA6G_2 SATA6G_1
MemOK!
DRAM_LED
TPU
ELED730
EATXPWR
EATX12V
LGA1155
AUDIO
KB_USB34
LAN1_USB12
SPDIF_O2
HDMI
DVI_VGA
1 2 423
1
5
6
8
7
1517 1314 12 11 10
16
9
