1-24 Chapter 1: Product introduction
DIMM notch
1
1
2
1.7.4 Removing a DIMM
Follow these steps to remove a DIMM.
2. Remove the DIMM from the socket.
1.7.3 Installing a DIMM
3. Firmly insert the DIMM into the socket
until the retaining clips snap back in
place and the DIMM is properly seated.
A DIMM is keyed with a notch so that it ts in only one direction. DO NOT force a DIMM into
a socket in the wrong direction to avoid damaging the DIMM.
Support the DIMM lightly with your
ngers when pressing the retaining
clip. The DIMM might get damaged
when it ips out with extra force.
Ensure to unplug the power supply before adding or removing DIMMs or other system
components. Failure to do so may cause severe damage to both the motherboard and the
components.
1. Press the retaining clips outward to
unlock the DIMM.
Locked Retaining Clip
3
Unlocked retaining clip
1
DIMM notch
2
1
DIMM slot key

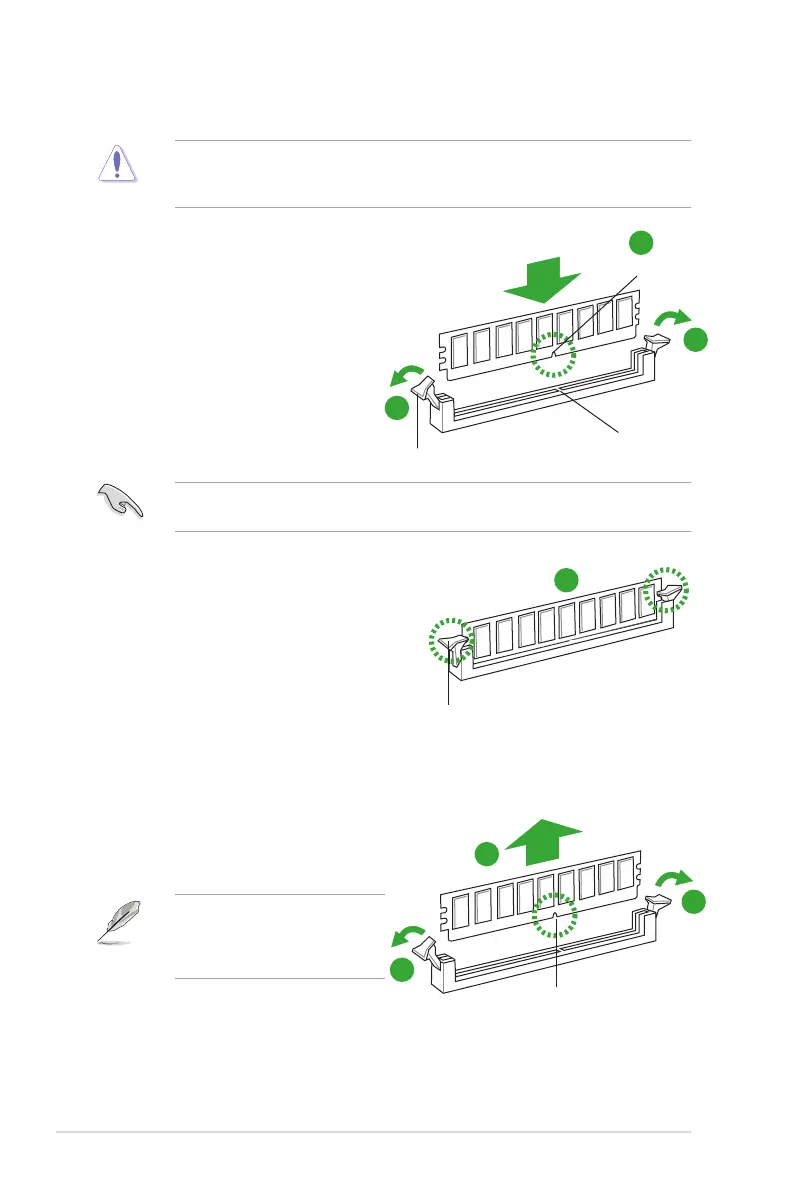

To install a DIMM
1. Unlock a DIMM socket by pressing the
retaining clips outward.
2. Align a DIMM on the socket such that
the notch on the DIMM matches the
DIMM slot key on the socket.

Asus P8Z68-V LX Specifications

General

Form Factor	ATX
Chipset	Intel Z68
Socket	LGA 1155
Max Memory	32GB
Memory Type	DDR3
Memory Standard	DDR3 2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333/1066
PCI Express x16	1
PCI Express x1	2
PCI Slots	3
SATA 6Gb/s	2
SATA 3Gb/s	4
USB 3.0 Ports	2
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
LAN	Realtek 8111E, 1 x Gigabit LAN Controller(s)
RAID Support	RAID 0, 1, 5, 10
Memory Slots	4
