Asus P8Z68-V LX User Manual

1-36 Chapter 1: Product introduction
1.12 Onboard LEDs
1. Standby Power LED
The motherboard comes with a standby power LED that lights up to indicate that the
system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should
shut down the system and unplug the power cable before removing or plugging in any
motherboard component. The illustration below shows the location of the onboard LED.
SB_PWR
ON
Standby Power Powered Off
OFF
P8Z68-V LX
P8Z68-V LX Onboard LED
2. TPU (GPU Boost) switch
Turning this switch to Enable will automatically optimize the system for fast, yet stable
clock speeds.
• For ensuring the system performance, turn the switch setting to Enable
when the system is powered off.
• When the TPU switch is set to Enable, it can be used as GPU Boost
switch.
• The TPU LED (ELED 730) near the TPU switch lights when the switch setting
is turned to Enable. Refer to section 1.12 Onboard LEDs for the exact location
of the TPU LED.
• If you change the switch setting to Enable under the OS environment, the
TPU function will be activated after the next system bootup.
• You may use the TurboV and Auto Tuning feature in the TurboV EVO
application, adjust the BIOS setup program, or enable the TPU switch at the
same time. However, the system will use the last setting you have made.

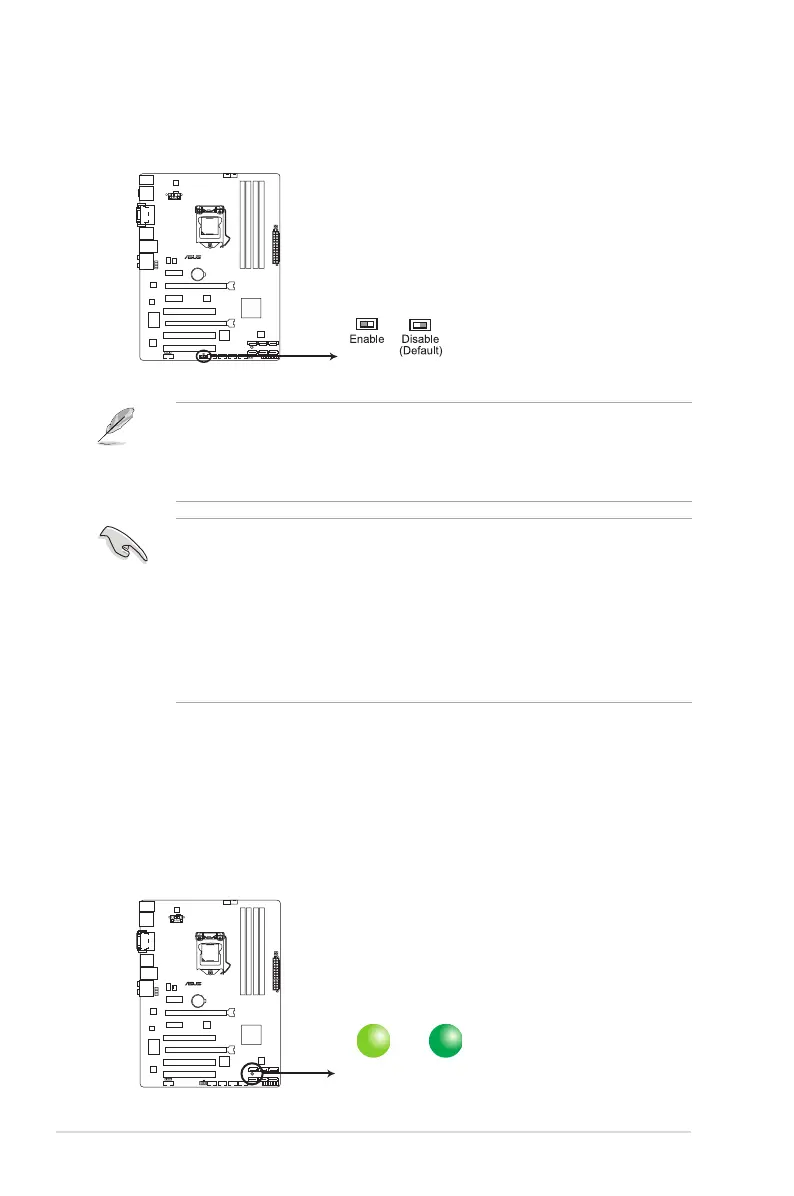

P8Z68-V LX TPU switch
TPU switch
P8Z68-V LX

Asus P8Z68-V LX Specifications

General

Form Factor	ATX
Chipset	Intel Z68
Socket	LGA 1155
Max Memory	32GB
Memory Type	DDR3
Memory Standard	DDR3 2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333/1066
PCI Express x16	1
PCI Express x1	2
PCI Slots	3
SATA 6Gb/s	2
SATA 3Gb/s	4
USB 3.0 Ports	2
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
LAN	Realtek 8111E, 1 x Gigabit LAN Controller(s)
RAID Support	RAID 0, 1, 5, 10
Memory Slots	4
