Asus P9X79 PRO User Manual

2-26 Chapter 2: Hardware information
Chapter 2
2.2.7 Internal connectors

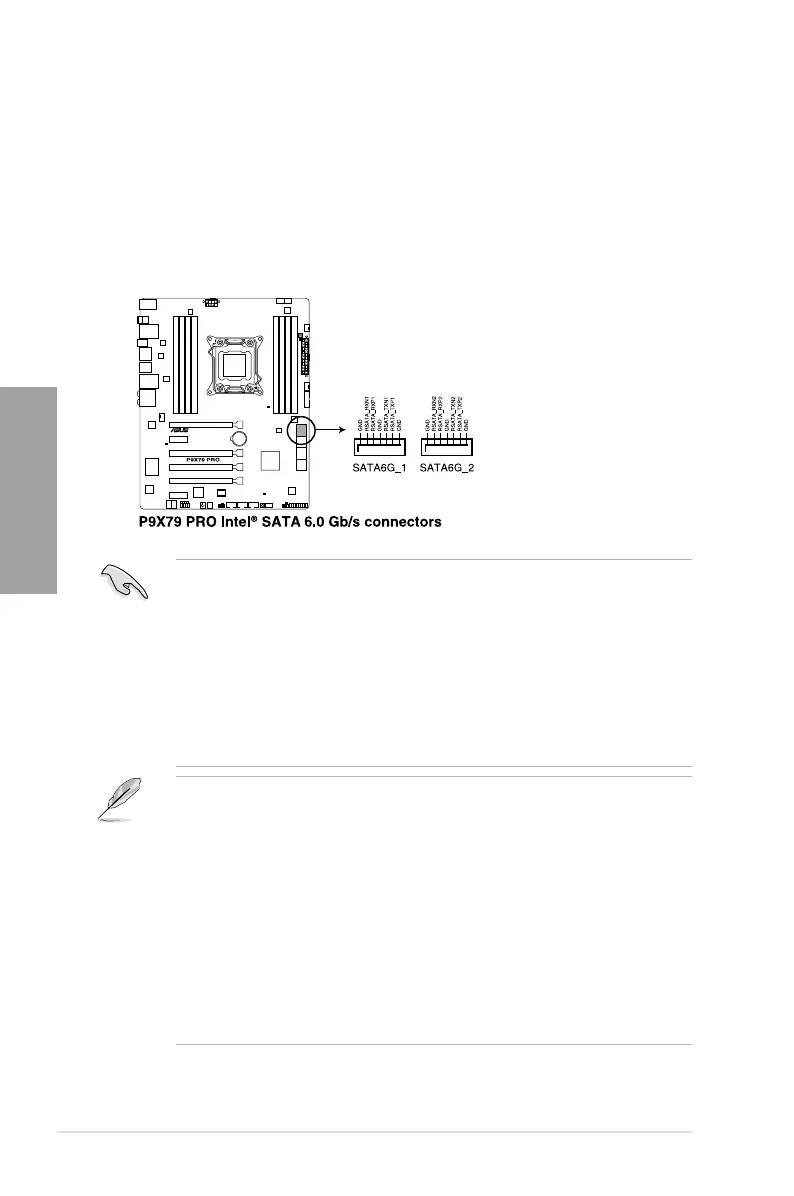

1. Intel
®
X79 Serial ATA 6.0 Gb/s connectors (7-pin SATA6G_1/2 [gray])
These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0
Gb/s signal cables.
If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 10
conguration with the Intel
®
Rapid Storage Technology through the onboard Intel
®
X79
chipset.
• These connectors are set to [AHCI Mode] by default. If you intend to create a Serial
ATA RAID set using these connectors, set the SATA Mode item in the BIOS to [RAID
Mode]. Refer to section 3.5.4 SATA Conguration for details.
• Before creating a RAID set, refer to section 4.4 RAID congurations or the manual
bundled in the motherboard support DVD.
• When using NCQ, set the
SATA Mode
in the BIOS to [AHCI Mode]. Refer to section
3.5.4 SATA Conguration
for details.
• You must install Windows
®
XP Service Pack 3 or later versions before using Serial
ATA hard disk drives. The Serial ATA RAID feature is available only if you are using
Windows
®
XP SP3 or later versions.
IRST driver note for OS installation
•
Windows XP:
32 bit: Intel IRST driver for X79 platform will NOT support Windows XP 32 bit. Please
set to [IDE Mode] for OS installation.
64 bit: When [SATA Mode] is set to [AHCI Mode][RAID Mode], it is necessary to load
IRST Driver from driver disk during OS Windows XP 64 bit installation for the system
to detect the storage devices. For details, please refer to the section "4.5 Create a
RAID driver disk".
•
Windows 7 & Vista:
When [SATA Mode] is set to [RAID Mode], you must load IRST
Driver during Windows 7 or Vista installation for the system to detect the Optical Disk
Drive (the ODD should be connected to the Intel SATA ports), or else the ODD will not
run. We strongly recommend you save the IRST Driver from SCD to the USB Flash
Drive before OS installation.

Asus P9X79 PRO Specifications

General

Non-ECC	Yes
Memory channels	Quad-channel
Number of memory slots	8
Supported memory types	DDR3-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2133, 2400 MHz
Processor socket	LGA 2011 (Socket R)
Processor manufacturer	Intel
Compatible processor series	Intel Core i7, Intel Core i7 Extreme Edition
USB 2.0 connectors	3
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
BIOS type	UEFI
ACPI version	2.0a
BIOS memory size	64 Mbit
eSATA ports quantity	2
USB 2.0 ports quantity	6
Audio chip	Realtek ALC898
Component for	PC
Audio output channels	7.1 channels
Motherboard form factor	ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Cables included	SATA
On-board graphics card	No
Parallel processing technology support	3-Way SLI, Quad-GPU CrossFireX
LAN controller	Intel® 82579V
Bluetooth version	2.1+EDR
Ethernet interface type	Gigabit Ethernet
Controller interface type	SATA 6Gb/s
Controller 2nd interface type	SATA 3Gb/s

Weight and Dimensions

Depth	244 mm
Width	305 mm
