Asus RT-AC3200 User Manual

56

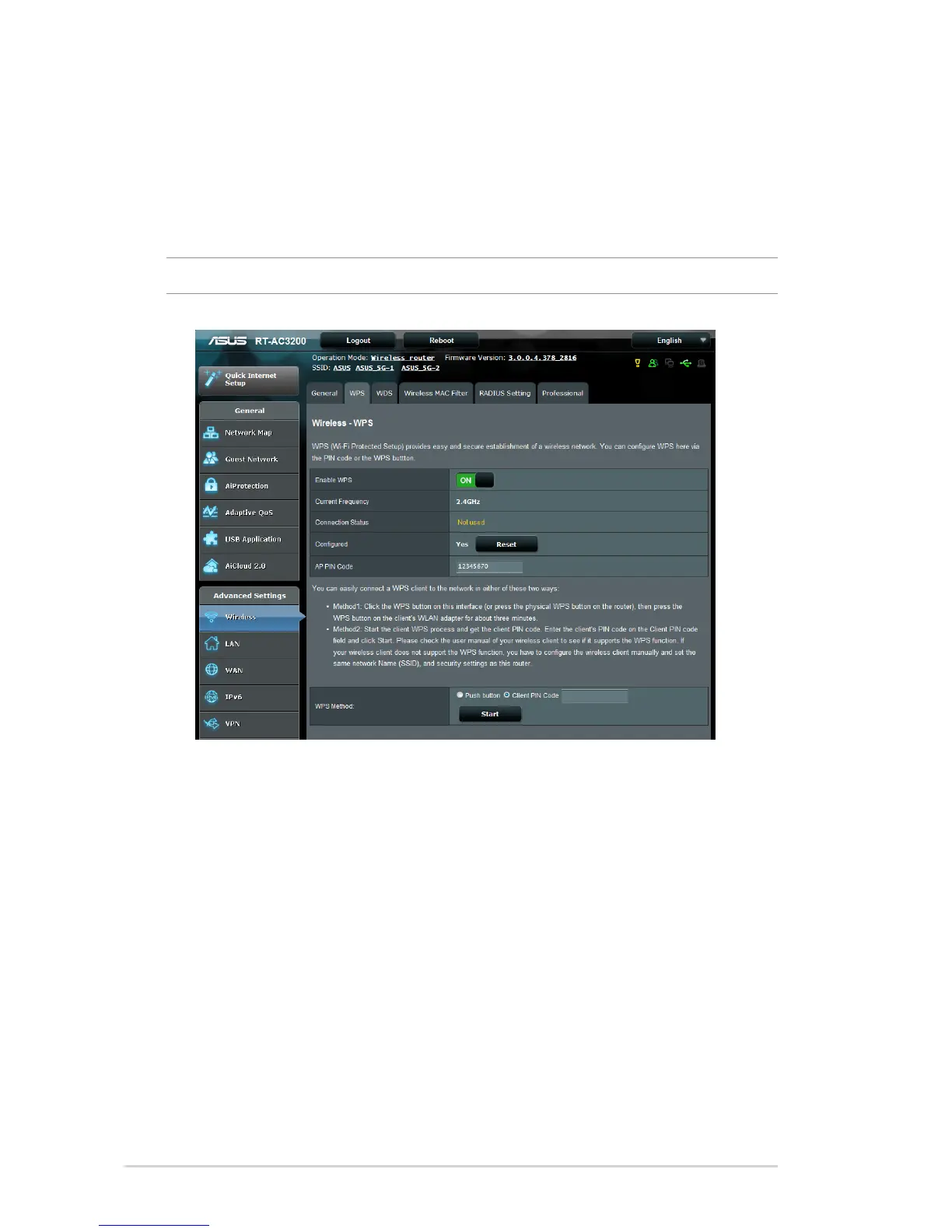

4.1.2 WPS
WPS (Wi-Fi Protected Setup) is a wireless security standard that
allows you to easily connect devices to a wireless network. You
can configure the WPS function via the PIN code or WPS button.
NOTE: Ensure that the devices support WPS.
To enable WPS on your wireless network:
1. From the navigation panel, go to Advanced Settings >
Wireless > WPS tab.
2. In the Enable WPS field, move the slider to ON.
3. WPS uses 2.4GHz by default. If you want to change the
frequency to 5GHz-1 or 5GHz-2, turn OFF the WPS function,
click Switch Frequency in the Current Frequency field, and
turn WPS ON again.

Asus RT-AC3200 Specifications

General

Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
DSL WAN	No
Ethernet WAN	Yes
VPN support	IPSec Pass-Through PPTP Pass-Through L2TP Pass-Through PPTP server OpenVPN server PPTP client L2TP client OpenVPN client
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Memory card slot(s)	-
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	5
Antennas quantity	6
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA-PSK, WPA2-PSK, WPS
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, WAN, WLAN, WPS
Output current	2.37 A
Output voltage	19 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz

Weight and Dimensions

Depth	188 mm
Width	290 mm
Height	58 mm
Weight	1020 g
