Asus RT-AC3200 User Manual

75
4.3.4 Virtual Server/Port Forwarding
Port forwarding is a method to direct network traffic from the
Internet to a specific port or a specific range of ports to a device
or number of devices on your local network. Setting up Port
Forwarding on your router allows PCs outside the network to
access specific services provided by a PC in your network.
NOTE: When port forwarding is enabled, the ASUS router blocks
unsolicited inbound traffic from the Internet and only allows replies
from outbound requests from the LAN. The network client does not
have access to the Internet directly, and vice versa.

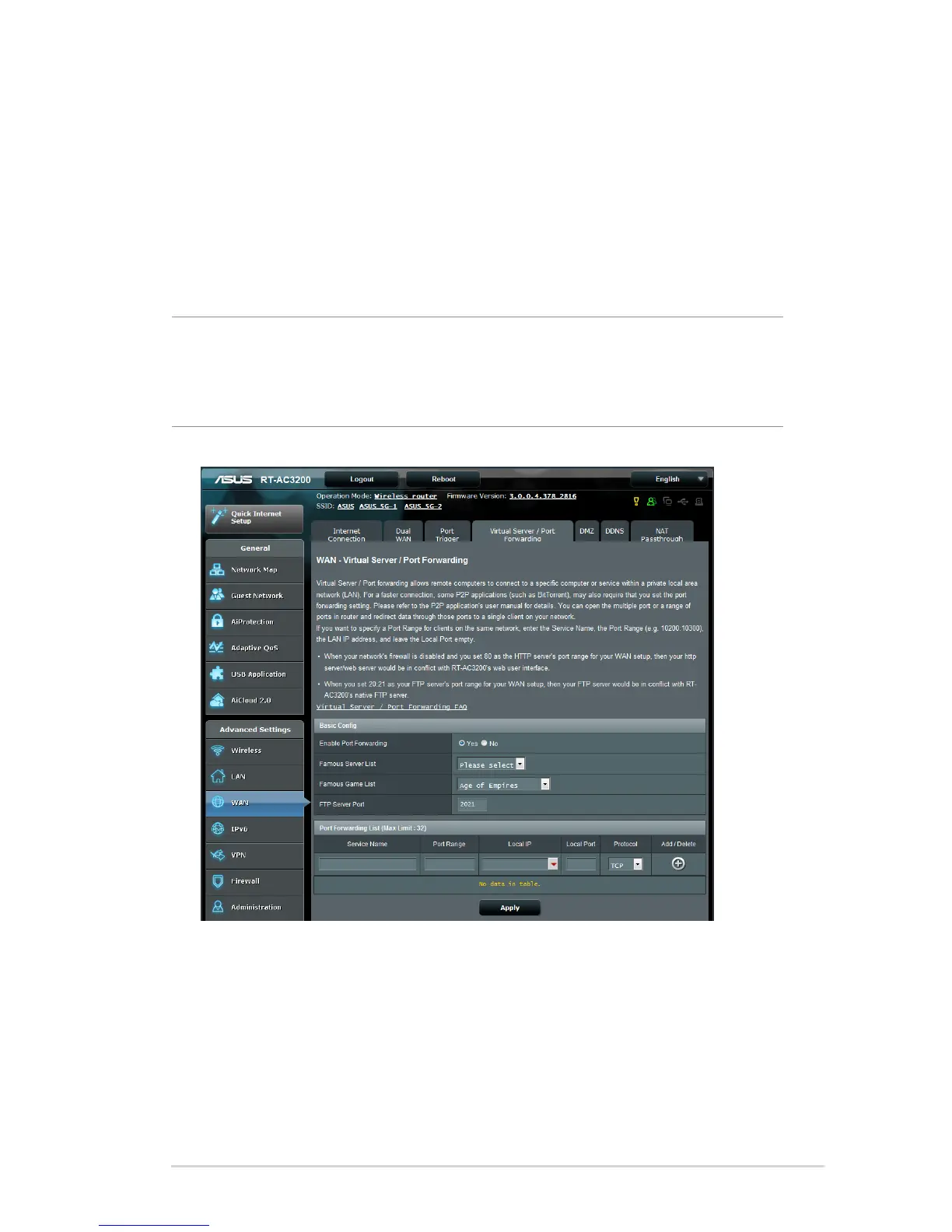

To set up Port Forwarding:
1. From the navigation panel, go to Advanced Settings > WAN
> Virtual Server / Port Forwarding tab.
2. On the Enable Port Forwarding field, tick Yes.

Asus RT-AC3200 Specifications

General

Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
DSL WAN	No
Ethernet WAN	Yes
VPN support	IPSec Pass-Through PPTP Pass-Through L2TP Pass-Through PPTP server OpenVPN server PPTP client L2TP client OpenVPN client
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Memory card slot(s)	-
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	5
Antennas quantity	6
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA-PSK, WPA2-PSK, WPS
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, WAN, WLAN, WPS
Output current	2.37 A
Output voltage	19 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz

Weight and Dimensions

Depth	188 mm
Width	290 mm
Height	58 mm
Weight	1020 g
