Asus RT-AC3200 User Manual

87
4.7 Administration

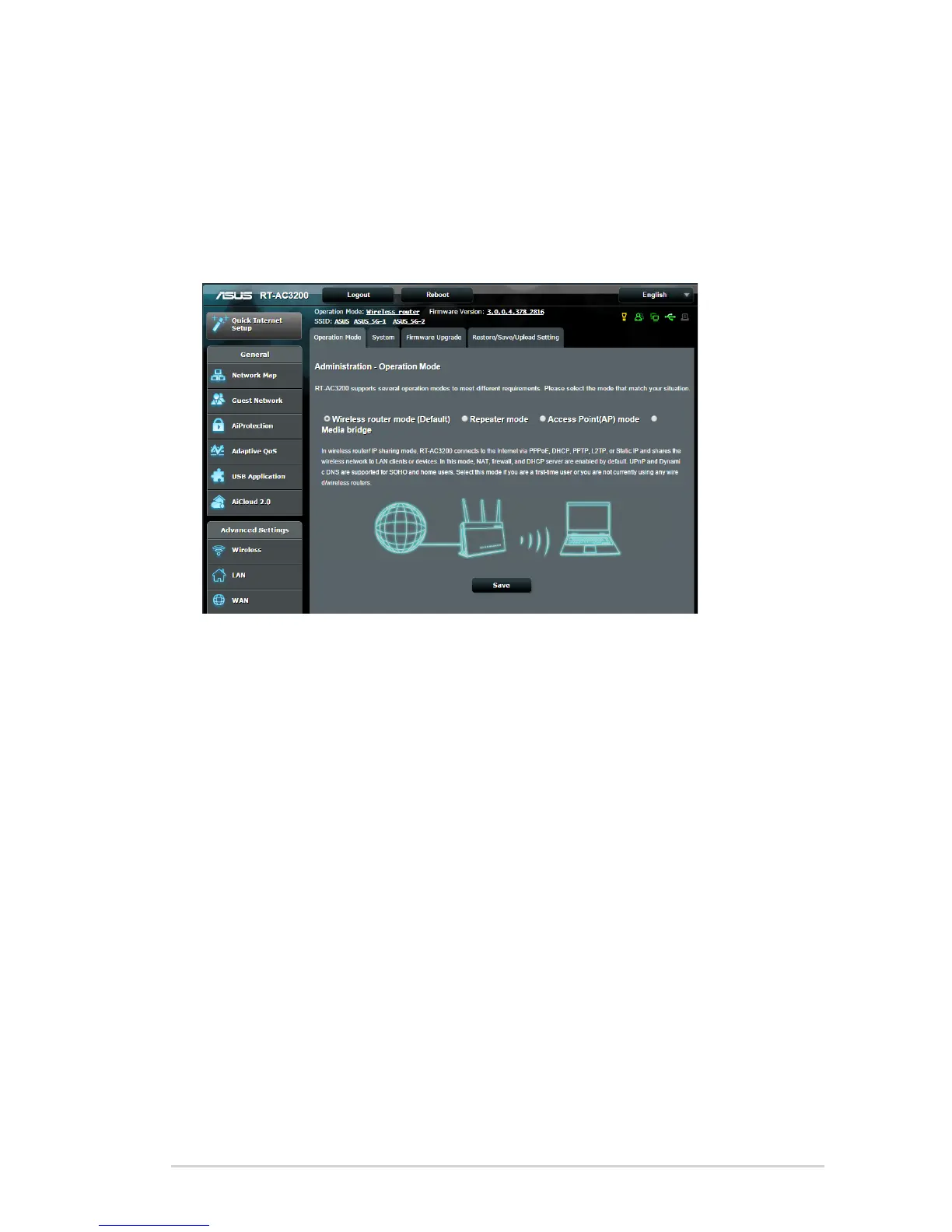

4.7.1 Operation Mode
The Operation Mode page allows you to select the appropriate
mode for your network.
To set up the operating mode:
1. From the navigation panel, go to Advanced Settings >
Administration > Operation Mode tab.
2. Select any of these operation modes:
• Wireless router mode (default): In wireless router mode,
the wireless router connects to the Internet and provides
Internet access to available devices on its own local network.
• Repeater Mode: In Repeater mode, your wireless router
wirelessly connects to an existing wireless network to extend
the wireless coverage. In this mode, the firewall, IP sharing,
and NAT functions are disabled.
• Access Point mode: In this mode, the router creates a new
wireless network on an exising network.

Asus RT-AC3200 Specifications

General

Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
DSL WAN	No
Ethernet WAN	Yes
VPN support	IPSec Pass-Through PPTP Pass-Through L2TP Pass-Through PPTP server OpenVPN server PPTP client L2TP client OpenVPN client
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Memory card slot(s)	-
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	5
Antennas quantity	6
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA-PSK, WPA2-PSK, WPS
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, WAN, WLAN, WPS
Output current	2.37 A
Output voltage	19 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz

Weight and Dimensions

Depth	188 mm
Width	290 mm
Height	58 mm
Weight	1020 g
