Chapter 5: Installing the utilities RT-N12
Firmware Restoration
Firmware Restoration is used on an ASUS Wireless Router that failed during its
rmware upgrading process. It uploads the rmware that you specify. The process
takes about three to four minutes.
To launch the rescue mode and use the Firmware Restoration utility:
1. Unplug the wireless router from the power source.
2. Hold the Restore button at the rear panel and simultaneously re-plug the
wireless router into the power source. Release the Restore button when the
Power LED at the front panel ashes slowly, which indicates that the wireless
router is in the rescue mode.

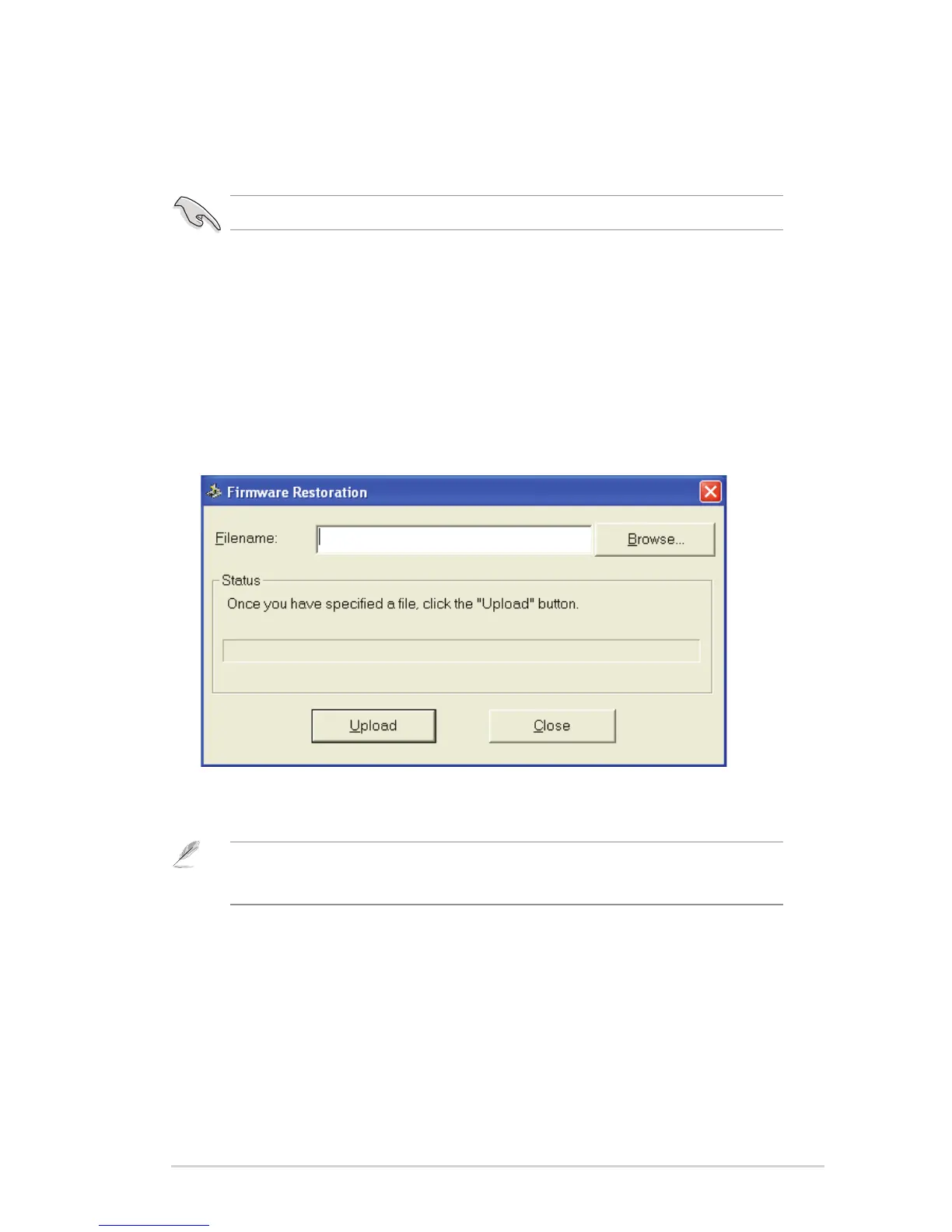

3. From your computer’s desktop, click Start > All Programs > ASUS Utility >
RT-N12 Wireless Router > Firmware Restoration.
Important: Launch the rescue mode before using the Firmware Restoration utility.
Note: This is not a rmware upgrade utility and cannot be used on a working ASUS Wireless
Router. Normal rmware upgrades must be done through the web interface. Refer to
Chapter 4: Conguring via the web GUI for more details.
4. Specify a rmware le, then click Upload.

Asus RT-N12 Specifications

General

Frequency band	2.4 - 2.5 GHz
Channels quantity	13 channels
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Quality of Service (QoS) support	Yes
Wireless standard	IEEE 802.11b, IEEE 802.11g, IEEE802.11n, IEEE 802.11d, IEEE 802.3
Supported data transfer rates	6, 9, 12, 18, 24, 36, 48, 54Mbps / 1, 2, 5.5, 11Mbps
Supported network protocols	B
Ethernet LAN (RJ-45) ports	5
Security algorithms	TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
Bundled software	Device Discovery EZSetup EZ UI
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Power requirements	100-240V, 50/60Hz

Weight and Dimensions

Weight	300 g
Dimensions (WxDxH)	119 x 179 x 37 mm
