Asus RT-N14U User Manual

32
Chapter 3: Network Configuration using the web GUIRT-N14U
3. Online service types, source IP addresses, ports, and protocols
can be added and configured in the QoS rules screen.

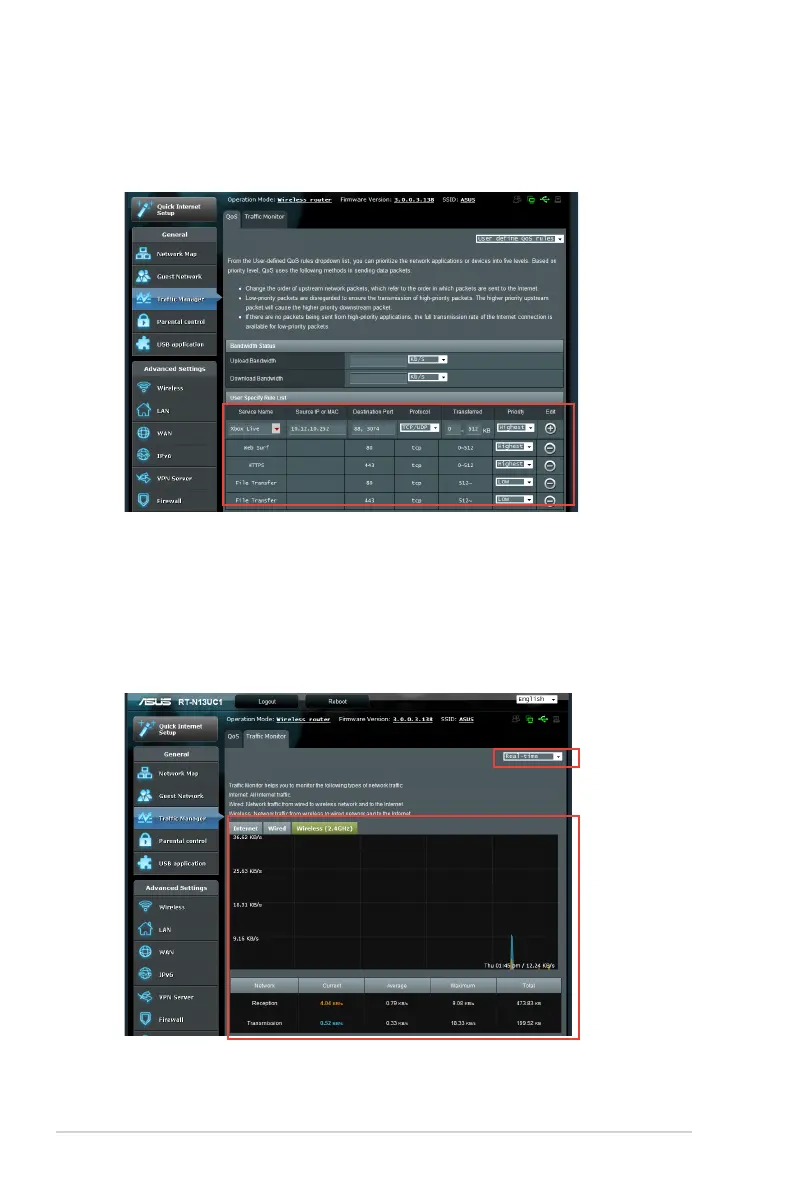

Monitoring Traffic
Click the Traffic Monitor tab to view real-time or historical
bandwidth information of your Internet, Wired, and Wireless
connections.

Asus RT-N14U Specifications

General

VPN support	IPSec Pass-Throuth\\r PPTP Pass-Through\\r L2TP Pass-Through
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
USB version	2.0
Input current	1 A
Rack mounting	-
Frequency band	2.4 GHz
Frequency range	2.4 - 2.4835 GHz
USB ports quantity	1
Minimum system requirements	Windows® 8 , 32bit/64bit\\r Windows® 7 , 32bit/64bit\\r Windows® Vista , 32bit/64bit\\r Windows® XP , 32bit/64bit
WLAN data transfer rates supported	1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54, 300 Mbit/s
Ethernet LAN (RJ-45) ports	5
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
LED indicators	LAN, Power, USB, WLAN

Weight and Dimensions

Depth	145 mm
Width	187 mm
Height	77 mm
Weight	260 g
