Asus TS100-E10-PI4 User Manual

Chapter 2: Hardware Information
2-14
2.6 Hard disk drives (HDD)
Theserversystemsupportsthree(3)3.5-inchSerialATAharddiskdrivesviatheharddisk
drive bays and one 2.5-inch HDD/SSD drive at the bottom of the HDD cage.
Installing 3.5-inch HDDs
Toinstall3.5-inchSerialATAharddiskdrives:
1. Remove the side cover of the chassis. Refer to the Removing the side cover section
for more information.
2. Prepare the 3.5-inch HDD and the bundled set of screws.

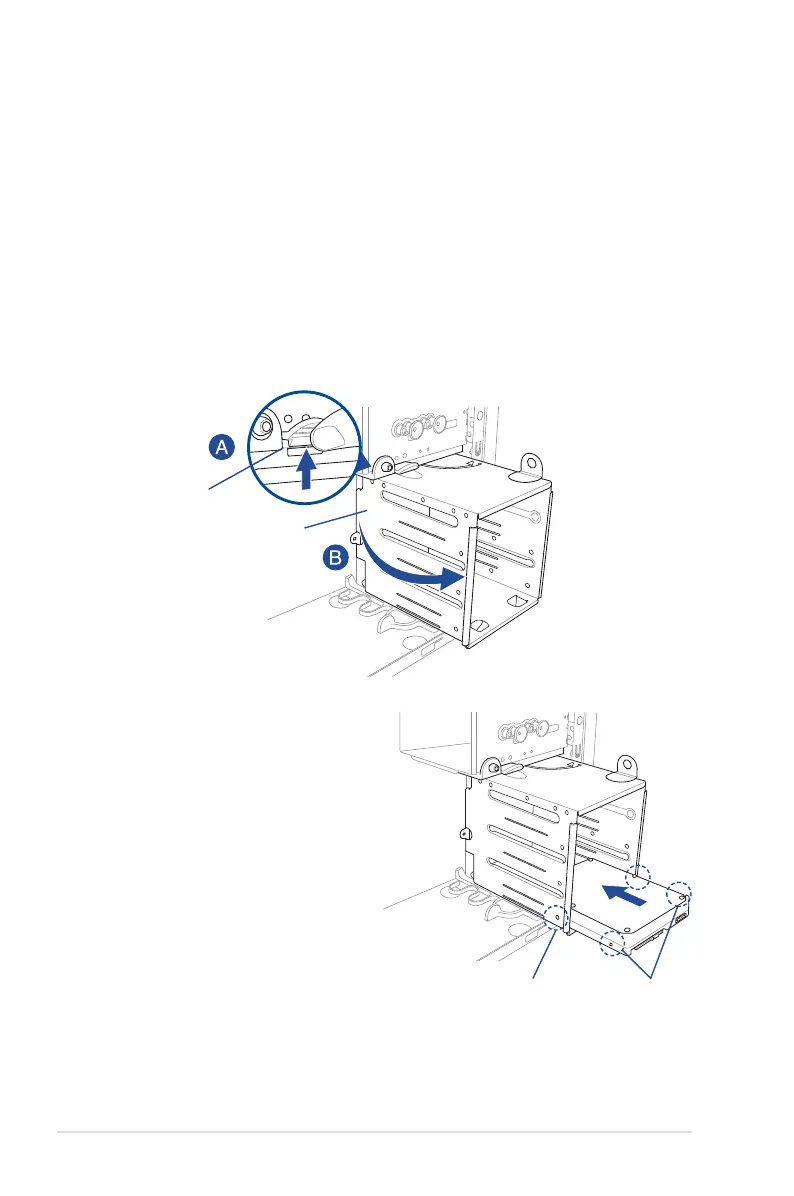

3. LocatetheHDDcagelock,presstheitup(A),thenswingtheHDDcageoutwards(B)
untilitclicksinplace.
4. Align and insert the 3.5-inch HDD into
the drive bay ensuring that the screw
holes on the HDD matches the screw
holes on the HDD cage.
screw holes (HDD)
HDD cage lock
HDD cage
screw hole (HDD cage)

Asus TS100-E10-PI4 Specifications

General

Wi-Fi	No
Ethernet LAN	Yes
LAN controller	Intel I210-AT, Intel I219LM
Audio chip	Realtek ALC887-VD2
Processor socket	LGA 1151 (Socket H4)
Motherboard chipset	Intel C242
Compatible processor series	Intel Celeron, Intel Core i3, Intel Pentium, Intel Xeon
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Maximum internal memory	128 GB
Supported memory clock speeds	2400, 2666 MHz
PCI slots	2
PCI Express x8 slots	1
PCI Express slots version	3.0
Chassis type	Full-Tower
Cooling type	-
Product type	Workstation barebone
Product color	Black, Metallic
LED indicators	HDD, Power, Reset
HDMI ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of SATA III connectors	6
RAID levels	0, 1, 5, 10
Storage drive interface	M.2, PCI Express, Serial ATA
Storage drive sizes supported	2.5, 3.5 \
Supported storage drive types	HDD
On-board graphics card model	Aspeed AST2510
Power supply	500 W
AC input voltage	220 - 240 V
Power supply type	Internal power supply unit
AC input frequency	50 - 60 Hz
AC adapter output current	7 A
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	423 mm
Width	190 mm
Height	435 mm
