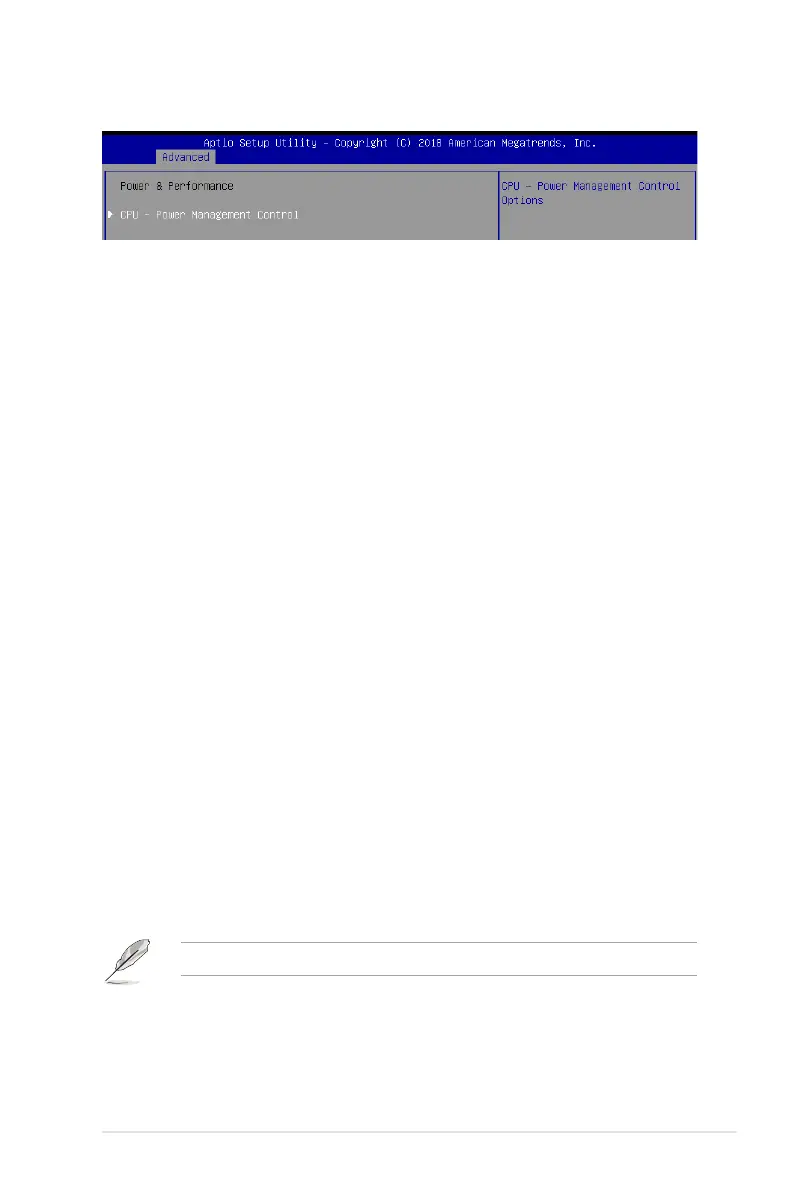

4.4.2 Power & Performance
CPU - Power Management Control
Boot performance mode [Max Non-Turbo Performance]
This item allows you to select the performance state that the BIOS will set starting from reset
vector.
Congurationoptions:[MaxBattery][MaxNon-TurboPerformance][TurboPerformance]
Intel(R) SpeedStep(tm) [Enabled]
Allows more than two frequency ranges to be supported.
Congurationoptions:[Disabled][Enabled]
Race To Halt (RTH) [Enabled]
Allows you to enable or disable Race To Halt feature. RTH will dynamically increase CPU
frequencyinordertoenterpkgC-Statefastertoreduceoverallpower.RTHiscontrolled
through MSR 1FC bit 20.
Congurationoptions:[Disabled][Enabled]
Intel(R) Speed Shift Technology [Disabled]
Allows you to enable or disable Intel(R) Speed Shift Technology support. Enabling will expose
the CPPC v2 interface to allow for hardware controlled P-states.
Congurationoptions:[Disabled][Enabled]
HDC Control [Enabled]
[Disabled] DisableHDC.
[Enabled] CanbeenablebyOSifOSnativesupportavailable.
Turbo Mode [Enabled]
Allows you to enable or disable processor turbo mode if EMTTM is also enabled.
Congurationoptions:[Disabled][Enabled]
C-States [Enabled]
AllowsyoutoenableordisableCPUpowermanagement,thisallowstheCPUtoenterC-state
when not it is not 100 % utilized.
Congurationoptions:[Disabled][Enabled]
The following items appears only when you set C-States to [Enabled].
Enhanced C-States [Enabled]
Allows you to enable or disable C11E. Enable this item to allow the CPU to switch to
minimum speed when all cores enter C-State.
Congurationoptions:[Disabled][Enabled]

Asus TS100-E10-PI4 Specifications

General

Wi-Fi	No
Ethernet LAN	Yes
LAN controller	Intel I210-AT, Intel I219LM
Audio chip	Realtek ALC887-VD2
Processor socket	LGA 1151 (Socket H4)
Motherboard chipset	Intel C242
Compatible processor series	Intel Celeron, Intel Core i3, Intel Pentium, Intel Xeon
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Maximum internal memory	128 GB
Supported memory clock speeds	2400, 2666 MHz
PCI slots	2
PCI Express x8 slots	1
PCI Express slots version	3.0
Chassis type	Full-Tower
Cooling type	-
Product type	Workstation barebone
Product color	Black, Metallic
LED indicators	HDD, Power, Reset
HDMI ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of SATA III connectors	6
RAID levels	0, 1, 5, 10
Storage drive interface	M.2, PCI Express, Serial ATA
Storage drive sizes supported	2.5, 3.5 \
Supported storage drive types	HDD
On-board graphics card model	Aspeed AST2510
Power supply	500 W
AC input voltage	220 - 240 V
Power supply type	Internal power supply unit
AC input frequency	50 - 60 Hz
AC adapter output current	7 A
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	423 mm
Width	190 mm
Height	435 mm
