WL-520GU/GC Broad Range Wireless Family Router User Manual
4
R
WL-520GU
125M High Speed
AIR WAN LAN1 LAN2 LAN3 LAN4
R

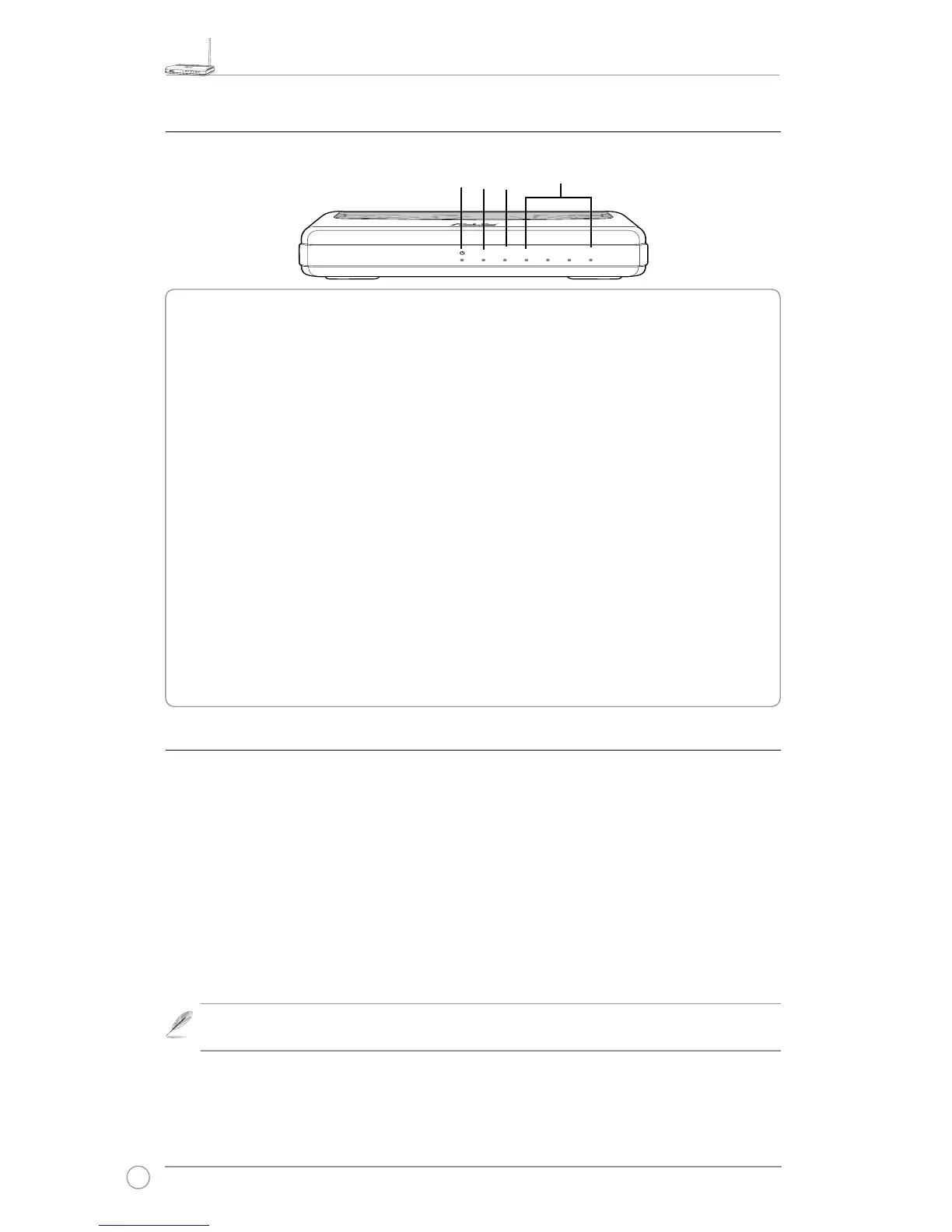

2) Status Indicators
PWR (Power)
Off No power
On System ready
Flashing-slow Firmware upgrade failed/Rescure Mode
Flashing-quick EZsetup processing/Rescure Mode
AIR (Wireless Network)
Off No power
On Wireless system ready/Radio-off
Flashing Transmitting or receiving data (Through Wireless)
WAN (Wide Area Network)
Off No power or no physical connection
On Has physical connection to an Ethernet network
Flashing Transmitting or receiving data (Through Ethernet Cable)
LAN 1-4 (Local Area Network)
Off No power or no physical connection
On Has physical connection to an Ethernet network
Flashing Transmitting or receiving data (Through Ethernet Cable)
3) Wall Mounting Option
Out of the box, ASUS WL-520GU/GC Wireless Router is designed to sit on a raised flat
surface like a le cabinet or book shelf. The unit may also be converted for mounting to a wall
or ceiling.
Follow these steps to mount the ASUS Wireless Router to a wall:
1. Look on the underside for the two mounting hooks.
2. Mark two upper holes in a at surface.
3. Tighten two screws until only 1/4'' is showing.
4. Latch the hooks of the ASUS Wireless Router onto the screws
.
Note:
Re-adjust the screws if you cannot latch the ASUS Wireless Router onto the
screws or if it is too loose.
PWR
AIR
WAN
LAN
