Asus X510 Series User Manual

Disassembly Procedure
V1.0
2 - 25

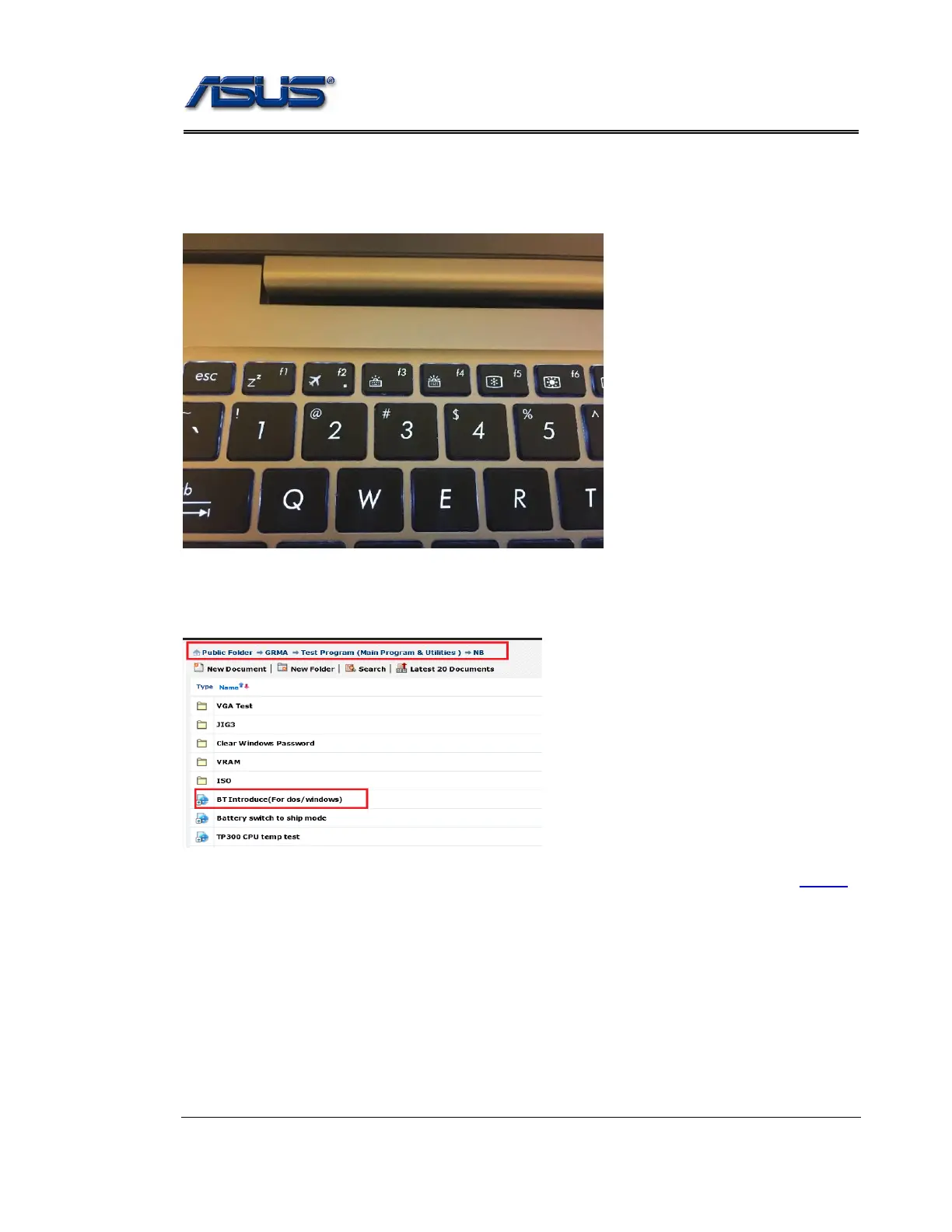

Notice: If the machine is with backlight K/B, after change the mainboard, please pay attention
for below instructions.
1. How to judge with backlight K/B?
Please check KB whether with backlight if F3/F4 can adjust brightness.
2. How to enable backlight?
Please refer to instructions from SIP to enable K/B backlight. SIP path is as below.
http://sip.asus.com/document/DisplayDocument.aspx?folder_type=PUB&doc_id=97003
BACK

Asus X510 Series Specifications

General

Display	15.6-inch, HD (1366x768) or Full HD (1920x1080)
RAM	DDR4
Storage	500GB/1TB HDD or 128GB/256GB SSD
Graphics	NVIDIA GeForce MX130
Operating System	Windows 10 Home
Weight	1.7 kg
Ports	1 x Type-C USB 3.0, 1 x USB 3.0 port(s) Type A, 2 x USB 2.0 port(s), 1 x HDMI, 1 x SD card reader
Wireless	Wi-Fi 802.11ac, Bluetooth
Audio	built-in speakers, microphone
Power Adapter	45W
Processor	Intel Core i3/i5/i7
