Asus X510 Series User Manual

Disassembly Procedure
V1.0
2 - 9
HDD Module

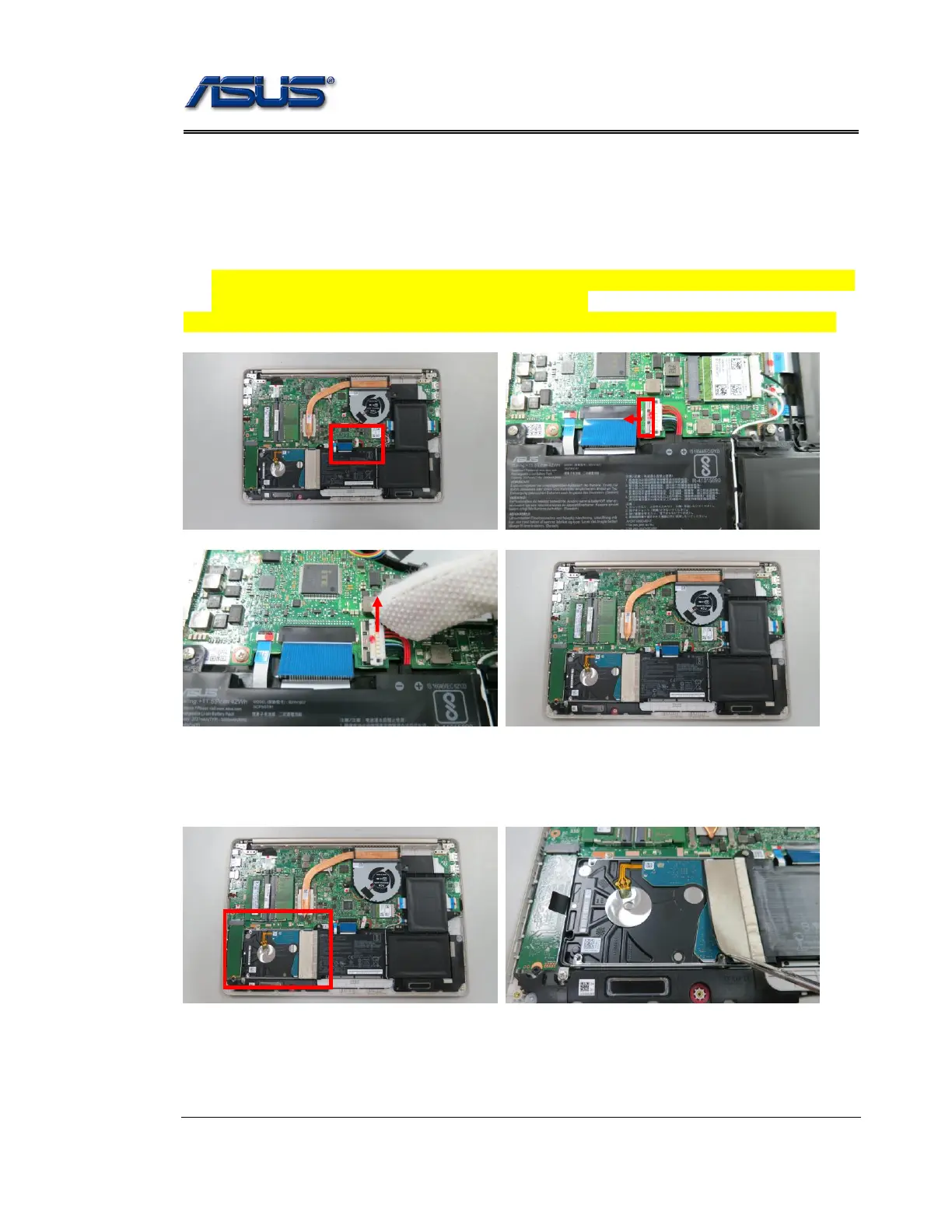

The illustrations below show how to remove the HDD from the notebook.
Remove HDD Module
1. Disconnect the battery cable.
Notice: Before disassembly, please be sure to pull out adapter and disconnect the battery
more than ten seconds in order to avoid IC damage.
Disconnect the battery cable by hand instead of using a tweezer , in order to avoid short circult.
2. Tear up the mylar and follow below numbers to remove 4 screws and take HDD module away.
Assembly Notice: follow the reverse numbers to lock screws.
Screw tightening torque: [1-2]2.0±0.25kgf-cm, [3-4]2.0±0.25kgf-cm

Asus X510 Series Specifications

General

Display	15.6-inch, HD (1366x768) or Full HD (1920x1080)
RAM	DDR4
Storage	500GB/1TB HDD or 128GB/256GB SSD
Graphics	NVIDIA GeForce MX130
Operating System	Windows 10 Home
Weight	1.7 kg
Ports	1 x Type-C USB 3.0, 1 x USB 3.0 port(s) Type A, 2 x USB 2.0 port(s), 1 x HDMI, 1 x SD card reader
Wireless	Wi-Fi 802.11ac, Bluetooth
Audio	built-in speakers, microphone
Power Adapter	45W
Processor	Intel Core i3/i5/i7
