Disassembly Procedure
V1.0
2 - 31

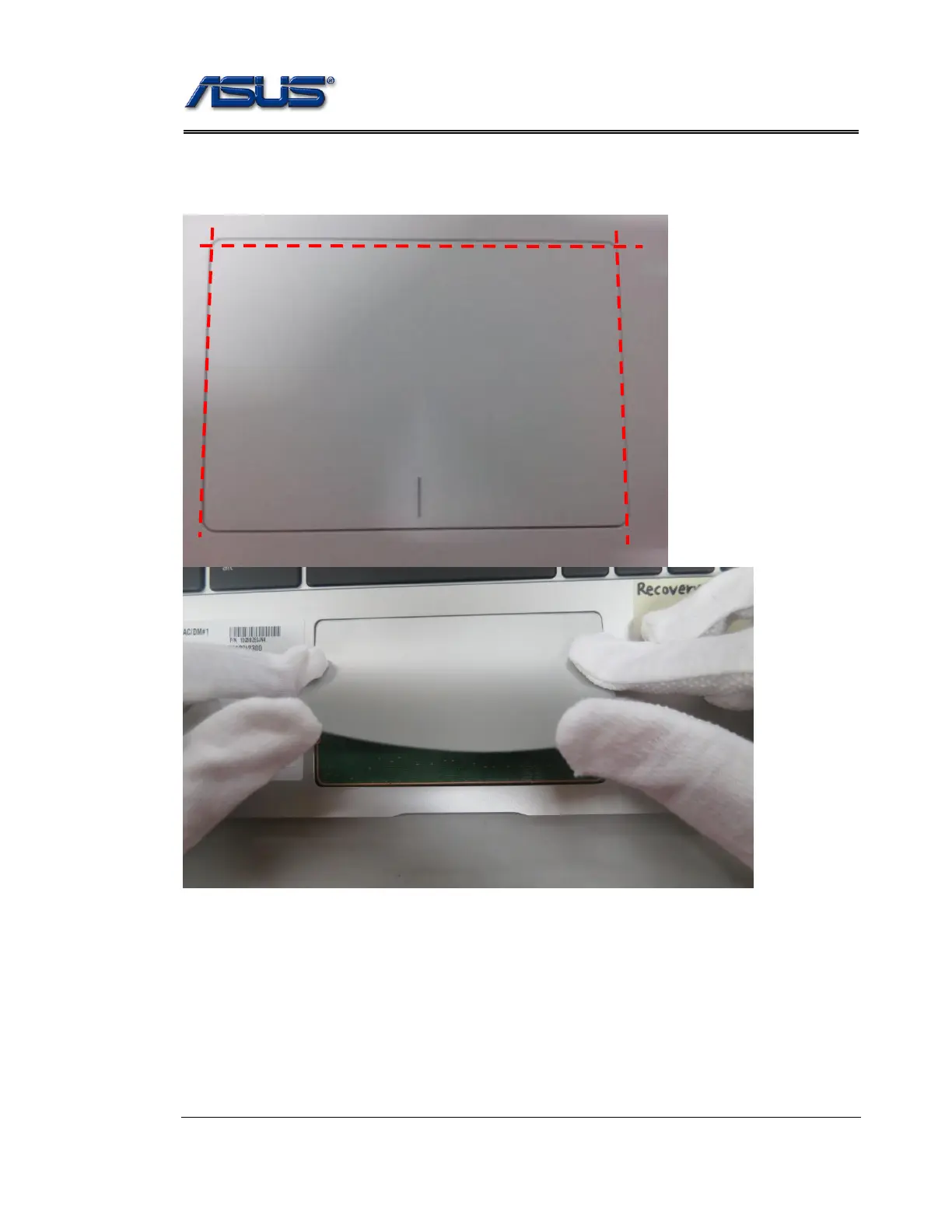

2. Paste 1 TP Mylar on the TP PCB.
Notice: Red line marked place is the anchor point. Please align the upper
left corner and upper edge when you paste

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Asus X510 Series and is the answer not in the manual?

Asus X510 Series Specifications

General IconGeneral
Display15.6-inch, HD (1366x768) or Full HD (1920x1080)
RAMDDR4
Storage500GB/1TB HDD or 128GB/256GB SSD
GraphicsNVIDIA GeForce MX130
Operating SystemWindows 10 Home
Weight1.7 kg
Ports1 x Type-C USB 3.0, 1 x USB 3.0 port(s) Type A, 2 x USB 2.0 port(s), 1 x HDMI, 1 x SD card reader
WirelessWi-Fi 802.11ac, Bluetooth
Audiobuilt-in speakers, microphone
Power Adapter45W
ProcessorIntel Core i3/i5/i7
