2.7 Monitor menu

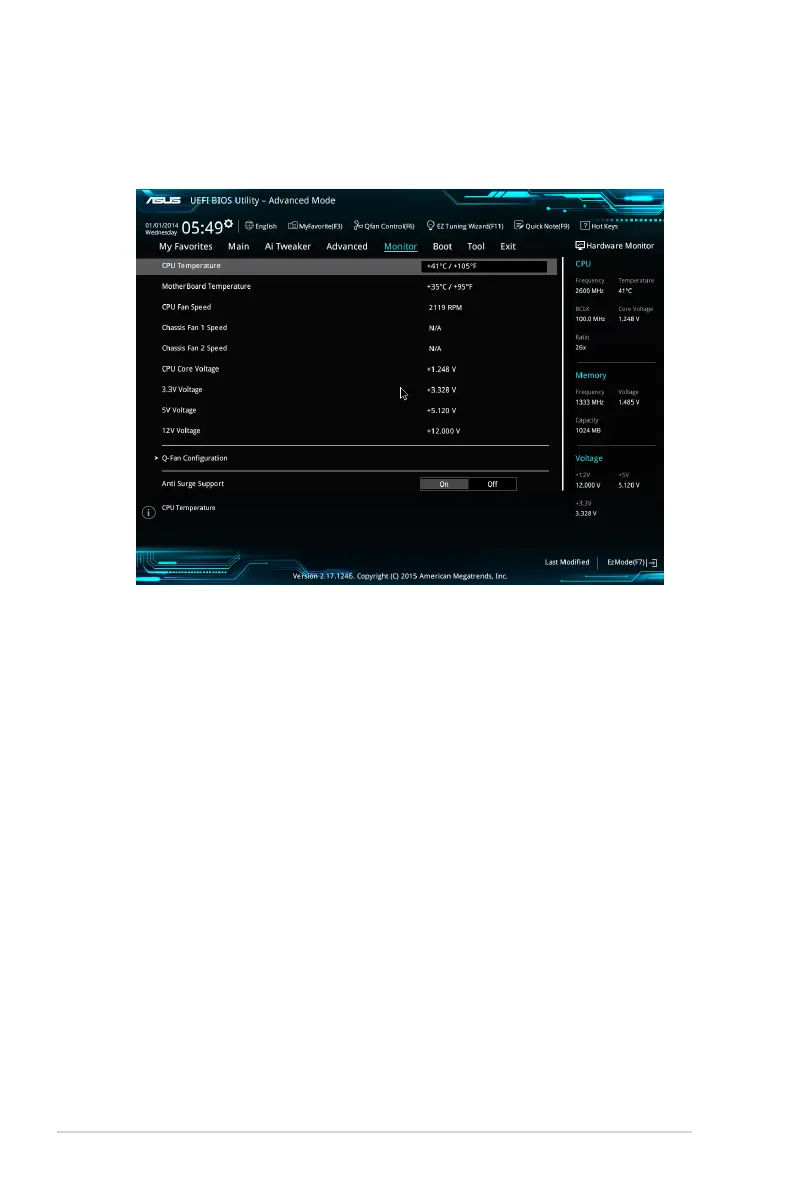

The Monitor menu displays the system temperature/power status, and allows you to change
the fan settings.
Scroll down to display the other BIOS items.
2.7.1 CPU/ MotherBoard Temperature [xxxºC/xxxºF]/
[Ignore]
The onboard hardware monitor automatically detects and displays the CPU and motherboard
temperatures. Select [Ignore] if you do not wish to display the detected temperatures.
2.7.2 CPU Fan/ Chassis Fan 1/2 Speed [xxxx RPM]/ [Ignore]/
[N/A]
The onboard hardware monitor automatically detects and displays the CPU and chassis fan
1/2 speeds in rotations per minute (RPM). If the fan is not connected to the motherboard, the
eld shows N/A. Select [Ignore] if you do not wish to display the detected speed.
2.7.3 CPU Core Voltage, 3.3V Voltage, 5V Voltage, 12V
Voltage
The onboard hardware monitor automatically detects the voltage output through the onboard
voltage regulators. Select [Ignore] if you do not want to detect this item.
2.7.4 Q-Fan Configuration
The subitems in this menu allows you to congure the Q-Fan features.
Qfan Tuning
Click this item to automatically detect the lowest speed and congure the minimum duty cycle
for each fan.
2-36 Chapter 2: Getting started
